You’ve probably used one hundreds of times without giving it a second thought. That horizontal bar on the inside of an exit door that you push to get out? That’s a panic bar. While it might seem like just another piece of door hardware, it’s actually a critical safety device designed to save lives during an emergency.
This guide will explain what a panic bar is, how it works, and why it’s a non-negotiable feature for many public and commercial buildings. Understanding its function is key to ensuring your building is not only safe but also compliant with fire codes and safety regulations. We'll cover the different types available and help you determine if your property needs one.
A panic bar, also known as an exit device or crash bar, is a mechanism installed on an exit door that allows it to be opened quickly and easily from the inside. Instead of a traditional doorknob or handle that requires turning, a panic bar unlatches the door when pressure is applied to it. This simple push-to-open function is designed for fast and intuitive use, especially in high-stress situations like a fire, where a large number of people may need to evacuate simultaneously.
The core purpose of a panic bar is to prevent "crowd crush"—a dangerous situation where people become trapped against a door they cannot open during a panicked rush. By providing a wide, easy-to-operate bar, it ensures that even in a chaotic and crowded scenario, the door will open and provide a clear path to safety.
These devices are a mandatory requirement in many commercial, industrial, and public buildings as part of fire safety and building codes. Their installation is governed by regulations from organizations like the National Fire Protection Association (NFPA) and the International Building Code (IBC).
The genius of the panic bar lies in its simplicity. On the interior side of the door, a horizontal bar spans most of the door's width. When a person pushes against this bar, it triggers an internal mechanism that retracts the latch or bolt securing the door to its frame. This action allows the door to swing open outward, providing an immediate exit.
The mechanism is designed to operate with minimal force, ensuring that anyone, including children, the elderly, or individuals with disabilities, can open the door without difficulty. The exterior side of the door typically remains locked to unauthorized entry, maintaining the building's security while ensuring free egress from the inside. This is why you'll often see these doors marked "Emergency Exit Only" or "Push to Open."
While all panic bars serve the same primary function, they come in different designs to suit various types of doors and security needs. The main types you'll encounter are the touch bar, cross bar, and integral styles, each with different latching mechanisms.
This is the most common and basic type of panic bar. The latching mechanism is surface-mounted on the interior side of the door and latches onto a strike plate mounted on the door frame (the jamb). Rim devices are straightforward to install on single doors or the active leaf of a pair of double doors and are known for their durability and reliability.
For a more secure and aesthetically pleasing option, the Mortise Panic Bar is a popular choice. In this design, the latching mechanism is mortised—or recessed—into a pocket on the edge of the door, similar to a standard mortise lock. When the bar is pushed, it retracts the mortise latch from the strike plate in the door frame.
A Mortise Panic Bar offers enhanced security because the lock is integrated into the door itself, making it more resistant to forced entry. This style is often used in locations where both high security and rapid egress are priorities, such as schools, hospitals, and high-value retail stores.

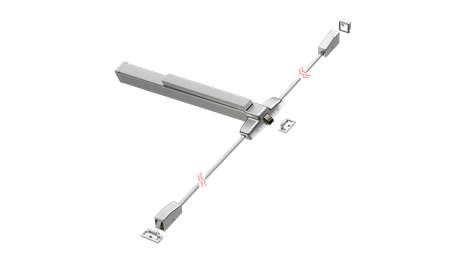

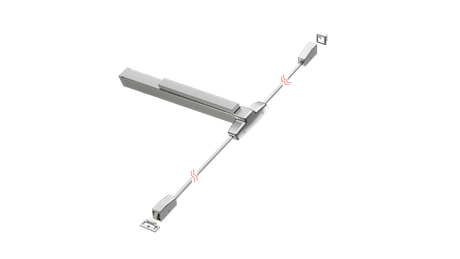

Vertical rod devices are used for double doors where there is no central mullion (the vertical post between the two doors). These bars feature rods that run vertically up and down the door's surface or are concealed within it. When the bar is pushed, the rods retract bolts from the top (header) and bottom (threshold) of the door frame, allowing both doors to open.
· Surface Vertical Rod (SVR): The rods are visible and mounted on the face of the door. They are easier to install and maintain.
· Concealed Vertical Rod (CVR): The rods are hidden inside the door, offering a cleaner look. However, they can be more complex to install and service.
Building codes, primarily those set by the NFPA 101 Life Safety Code and the IBC, dictate where panic hardware is mandatory. While specific requirements can vary by jurisdiction, the general rules are based on the building's use (occupancy type) and the number of people it can hold (occupant load).
A panic bar is generally required on exit doors in the following types of buildings, especially when the occupant load exceeds a certain threshold (often 50 or 100 people):
· Educational Facilities: Schools, universities, and daycare centers.
· Assembly Areas: Theaters, auditoriums, stadiums, restaurants, and nightclubs.
· High-Hazard Occupancies: Buildings where flammable or hazardous materials are stored or used.
· Mercantile and Business Occupancies: Large retail stores and office buildings with high occupant loads.
The key principle is that if a large group of people might need to exit quickly in an emergency, the doors in their path must be equipped with panic hardware to prevent delays and potential tragedy.
Understanding what a panic bar is and its importance is the first step toward ensuring your building is safe, secure, and compliant. These devices are more than just door openers; they are life-saving mechanisms engineered to perform flawlessly when every second counts. From the standard rim device to the more secure Mortise Panic Bar, choosing the right hardware depends on your building’s specific needs, door type, and security requirements.
If you are unsure whether your building requires panic bars or need assistance selecting and installing the correct hardware, consulting with a professional locksmith or a fire safety expert is always the best course of action. They can help you navigate local building codes and ensure your property provides a safe escape route for everyone inside.
