| Series | ● M500 Series |
| Standard | ● EN 12209, EN1634-1, DIN 18251 |
| Content | ● Mortise Lock x 1, Strike Plate x 1, Screws Bag x 1, Dust Box x 1 |
| Certification | ● Fire Test: Steel Fire Door 260mins Timber Fire Door: 30 / 60 / 90 / 120mins ● CE (EN 12209): 3 X 9 1 0 G 3 B C 2 0 ● UKCA (EN 12209): 3 X 9 1 0 G 3 B C 2 0 |

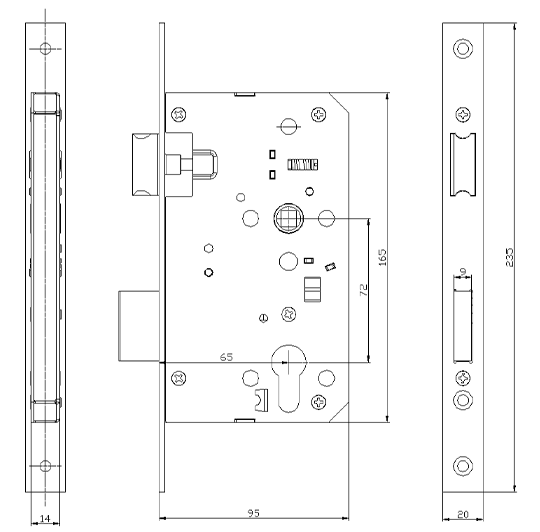

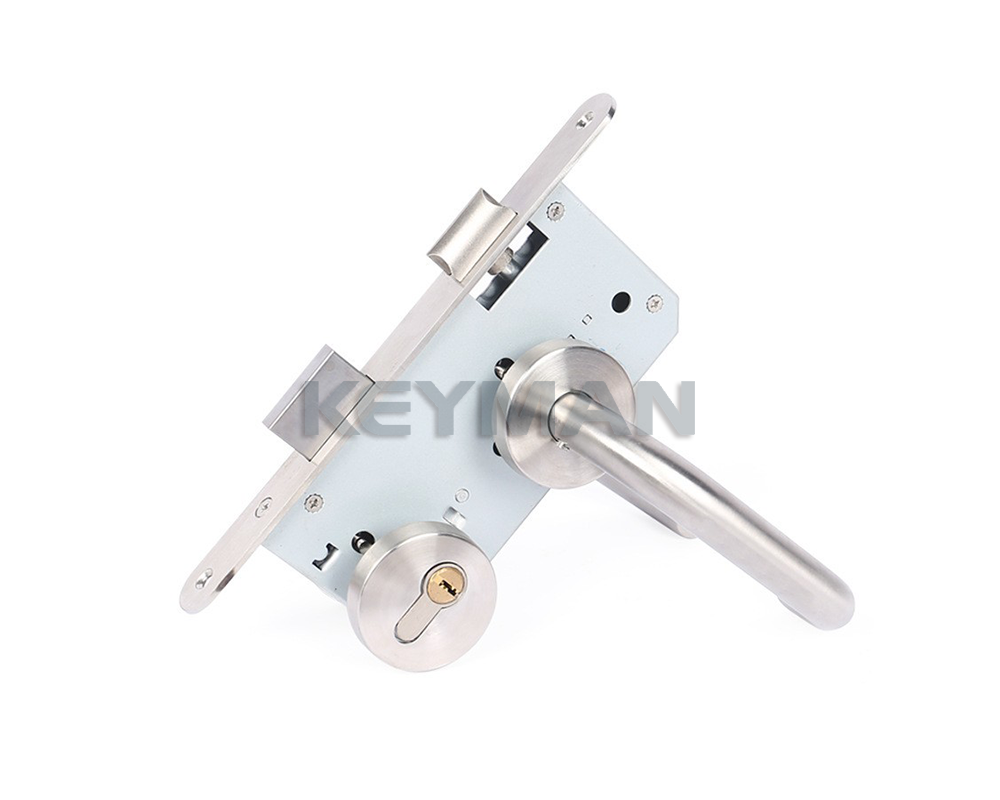

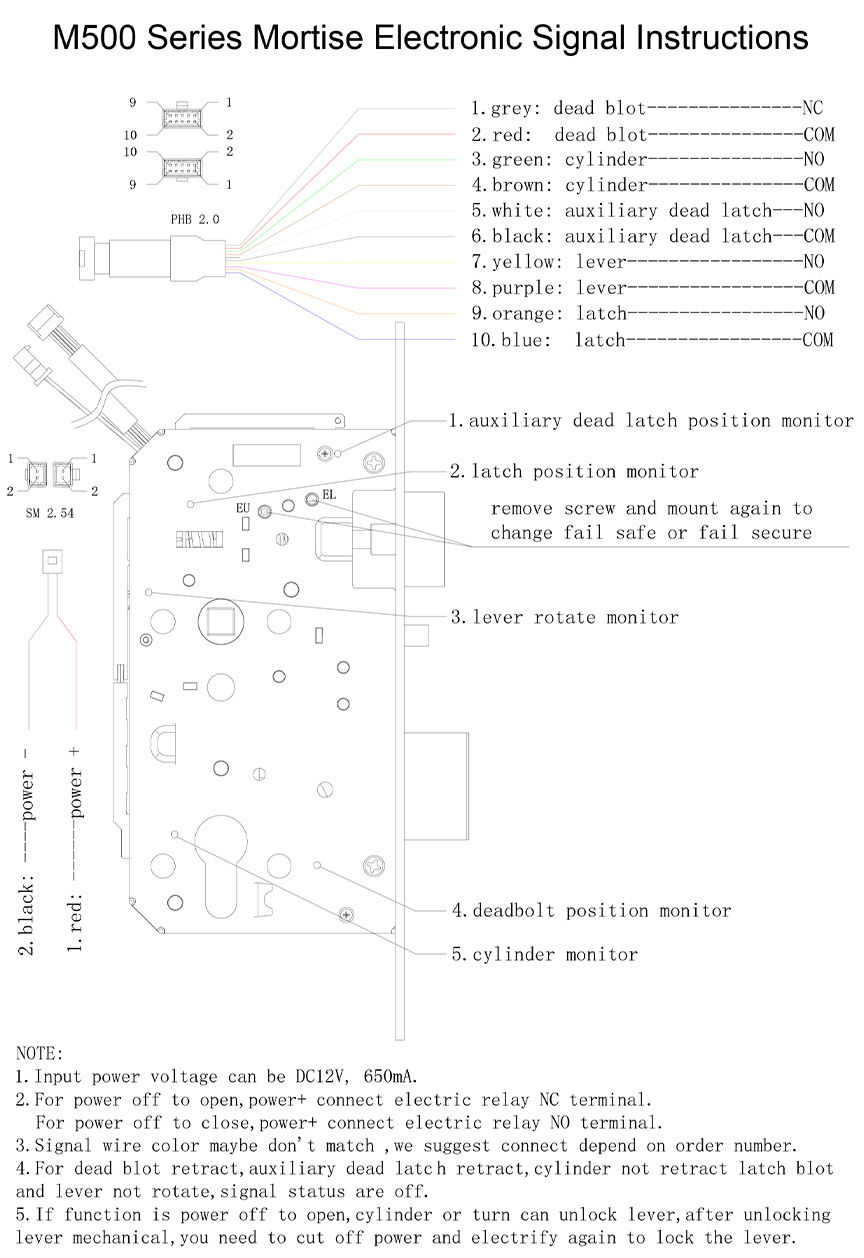

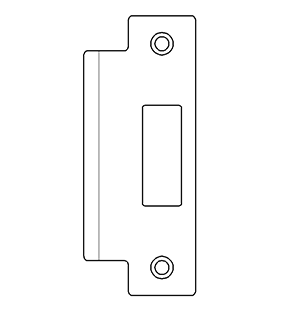

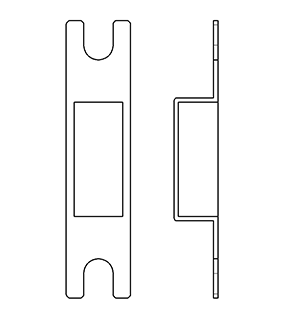

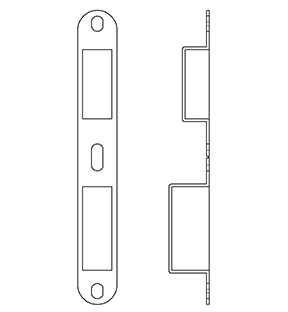

| Major Parts | ● Forend: SS304, height 235mm, width: 20 / 24mm, thickness 3mm ● Latch: SS304 ● Deadbolt: SS304, 2 step throw, projection 20mm ● Follower: Steel (Stanadrd) / Powder Metallurgy (Panic Exit types), square hole: 8 x 8mm ● Strike Plate: SS304, thickness 1.5mm ● Case: Galvanized Sheet, thickness 1.5mm |
| KEYMAN NO. | Function | Function Description | |
 | M501 | Passage | ● Euro Mortice with Latchbolt only. ● Unlock by lever either side. |
 | M502 | Privacy | ● Euro Mortice with Latchbolt & Deadbolt and two 8x8mm follower. ● Latchbolt retracted by lever either side. ● Deadbolt operated by thumbturn or outside emgency release. ● No Panic Exit. |
 | M505 | Classroom | ● Euro Mortice with Latchbolt & Auxiliary Latch. ● Inside Panic Exit. Press inside lever can always retract lathbolt and open door. ● Outside locked by key. Once unlocked by key from outisde, key and outside lever can retract latchbolt and open door. ● Auxliary dead latch. |
 | M507 | Storeroom | ● Euro Mortice with Latchbolt & Auxiliary Latch. ● Inside Panic Exit. Press inside lever can always retract lathbolt and open door. ● Outside lever rigid. Outside key retract latchbolt and push / pull lever to open door. ● Auxliary dead latch. |
 | M508 | Entrance Sash Lock | ● Euro Mortice with Latchbolt & Deadbolt. ● Latchbolt retracted by lever either side. ● Deadbolt operated by cylinder. ● No Panic Exit. |
 | M512 | Emgerncy | ● Euro Mortice with Latchbolt & Deadbolt. ● Latchbolt retracted by lever either side. ● Deadbolt operated by cylinder. ● Inside Panic Exit. When locked, Inside lever always can retract latchbolt and deadbolt. |
 | M515 | Hotel | ● Euro Mortice with Latchbolt, Deadbolt and Auxiliary Latch. ● Latchbolt retracted by lever either side. ● Deadbolt operated by cylinder. ● Inside Panic Exit. When locked, Inside lever always can retract latchbolt and deadbolt. ● Auxliary dead latch. |
 | M517 | Deadlock | ● Euro Mortice with Deadbolt only. ● Deadbolt operated by cylinder. |
| Name | Picture | Dimensional Line Draft Diagram |

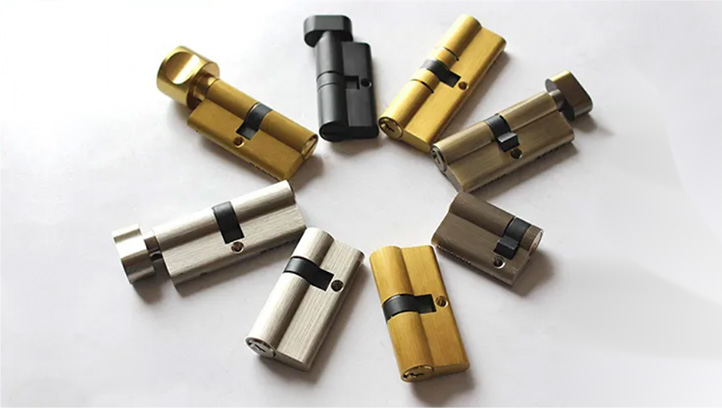

| Half Cylinder |  |  |
| Double Cylinder |  |  |
| Single Cylinder |  |  |
| Privacy Cylinder |  |  |
 C：Cylinder |  B : Privacy |
 G : Passage |  D : Dummy |
 NL : Storeroom |  PA : Emengercy |
 CR : Classroom |  RL : Roller |
 LA400 |  L4600 |  L4500 |
 LA300 |  LA500 |  LB300 |
 LA500 |  LC400 |  L1100 |

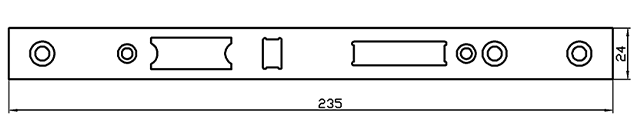

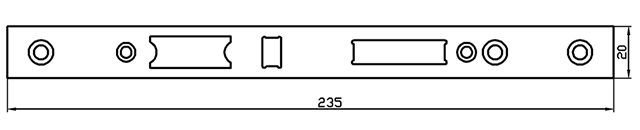

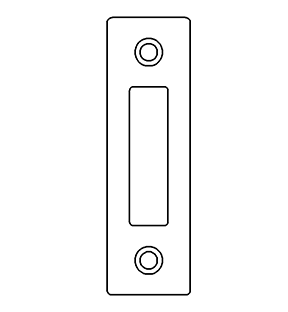

 20 wide square corner faceplae |

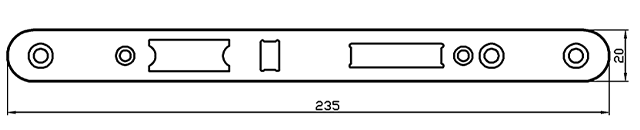

 20 wide rounded corners faceplae |

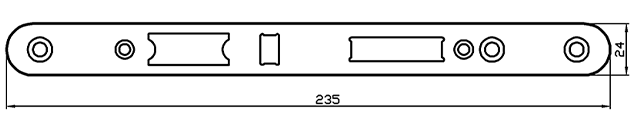

 24 wide square corner faceplae |
 24 wide rounded corners faceplae |

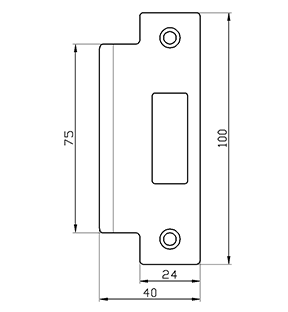

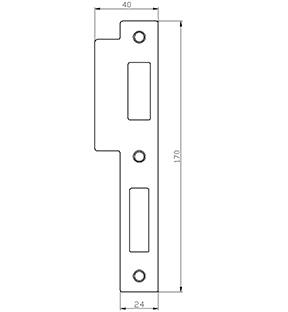

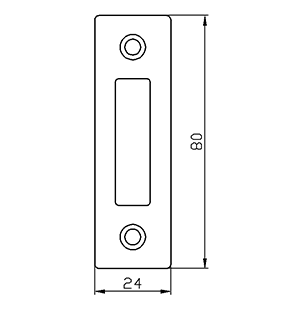

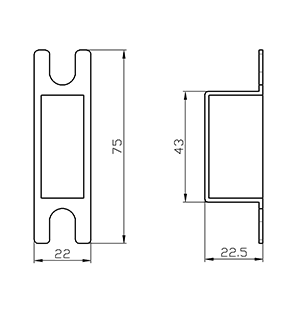

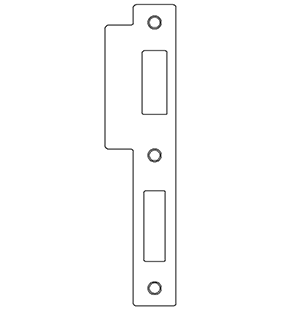

| M500-32 | M500-53 | M500-119 |
 |  |  |
 |  |  |

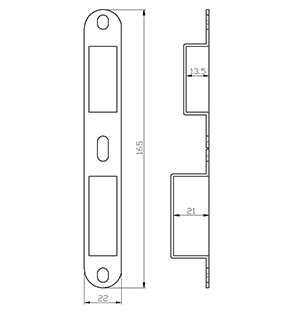

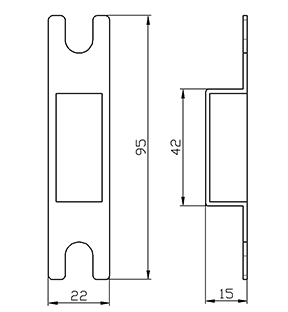

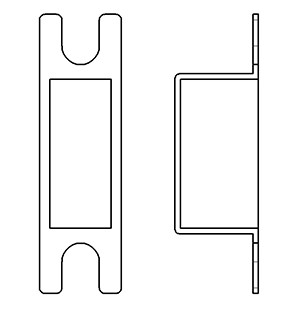

| 50-20 | 50-33 | 50-54 |
 |  |  |
 |  |  |
