Selonoid Mortise Lock

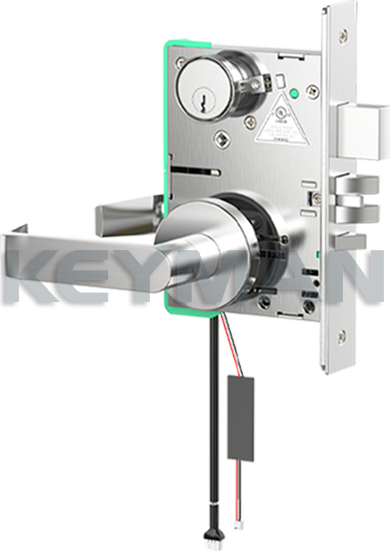

Electrified Solenoid Mortise Lock(12/24 adjustable)
✔ Universal imput voltage-accepts 12 or 24V Dc for installation flexibility
✔ User selectable fail safe / fail secure - changing
✔ Low maximum current draw- allows multiple lock on a single power supply
✔ Low holding current - produces minimal heat, eliminating "hot levers" in electrically locking applications and allowing reliable operation even in wood doors.
✔ All-new switch monitors the inside lever with enhances detection level that balances security with lever sensitivity
Fail Safe/Fail Secure
Electrified Solenoid Mortise Lock

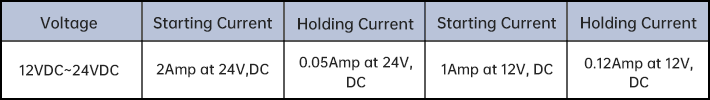

Operating Temp ：
Max.151°F(66°C) Min. -31°F(-35°C)
All monitoring switches rated at: 2 Amp @ 30 VDC
3 Amp @ 125 VAC
Electric Mortise Lock
Selonoid Mortise Lock

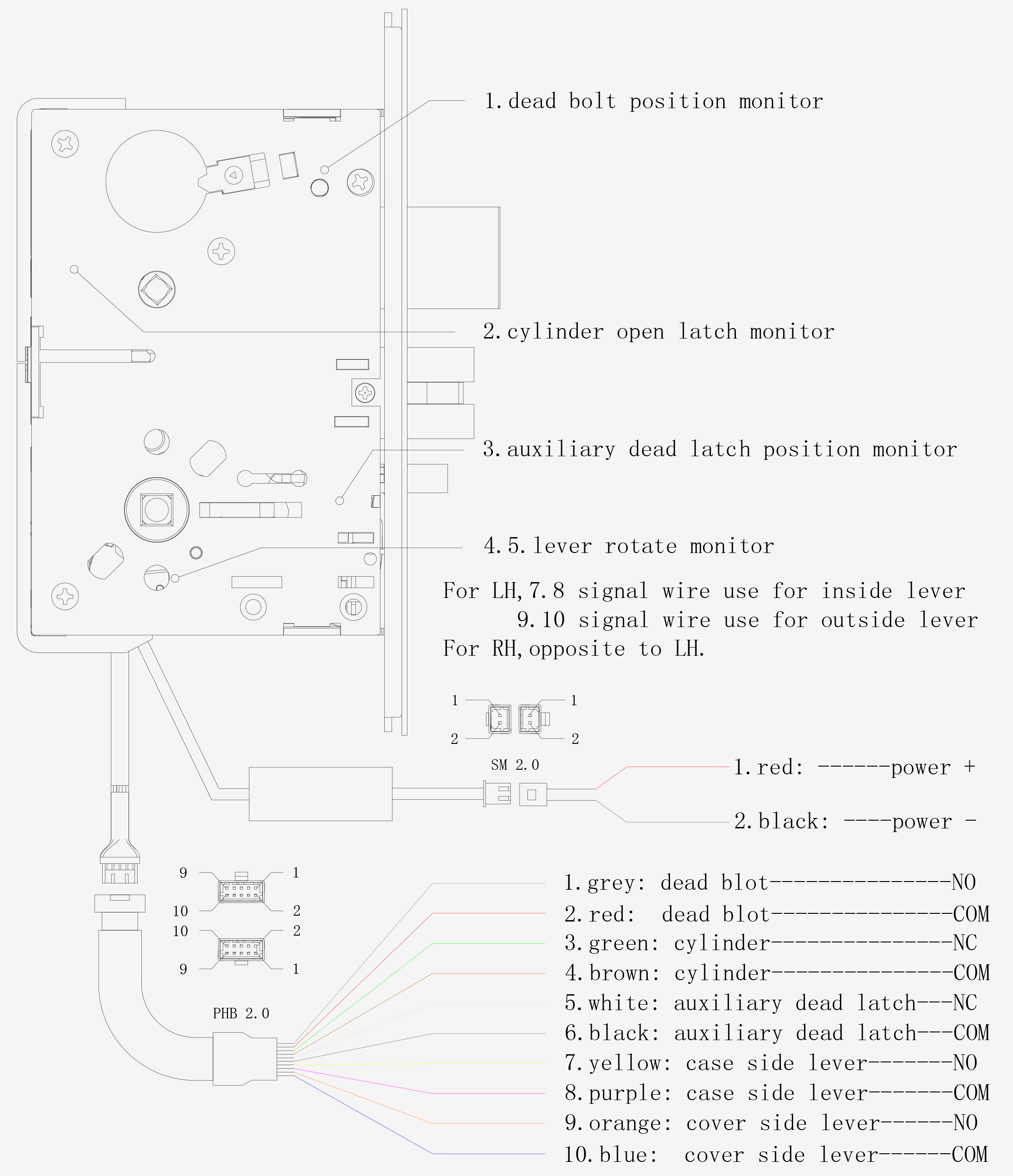

M700 Series Mortise Electronic Signal Instructions
✔ 1. Input power voltage can be DCl2V or DC24V 士 0.8V.
✔ 2. For power off to open,power+ connect electric relay NC terminal.
        For power off to close,power+ connect electric relay N0 terminal.
✔ 3. Signal wire color maybe don't match ,we suggest connect depend on order number.
✔ 4. For dead blot retract, auxiliary dead latch retract, cylinder not retract latch blot
and lever not rotate,signal status are off.
✔ 5. If function is power off to open, cylinder or turn can unlock lever, after unlocking lever mechanical,you need to cut off power and electrify again to lock the lever.

KEYMAN American Standard DC12V to 24V Electrified Solenoid Mortise Lock

Function
  • Without Deadbolt
    FAIL SAFE FAIL SECURE
    M780
    ● Power off – outside lever active
    		 M781
    ● Power off – outside lever locked
    ● Power on – outside lever locked
    ● Power on – outside lever active
    ● Auxiliary latch deadlocks latchbolt
    ● Auxiliary latch deadlocks latchbolt
    ● Inside lever always free
    ● Inside lever always free
    ● No key override
    ● No key override
    M790
    ● Power off – outside lever active
    		 M791
    ● Power off – outside lever locked
    ● Power on – outside lever locked
    ● Power on – outside lever active
    ● Auxiliary latch deadlocks latchbolt
    ● Auxiliary latch deadlocks latchbolt
    ● Inside lever always free
    ● Inside lever always free
    ● Mechanical key override by outside when locked
    ● Mechanical key override by outside when locked
    M782
    ● Power off – both levers active
    		 M783
    ● Power off – both levers locked
    ● Power on – both levers locked
    ● Power on – both levers active
    ● Auxiliary latch deadlocks latchbolt
    ● Auxiliary latch deadlocks latchbolt
    ● No key override
    ● No key override
    M792
    ● Power off – both levers active
    		 M793
    ● Power off – both levers active
    ● Power on – both levers locked
    ● Power on – both levers locked
    ● Auxiliary latch deadlocks latchbolt
    ● Auxiliary latch deadlocks latchbolt
    ● Mechanical key override by outside when locked
    ● Mechanical key override by outside when locked
    M7D0
    ● Power off – outside lever active
    		 M7D1
    ● Power off – outside lever locked
    ● Power on – outside lever locked
    ● Power on – outside lever active
    ● Auxiliary latch deadlocks latchbolt
    ● Auxiliary latch deadlocks latchbolt
    ● Inside lever always free
    ● Inside lever always free
    ● Lock open oblique tongue
    ● Lock open oblique tongue
    M7D2
    ● Power off – both levers active
    		 M7D3
    ● Power off – both levers locked
    ● Power on – both levers locked
    ● Power on – both levers active
    ● Auxiliary latch deadlocks latchbolt
    ● Auxiliary latch deadlocks latchbolt
    ● Lock open oblique tongue
    ● Lock open oblique tongue
  • With Deadbolt
    FAIL SAFE FAIL SECURE
    M7G0
    ● Power off – outside lever active
    		 M7G1
    ● Power off – outside lever locked
    ● Power on – outside lever locked
    ● Power on – outside lever active
    ● The safety tongue plays the role of anti-insertion and door state feedback
    ● The safety tongue plays the role of anti-insertion and door state feedback
    ● Inside lever always free
    ● Inside lever always free
    M7G2
    ● Power off – both levers active
    		 M7G3
    ● Power off – both levers locked
    ● Power on – both levers locked
    ● Power on – both levers active
    ● The safety tongue plays the role of anti-insertion and door state feedback
    ● The safety tongue plays the role of anti-insertion and door state feedback
    ● Inside lever always free
    ● Inside lever always free
Cylinder
  • Cylinder

    RIM Cylinder
    Mortise Cylinder
    SFIC Cylinder

    Thumbturn Cylinder
  • Cylinder Length
    lllustration Face
    Length
    (29mm) (32mm) (35mm) (38mm) (41mm) (45mm)
    Full-face
    Standard    		 FC729A FC732A FC735A FC738A FC741A FC745A
    Full-face
    l/C Core    		 N/A FCC32G FCC35G FCC38G N/A N/A
  • Cylinder Cam
    FC2-0003 Lock Head Puller N FC2-0004 Lock Head Puller R M700-062 Lock Head Puller H
    M700-065 Lock Head Puller A M700-093Lock Head Puller C M700-102 Lock Head Puller D
  • Cylinder Collar

    M780075 Lock Ring
    M780191 Lock Ring Component
Trim
  • Trim
    L0100 L0300 L0400 L0600
    L0800 L0900 L1500 L1900
    L2000 L2100 L3300 L3700
    L3800

  • Faceplae

            图片1-1                              图片2-1

    Square Corner               R4 Radius Corner


    Square Corner R4 Radius Corner Description
    1-1/4″
    (32mm)
    width
    1-1/4″
    (32mm)
    width
    M700-164 M700-164-R4
    Latch × Aux. Latch × Deadbolt× Switch
    M700-164 M700-164-R4
    Latch × Aux. Latch × Switch
    M700-165 M700-165-R4
    Latch × Deadbolt × Switch
    M700-166 M700-166-R4
    Latch × Aux. Latch × Deadbolt
    M700-169 M700-169-R4
    Latch × Aux. Latch
    M700-168 M700-168-R4
    Latch × Deadbolt
    M700-170 M700-170-R4
    Latch
    M700-171 M700-171-R4
    Deadbolt


    M720 M712 M715 M704 M719 M705
    Applicable Functions:
    M780; M720    		 Applicable Functions:
    M712    		 Applicable Functions:
    M710; M715    		 Applicable Functions:
    M704A    		 Applicable Functions:
    M713; M714; M719    		 Applicable Functions:
    M704; M705; M706;
    M707;  M709
  • Strike
    M400 M702 M707 M710
  • Strike Box
    M700-064
Thumbturn
Patch
Download
Solenoid Mortise Lock
Exit Devices Catalogue
Download
Electrified Solenoid Mortise Lock
Heavy Duty Latch Spec
Download
Electrified Solenoid Mortise Lock
IC Mortise Cylinder New
Download
Solenoid Mortise Lock
KEYMAN Commercial Catalogue 2016
Download
Electrified Solenoid Mortise Lock
M7 info 2021.5.27
Download
Solenoid Mortise Lock
M500 Function Introduction Table of Contents
Download
Electric Mortise Lock
Exit Device X8、X9
Download
