Mortor Mortise Lock

Electrified Motor Mortise Lock (3-6V)

 Simple installation is possible on any type of door, including those with narrow frames. Body and escutcheon made of steel.
 Available with mechanical cylinder cut outs for key override or access lock outs (override Mortise cylinders).
 The lock can always be opened from the inside (single action panic feature works in conjunction with the keyman M700 series mortise lock).
 Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.
Bluetooth and wifi availalbe, real time access control.
Weatherproof – Operating Temperature: -31°F (-35°C) to +130°F (66°C)
Power bank Backup Option
cylinder optional

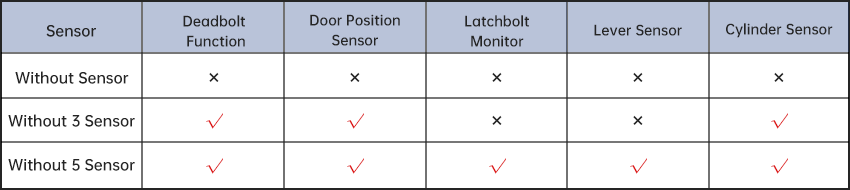

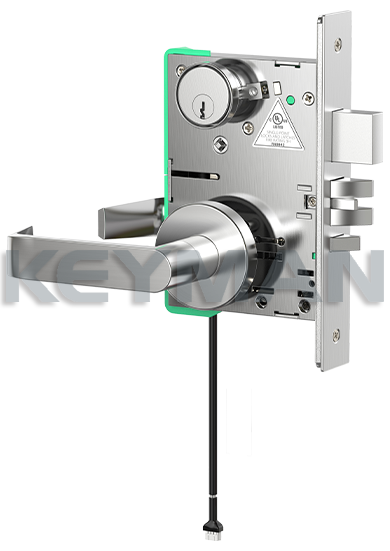

KEYMAN Electrified American Motor Mortise Lockset With Sensors

Cylinder

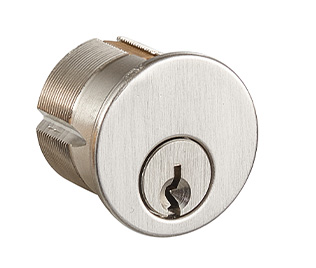

  • Mortise Cylinder

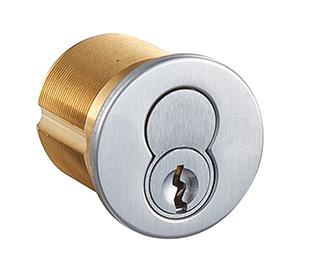

    SFIC Cylinder

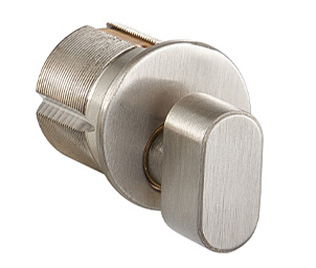

    Thumbturn Cylinder
  • lllustration Face
    Length
    (29mm) (32mm) (35mm) (38mm) (41mm) (45mm)
    Full-face
    Standard
    FC729A FC732A FC735A FC738A FC741A FC745A
    Full-face
    l/C Core
    N/A FCC32G FCC35G FCC38G N/A N/A
  • FC2-0003 Lock Head Puller N FC2-0004 Lock Head Puller R M700-062 Lock Head Puller H
    M700-065 Lock Head Puller A M700-093Lock Head Puller C M700-102 Lock Head Puller D

  • M780075 Lock Ring

    M780191 Lock Ring Component

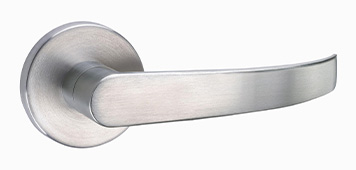

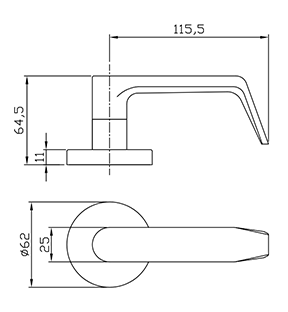

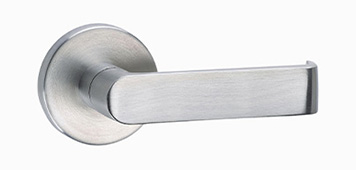

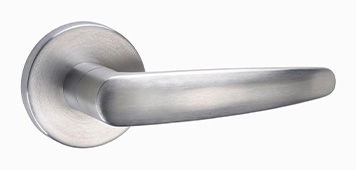

Trim

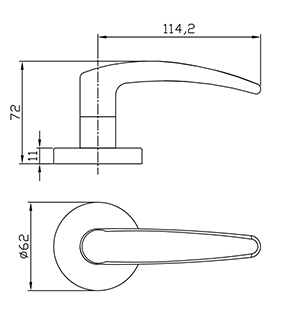

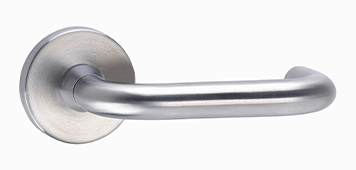

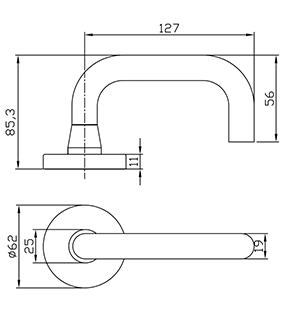

  • L0100 L0300 L0400 L0600
    L0800 L0900 L1500 L1900
    L2000 L2100 L3300 L3700
    L3800

  •

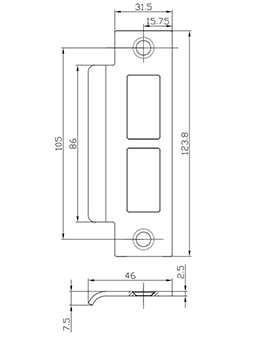

            图片1-1                              图片2-1

    Square Corner               R4 Radius Corner


    Square Corner R4 Radius Corner Description
    1-1/4″
    (32mm)
    width
    1-1/4″
    (32mm)
    width
    M700-164 M700-164-R4
    Latch × Aux. Latch × Deadbolt× Switch
    M700-164 M700-164-R4
    Latch × Aux. Latch × Switch
    M700-165 M700-165-R4
    Latch × Deadbolt × Switch
    M700-166 M700-166-R4
    Latch × Aux. Latch × Deadbolt
    M700-169 M700-169-R4
    Latch × Aux. Latch
    M700-168 M700-168-R4
    Latch × Deadbolt
    M700-170 M700-170-R4
    Latch
    M700-171 M700-171-R4
    Deadbolt


    M720 M712 M715 M704 M719 M705
    Applicable Functions:
    M780; M720
    Applicable Functions:
    M712
    Applicable Functions:
    M710; M715
    Applicable Functions:
    M704A
    Applicable Functions:
    M713; M714; M719
    Applicable Functions:
    M704; M705; M706;
    M707;  M709

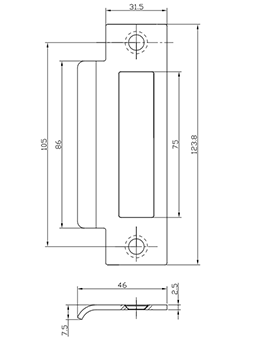

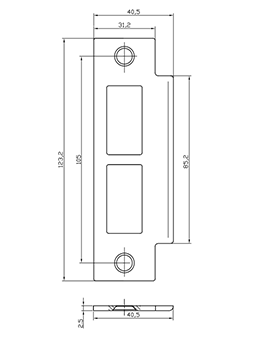

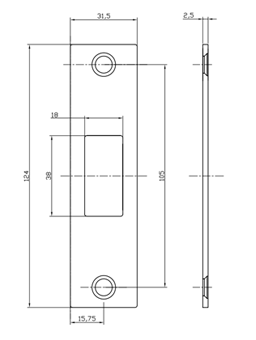

  • M400 M702 M707 M710

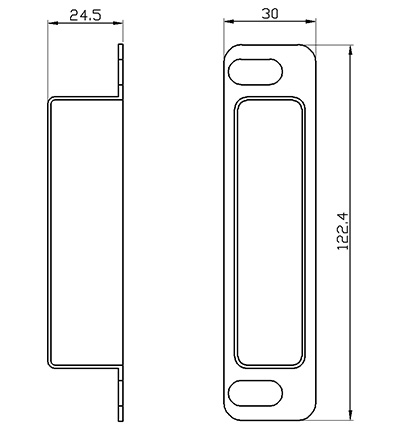

  • M700-064
Thumbturn
Patch
