You are here: Home » Hinges » UL Hinges

KEYMAN UL Hinges

Features
● UL Certified Fire Rating: Officially listed for 3-hour fire protection (File No. R41384), providing verified passive fire resistance to help contain fires and protect building occupants.
● Uncompromising Security: Non-removable pins offer critical tamper-resistance for exterior doors, acting as a primary deterrent against forced entry.
● Precision Engineering: CNC-machined for a perfect fit. The beveled inner leaf ensures a seamless, gap-free closure for a clean, professional appearance.
● Solid Brass Durability: Crafted from Stainless Steel, upholding KEYMAN's legacy of master craftsmanship, corrosion resistance, and long-term reliability.
● Cohesive Aesthetic: Guaranteed to match the finish and detailing of other KEYMAN hardware, ensuring a unified and intentional design throughout your space.
未标题-2
Two Ball Bearing Type Hinges
QH4007-Two Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 2 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 4.5" x 4.0"
UL 3 Hours Fire-Rated
File No.: R41384
QH4008-Two Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 2 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 4.5" x 4.5"
UL 3 Hours Fire-Rated
File No.: R41384
Four Ball Bearing Type Hinges
QH4006-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 4.5" x 4.5"
UL 3 Hours Fire-Rated
File No.: R41384
QH4005-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 4.5" x 4.0"
UL 3 Hours Fire-Rated
File No.: R41384
QH5010-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 5.0" x 4.0"
UL 3 Hours Fire-Rated
File No.: R41384
QH4004-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 4.0" x 4.0"
UL 3 Hours Fire-Rated
File No.: R41384
QH4001-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 4.0" x 3.0"
UL 3 Hours Fire-Rated
File No.: R41384
QH5003-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 5.0" x 3.5"
UL 3 Hours Fire-Rated
File No.: R41384
QH5006-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 5.0" x 4.5"
UL 3 Hours Fire-Rated
File No.: R41384
QH5005-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 5.0" x 4.0"
UL 3 Hours Fire-Rated
File No.: R41384
QH4002-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 4.0" x 3.5"
UL 3 Hours Fire-Rated
File No.: R41384
QH4009-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 4.5" x 4.0"
UL 3 Hours Fire-Rated
File No.: R41384
QH5012-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 5.0" x 5.0"
UL 3 Hours Fire-Rated
File No.: R41384
QH5002-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 5.0" x 4.0"
UL 3 Hours Fire-Rated
File No.: R41384
QH4003-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 4.0" x 4.0"
UL 3 Hours Fire-Rated
File No.: R41384
QH4010-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 4.5" x 4.5"
UL 3 Hours Fire-Rated
File No.: R41384
QH5011-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 5.0" x 4.5"
UL 3 Hours Fire-Rated
File No.: R41384
QH5001-Four Ball Bearing Type Hinges
● Standard: UL 3 Hours Fire-Rated,File No.: R41384
● Description: 5 Knuckle, 4 Ball Bearing Butt Hinge - for standard weight door applications
● Finish: SS,RB,PB...
● Base Material: Steel
● Options: NRP/ETW/PIC/RC
● 5.0" x 3.0"
UL 3 Hours Fire-Rated
File No.: R41384

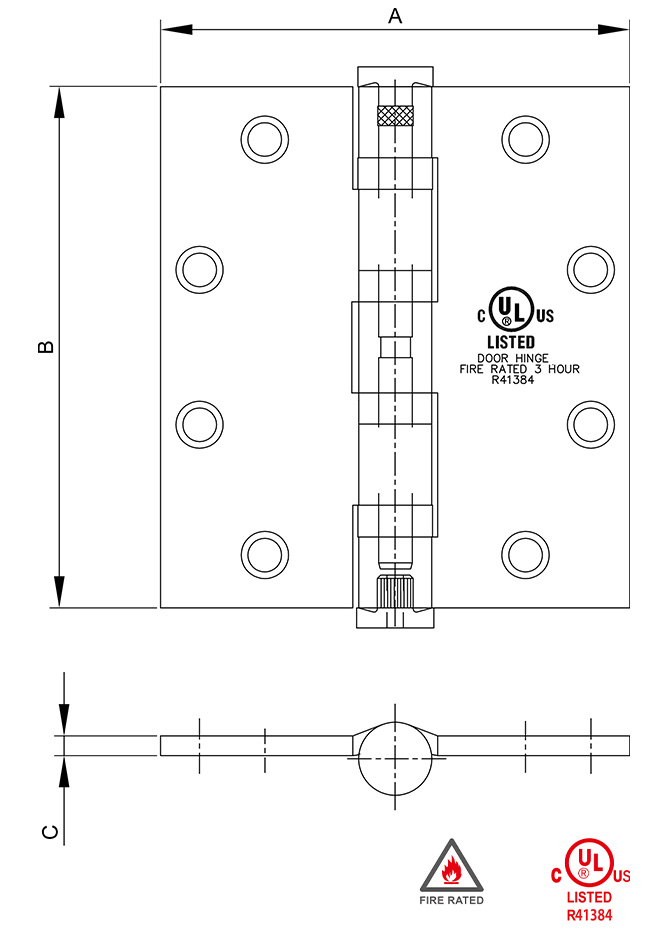

  • Hinge Size
    Item NO. Description A
    Height
    (inch")    		 B
    Width
    (inch")    		 C
    Thickness
    (mm)
    QH4006 Four ball bearing type hinges 4.5" 4.5" 3.0
    QH4005 Four ball bearing type hinges 4.5" 4.0" 3.0
    QH5010 Four ball bearing type hinges 5.0" 4.0" 4.6
    QH4004 Four ball bearing type hinges 4.0" 4.0" 3.4
    QH4001 Four ball bearing type hinges 4.0" 3.0" 3.0
    QH5003 Four ball bearing type hinges 5.0" 3.5" 3.0
    QH5006 Four ball bearing type hinges 5.0" 4.5" 3.4
    QH5005 Four ball bearing type hinges 5.0" 4.0" 3.4
    QH4002 Four ball bearing type hinges 4.0" 3.5" 3.0
    QH4009 Four ball bearing type hinges 4.5" 4.0" 4.6
    QH5012 Four ball bearing type hinges 5.0" 5.0" 4.6
    QH5002 Four ball bearing type hinges 5.0" 4.0" 3.0
    QH4003 Four ball bearing type hinges 4.0" 4.0" 3.0
    QH4010 Four ball bearing type hinges 4.5" 4.5" 4.6
    QH5011 Four ball bearing type hinges 5.0" 4.5" 4.6
    QH5001 Four ball bearing type hinges 5.0" 3.0" 3.0
Download

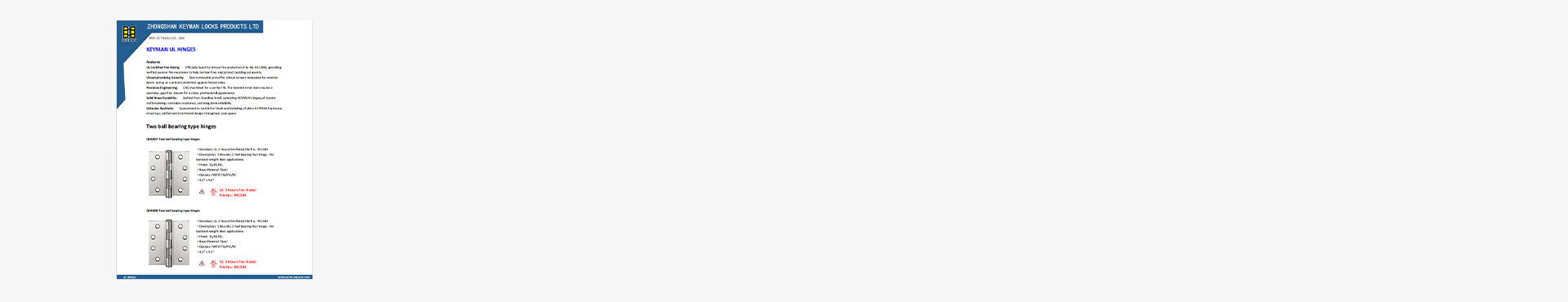

KEYMAN UL HINGE Catalogue
