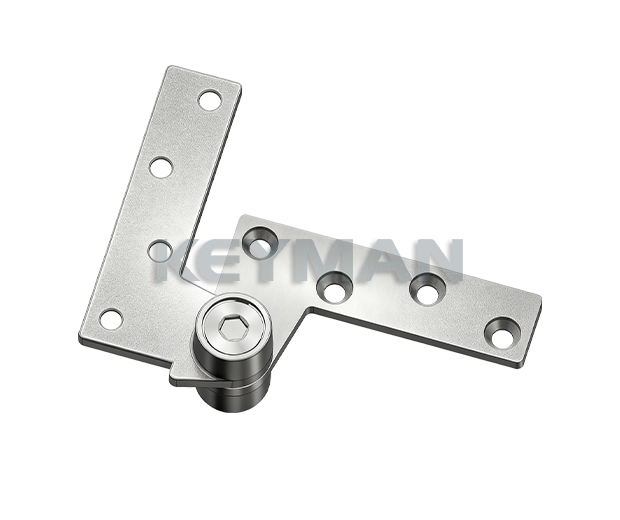

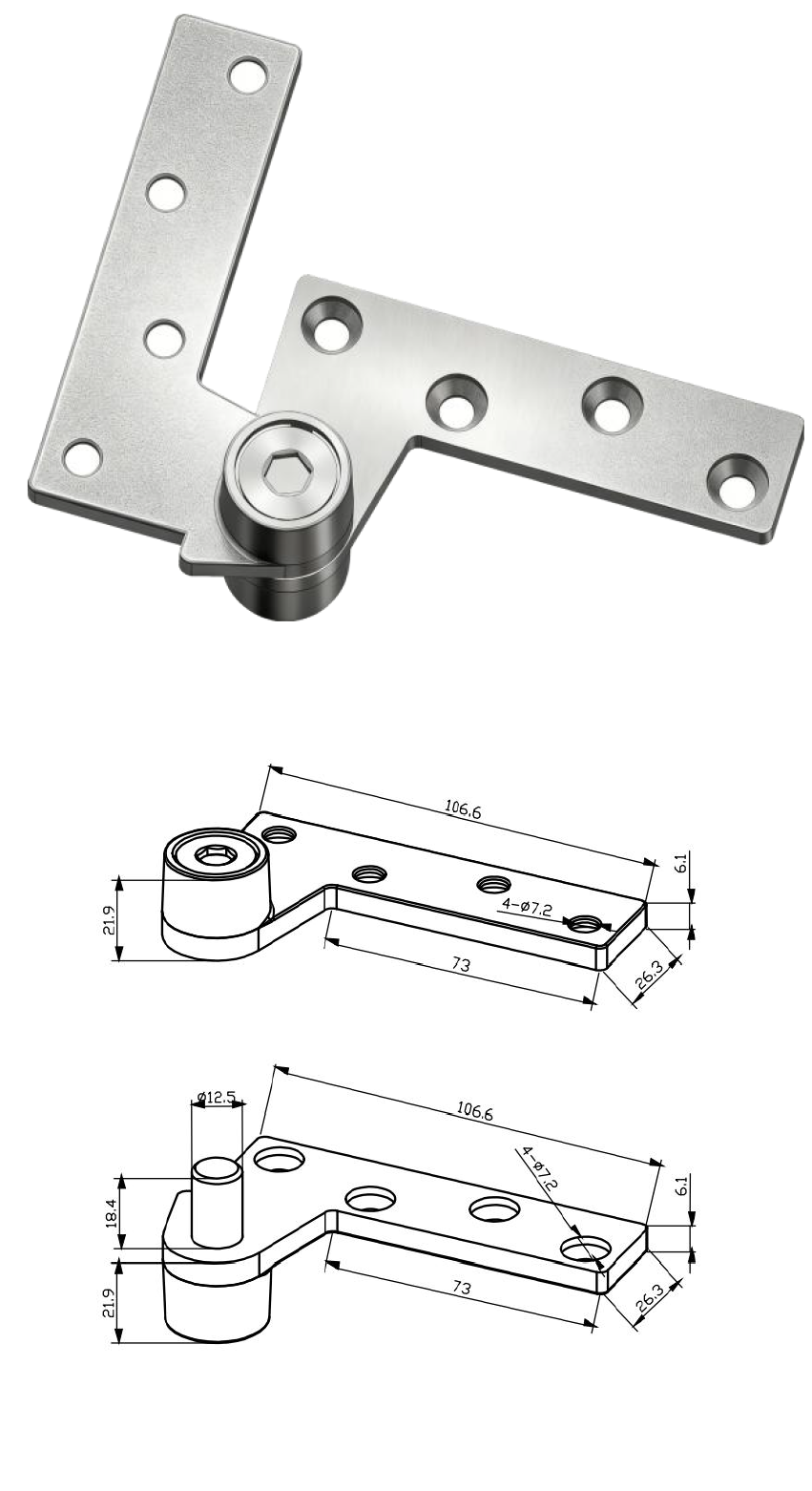

This heavy-duty offset pivot hinge set is engineered for large, commercial doors, supporting up to 600 pounds. Its core feature is a 3/4" offset design, which allows the door to pivot on an axis set away from its edge, creating a wide clearance and a modern aesthetic. The hinge enables a door opening angle greater than 180 degrees, allowing the door to swing completely clear of the frame for maximum access.

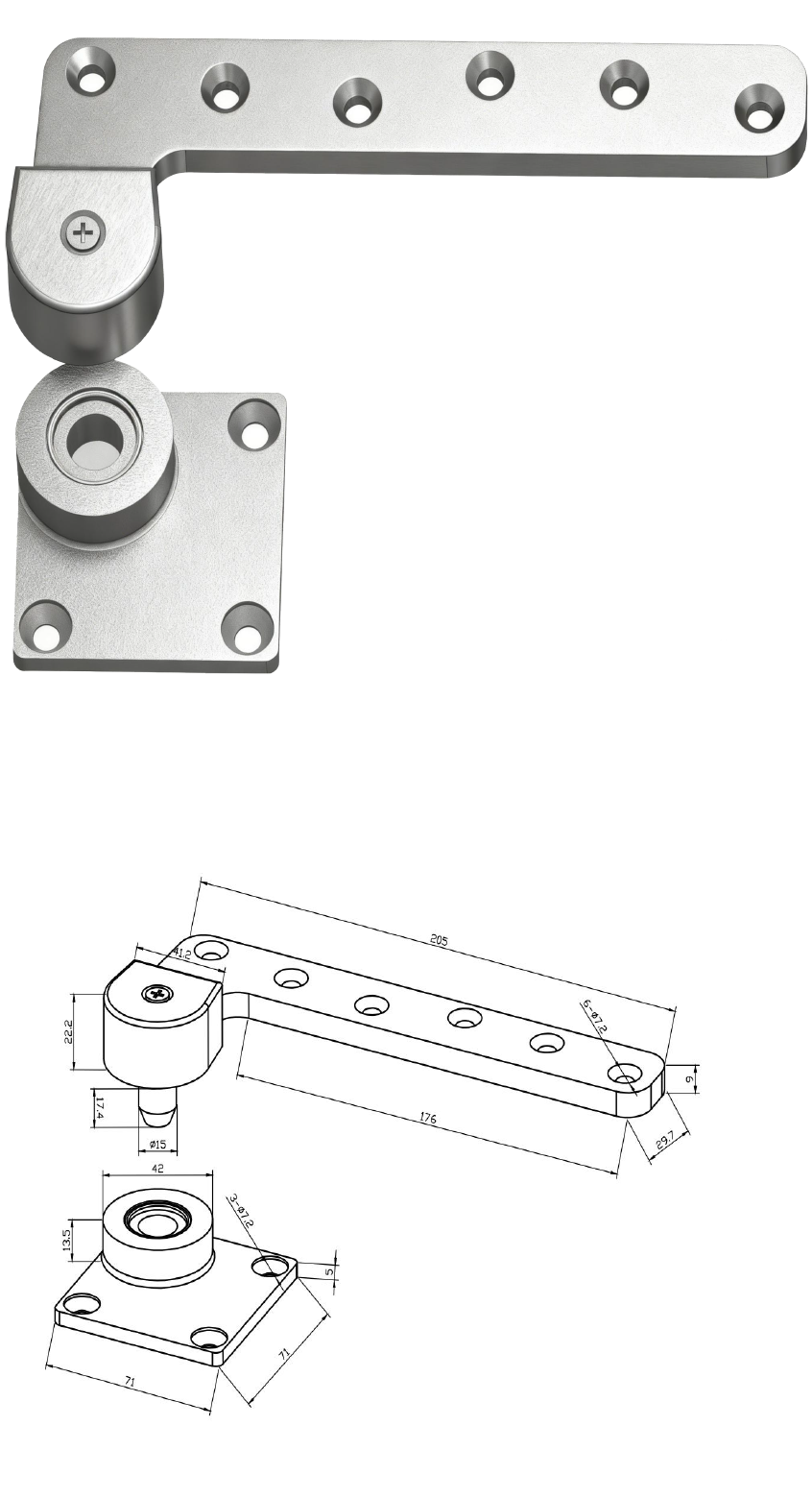

Constructed from stainless steel (SUS 304), the hinge offers excellent corrosion resistance for long-term durability in demanding environments. The system is supplied as a complete KPH10 Set, including a top header mount (KPH10 Top) and a bottom base mount (KPH10 Btm), ensuring perfect compatibility.
For precise installation, the hinge has a defined 19mm installation distance and provides 3/16" vertical adjustment for fine-tuning the door's alignment after installation. It is designed for doors with a minimum thickness of 1 3/4 inches and is non-handed, providing flexibility for use on both left- and right-handed doors without modification. This combination of strength, adjustability, and versatile design makes it ideal for high-traffic commercial and institutional applications.
