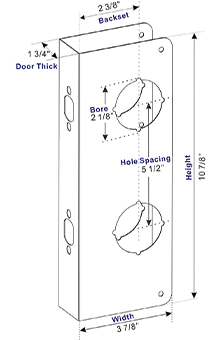

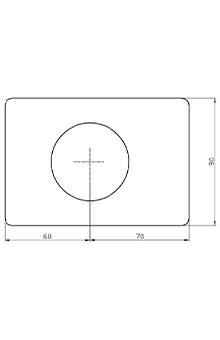

 QK9001 |  QK9005 |  QK9008 |  QK9014 |  QKK34 |
 QK9001 |  QK9005 | QK9008 |  QK9014 |

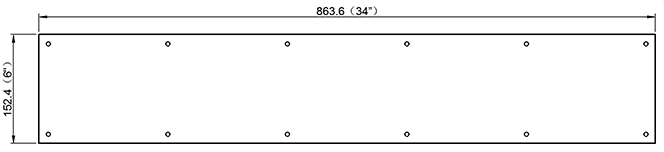

 QKK3406 | |||

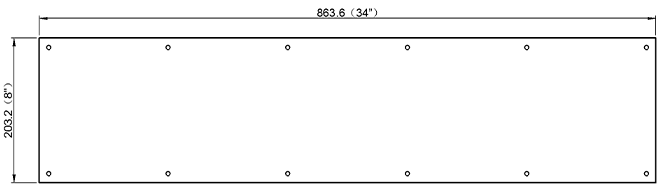

 QKK3408 | |||

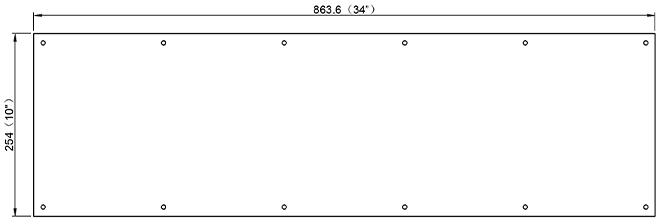

 QKK3410 | |||

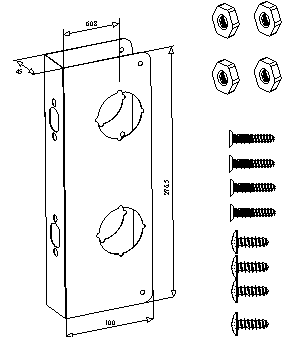

| Item No. | K9001 | Item No. | K9002 | Item No. | K9003 | Item No. | K9004 |
| Door Thick | 45mm 1-3/4" | Door Thick | 35mm 1-3/8" | Door Thick | 45mm 1-3/4" | Door Thick | 45mm 1-3/4" |
| Backset | 60mm 2-3/8" | Backset | 60mm 2-3/8" | Backset | 60mm 2-3/8" | Backset | 70mm 2-3/4" |
| Bore Hole | φ54mm 2-1/8" | Bore Hole | φ54mm 2-1/8" | Bore Hole | φ54mm 2-1/8" | Bore Hole | φ54mm 2-1/8" |
| Length | 276mm 10-7/8" | Length | 230mm 9" | Length | 230mm 9" | Length | 230mm 9" |
| Width | 100mm 4" | Width | 100mm 4" | Width | 100mm 4" | Width | 110mm 4-3/8" |
 |  |  |  | ||||

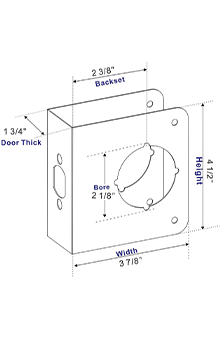

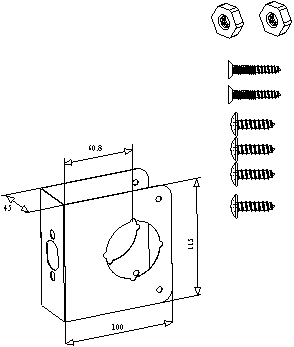

| Item No. | K9005 | Item No. | K9006 | Item No. | K9007 | Item No. | K9008 |
| Door Thick | 45mm 1-3/4" | Door Thick | 45mm 1-3/4" | Door Thick | 45mm 1-3/4" | Door Thick | 35mm 1-3/8" |
| Backset | 60mm 2-3/8" | Backset | 70mm 2-3/4" | Backset | 60mm 2-3/8" | Backset | 60mm 2-3/8" |
| Bore Hole | φ54mm 2-1/8" | Bore Hole | φ54mm 2-1/8" | Bore Hole | φ54mm 2-1/8" | Bore Hole | φ54mm 2-1/8" |
| Length | 115mm 4-1/2" | Length | 115mm 4-1/2" | Length | 230mm 9" | Length | 115mm 4-1/2" |
| Width | 100mm 4" | Width | 100mm 4" | Width | 100mm 4" | Width | 100mm 4" |
 |  |  |  | ||||
