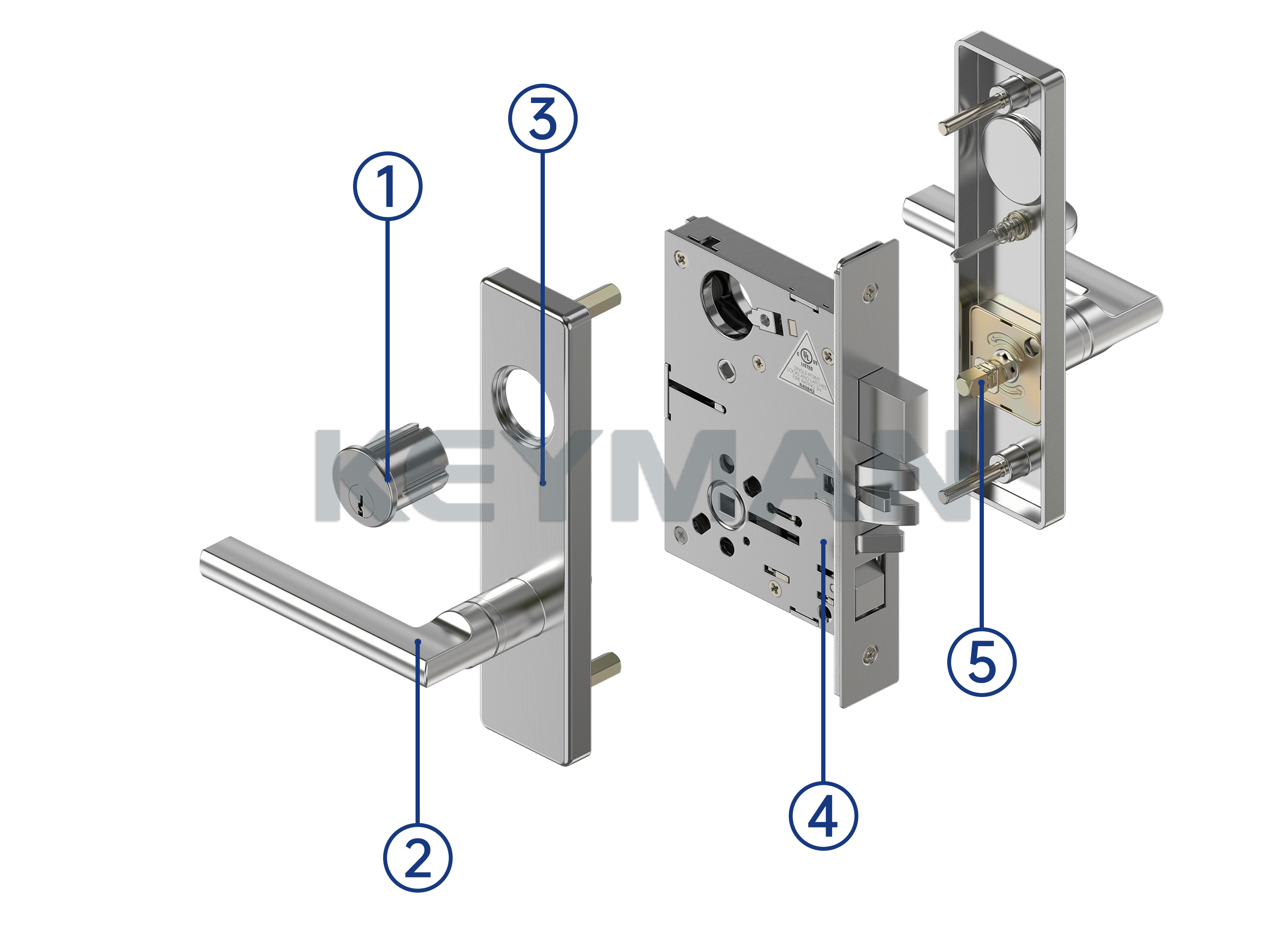

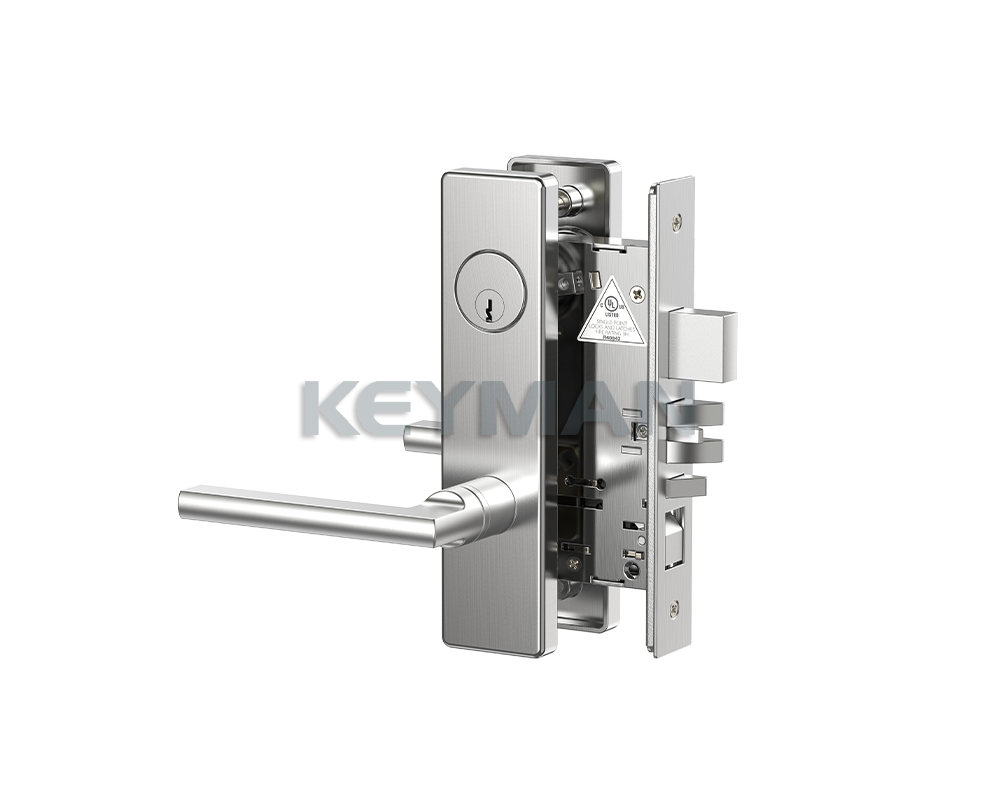

KEYMAN Commercial Fire Rated Stainless Steel Escutcheon Type Mortise Lock

Mortise with Latchbolt, Auxiliary Latch(door ajar), Switch Toggle

Latch bolt operated by lever from either side except when outside lever is made inoperative by switch toggle or locked by cylinder.

When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary dead latch. Inside

lever always free.

Mortise with Latchbolt, Auxiliary Latch (door ajar).

Latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked,

latch bolt is retracted by key, or by operating key and outside lever from outside or by operating inside lever. Auxiliary dead latch.



Latch bolt operated by lever from either side except when outside lever is locked from outside by key. Latch bolt can be locked in a retracted position by key. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever unless latch bolt has been locked in a retracted position. Auxiliary dead latch.



Latch bolt operated by key from outside or by operating inside lever. Outside lever is always inoperative. Auxiliary dead latch.



Latch bolt operated by lever from either side, except when outside lever is made inoperative by switch toggle or locked by cylinder.

Dead bolt projected by key from outside and by turn from inside.

Dead bolt retracted by key from outside and by turn from inside. Operating inside lever retracts both bolts and outside remains

locked.



Latch bolt operated by lever from either side. Dead bolt projected by key from outside and turn from inside. Operating inside lever retracts both bolts and unlocks outside.



Latch bolt operated by key from outside or by operating inside lever. Outside lever is always inoperative. Dead bolt projected by turn from inside and all keys except emergency and display key are shut out. Operating inside lever retracts both bolts. Auxiliary dead latch.Inside lever is always free for immediate egress.



Latch bolt operated by lever from either side, except when outside lever is made inoperative by switch toggle or locked by key. Dead bolt operated by key outside or turn inside. Key outside operates both bolts. Operating inside lever retracts both bolts and outside remains locked. Latch bolt is deadlocked when outside lever is made inoperative or when the dead bolt is projected. When dead bolt is retracted, lever is unlocked by switch toggle.



Latchbolt operated by lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by lever inside. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.



Latch bolt operated by lever from either side, except when outside lever is made inoperative by key. Dead bolt operated by key outside or turn inside. Key outside operates both bolts. Operating inside lever retracts both bolts and unlocked outside lever. Auxilary dead latch. When dead bolt is retracted,outside lever is unlocked. When dead bolt is stretched, outside lever is locked.



Latch bolt operated by lever from either side, except when outside lever is locked by key from inside. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever . Auxiliary dead latch.



Latch bolt operated by lever from either side. Dead bolt operated by key from either side. Inside lever w/o panic exit function.



Latch bolt operated by key from either side. Both levers always inoperative. Auxiliary dead latch.



Latch bolt operated by lever from either side except when outside

lever is locked from inside or outside by key. When outside lever is locked, latch bolt is retracted by key from inside or outside or by operating inside lever. Auxiliary dead latch.



Latch bolt operated by lever from either side except when outside

lever is locked from inside or outside by key. Dead bolt retracted by key from inside or outside. Operating inside lever retracts both bolts and unlocks outside.



The door inside the door are locked with the key, and the key is released outside the hand insurance. When the safety is released, the outside handle can be retracted to open the lock with the inclined tongue. The inner handle can always open the lock. When the door is closed, the auxiliary safety tongue locks the oblique tongue. But the inner hand retracted oblique tongue does not change the state of the outer hand.



Latch bolt operated by lever from either side at all times.



Dead bolt operated by turn from inside and by emergency release from outside. Both handles for pull and push only.



Latch bolt operated by lever from either side. Dead bolt operated by turn from inside and emergency release from outside. Operating inside lever retracts both bolts.



Latch bolt operated by lever from either side except when outside

lever is locked by inside turn. Operating inside lever, closing door

or operating outside emergency release unlocks outside lever.

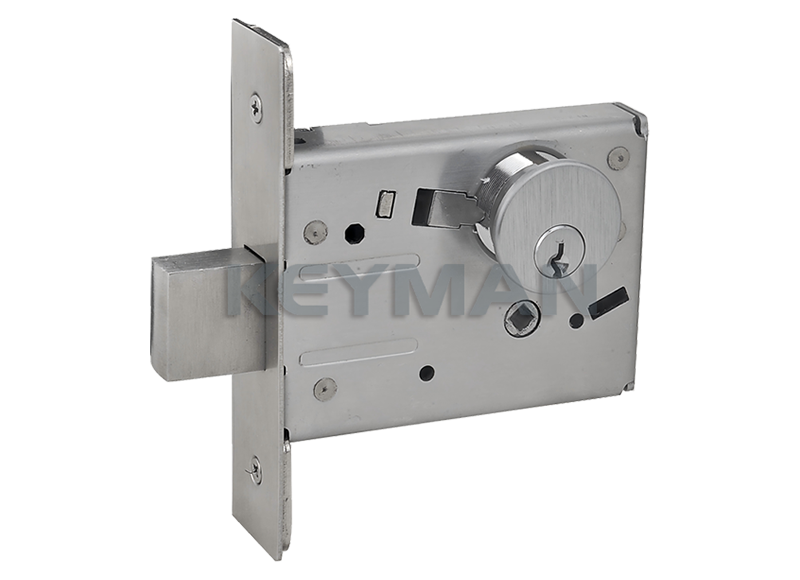

Dead bolt operated by key from either side.



Dead bolt operated by key from outside and by turn from inside.



Dead bolt operated by key from outside only.



Key from outside operates dead bolt. Turn from inside retracts but does not project dead bolt.



Latch bolt operated by lever from inside. Non removeable blank

trim or no trim outside.



Latch bolt operated by inside lever or outside key. Auxiliary dead latch.



Latch bolt operated by outside key. Auxiliary dead latch. Outside handle is always inopertated.

No Lockcase, lever on both sides fixed by mounting bar only.

No Lockcase,one side lever only.

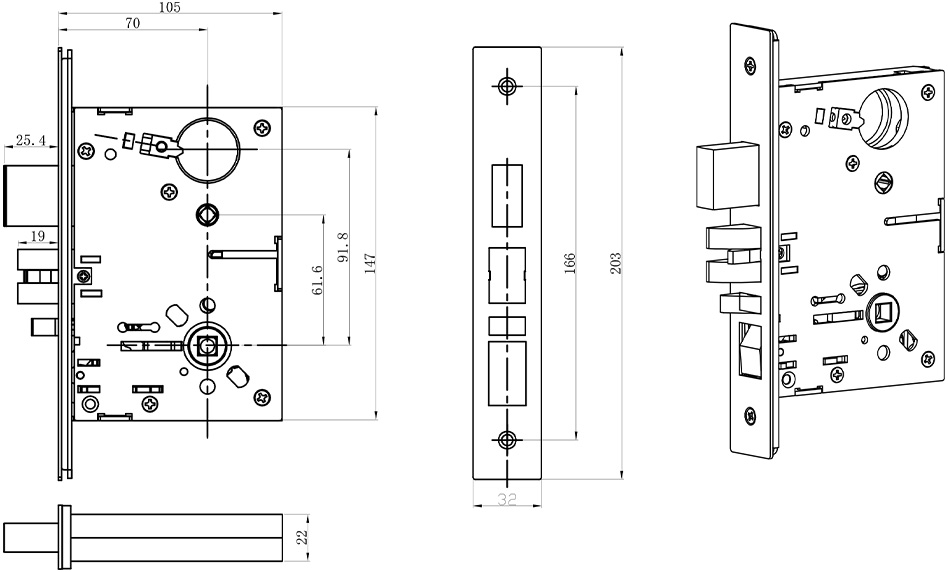

● 2-3/4″ (70mm) only.

●1-3/8″ (35mm) to 2-1/2″ (64mm) metal door.    ●1-3/4″ (45mm) to 2-1/2″ (64mm) wood door.

● Self-adjusting case.

● 1″ (25.4mm) throw, stainless steel.

● All functions are reversible.
