When it comes to emergency exit hardware, not all panic bars are created equal. The differences between ANSI Grade 1 panic bars and lower-grade alternatives go far beyond simple performance ratings—they're rooted in fundamental choices about materials, construction methods, and manufacturing standards.
Understanding these distinctions is critical for building owners, facility managers, and security professionals who need to make informed decisions about life safety equipment. A Grade 1 panic bar represents the highest standard of durability and reliability, designed to perform flawlessly even under the most demanding conditions.
This guide examines the specific material and construction differences that set Grade 1 panic bars apart from Grade 2 and Grade 3 alternatives.
The American National Standards Institute (ANSI) and the Builders Hardware Manufacturers Association (BHMA) established the A156.3 standard specifically for exit devices. This standard defines three performance grades based on rigorous testing protocols:
Grade 1 devices must withstand 500,000 cycles of operation and meet the most stringent strength requirements. These are designed for high-traffic commercial applications where reliability is non-negotiable.
Grade 2 devices are tested to 250,000 cycles and are suitable for moderate-traffic environments like smaller office buildings or retail spaces.
Grade 3 devices undergo 100,000 cycles of testing and are appropriate for low-traffic applications such as residential or light commercial use.
The grading system provides a clear framework for matching hardware to building requirements, but the real differences become apparent when you examine what goes into manufacturing each grade level.

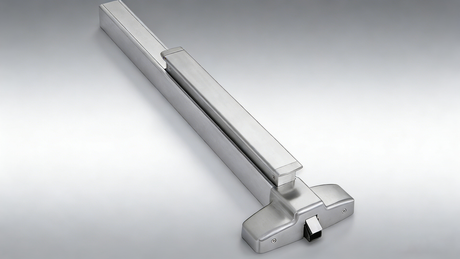

Grade 1 panic bars utilize significantly thicker and stronger materials throughout their construction. The touchpad, the most visible and frequently contacted component, is typically fabricated from heavy-gauge aluminum or stainless steel in Grade 1 devices.
Lower-grade panic bars often use thinner materials or lighter-weight alloys that can bend, dent, or deform over time. A Grade 1 touchpad might use 14-gauge steel where a Grade 3 device uses 18-gauge material—a difference that translates directly to durability and longevity.
The internal latch mechanisms in Grade 1 panic bars feature stainless steel components designed to resist wear, corrosion, and mechanical failure. These precision-engineered parts maintain their function even after hundreds of thousands of operations.
Grade 2 and Grade 3 devices may incorporate plated steel or zinc alloy components that can corrode over time, particularly in coastal environments or facilities where cleaning chemicals are regularly used. The initial cost savings of lower-grade materials often leads to premature failure and replacement expenses.
Grade 1 panic bars include reinforced mounting plates and attachment points that distribute stress across a wider area of the door. These mounting systems use thicker steel plates with additional reinforcement around bolt holes and stress points.
Lower-grade devices may use thinner mounting plates that can pull away from doors under repeated stress or impact, creating security vulnerabilities and requiring costly repairs.
Grade 1 panic bars are manufactured to tighter tolerances than lower grades. This precision ensures that moving parts align correctly and operate smoothly throughout the device's lifespan. The latch mechanism must retract fully with every press of the touchpad, and tight manufacturing tolerances prevent binding or partial retraction.
Manufacturing processes for Grade 1 devices typically include computer-controlled machining, automated assembly with quality checkpoints, and individual testing of completed units. Lower-grade devices may rely on less precise manufacturing methods that introduce variability in performance.
The pivoting mechanisms in Grade 1 panic bars often incorporate sealed bearings that protect against dust, moisture, and debris. These bearings ensure smooth operation over hundreds of thousands of cycles without requiring maintenance or lubrication.
Grade 2 and Grade 3 devices may use simpler pivot points or unsealed bearings that wear more quickly and can seize up when contaminated. This difference becomes particularly important in industrial environments or exterior applications.
Higher-quality Grade 1 panic bars feature welded construction at critical stress points. Welding creates a continuous bond that's stronger than the base materials, ensuring that assemblies won't separate under stress.
Lower-grade devices often use riveted or mechanically fastened assemblies that can loosen over time. While initially functional, these connections may develop play or separation after years of use, compromising the device's reliability.
Grade 1 panic bars must withstand significant impact forces without damage or malfunction. Testing standards require these devices to endure both perpendicular and parallel impact loads that would disable lower-grade alternatives.
The heavy-gauge materials and reinforced construction of Grade 1 devices allow them to absorb and distribute impact forces. A shopping cart collision or aggressive push won't bend the touchpad or damage the internal mechanism—scenarios that frequently damage Grade 2 and Grade 3 devices.
Materials selection in Grade 1 panic bars accounts for environmental challenges. Stainless steel components resist corrosion in humid or coastal environments. Aluminum touchpads won't rust, even with constant exposure to weather.
Grade 3 devices may use materials that corrode quickly when exposed to moisture or temperature extremes. Paint or plating can chip or wear away, exposing base metals to corrosion.
The robust construction of Grade 1 panic bars makes them highly resistant to vandalism. Solid materials and secure fastening systems prevent disassembly or damage from casual tampering.
Facilities with vandalism concerns—schools, transit stations, or public buildings—benefit significantly from the extra durability of Grade 1 construction. Lower grades may require frequent repair or replacement in these environments.
While Grade 1 panic bars carry a higher initial price point, their superior materials and construction deliver better long-term value. A device that functions reliably for 20 years costs far less than replacing a lower-grade unit every 5-7 years.
Maintenance costs also favor Grade 1 devices. Sealed bearings, corrosion-resistant materials, and robust construction minimize repair needs. Lower-grade devices often require periodic adjustments, parts replacement, or complete overhaul to maintain functionality.
Building codes and fire safety regulations increasingly specify Grade 1 panic bars for commercial applications. Using lower-grade devices where Grade 1 is required creates code compliance issues and potential liability in emergency situations.
The reliable operation of Grade 1 devices under all conditions provides critical protection for building occupants. Material and construction quality directly impacts the ability of these devices to function when lives depend on them.
Matching panic bar grade to building use ensures appropriate performance without over-specification. High-traffic commercial buildings, healthcare facilities, educational institutions, and industrial sites benefit from Grade 1 construction. The superior materials and robust build quality provide the reliability these demanding environments require.
Moderate-traffic applications like small offices, retail spaces, or secondary exits in larger buildings may perform adequately with Grade 2 devices. These offer a middle ground between cost and durability.
Grade 3 panic bars suit low-traffic residential or light commercial applications where cycle counts remain low and environmental challenges are minimal.
The materials and construction methods used in ANSI Grade 1 panic bars create devices that outperform and outlast lower-grade alternatives. Heavy-gauge metals, stainless steel mechanisms, precision manufacturing, and reinforced construction all contribute to exceptional durability and reliability.
For facilities where exit device performance matters—whether for occupant safety, code compliance, or long-term cost management—the superior materials and construction of Grade 1 panic bars deliver measurable value. These devices represent an investment in quality that pays dividends through decades of dependable operation.
When specifying panic bars for your facility, consider not just the initial cost but the total lifecycle value. The materials and construction that define a true Grade 1 device make all the difference when performance counts.
