K8008 1000×800

Standard Manual Flush Bolts With 12” Rod For Metal Door

Model No. QK8008 (For Metal Doors)
Description
This manual flush bolt features a spring-loaded snap-action lever: moving it to the "up" position retracts the bolt, while moving it to the "down" position projects the bolt into the head frame.
Note: For metal doors, a pair (top & bottom) of manual flush bolts should be used on the inactive leaf of double doors.



Features
● Non-Handed: Reversible design suitable for both left-hand and right-hand doors.
● Ergonomic Lever: Easy finger-grip lever action ensures effortless operation and simple installation.

● Anti-Rotation Design: Plunger features a milled side surface that engages with a matching guide to prevent bolt rotation and loosening.

You are here: Home » Auto Flush Bolt » K8008

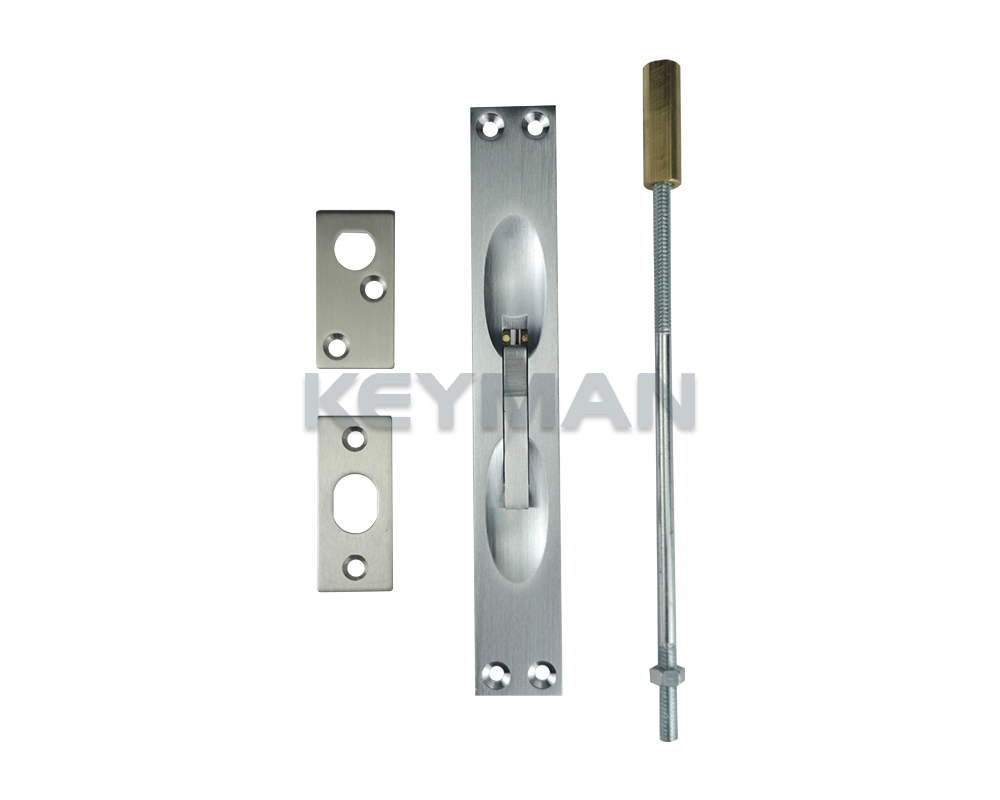

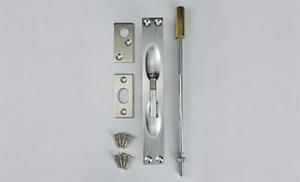

QK8008 Manual Flush Bolt With 12" Rod
  • Product Size



  • Product Information
    Standard Manual Flush Bolts with 12" Rod for Metal Door
    Bolt Throw
    		 ● 5/8”(16mm)
    Bolt Diameter
    		 ● 1/2”(12.7mm)
    Length of Bolt Rod
    		 ● 12”(305mm)
    Material
    		 ● Chromium-Plated Brass
    Face Size
    		 ● 6-3/4”x1”(171mmx 25.4mm)
    Max. Door Size
    		 ● 48”(1219mm)×96”(2438mm),Hollow-metal
    Dimensions
    		 ● All lengths measured from center of bolt mechanism with retracted bolt head
    Features
    		 ● Ergonomic finger-grip lever for effortless operation and simple installation.
    ● Plunger features a milled side surface that engages with a matching guide to prevent bolt rotation and loosening.
