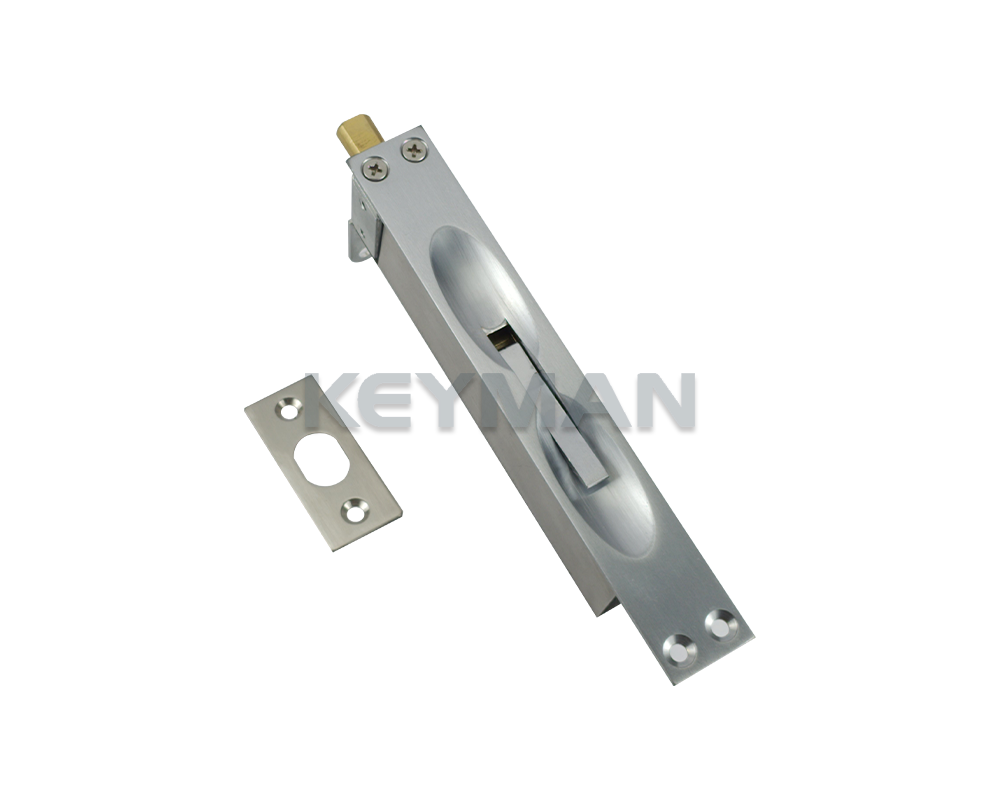

K8006 1000×800

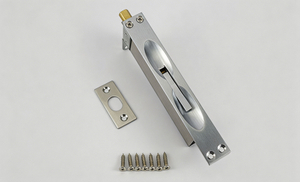

Standard Manual Flush Bolts for Wood Door

Model No. QK8006 (For Wood Doors)
Description
This manual flush bolt features a spring-loaded snap-action lever: moving it to the "up" position retracts the bolt, while moving it to the "down" position projects the bolt into the head frame.



Features
● Non-handed (suitable for left/right-hand doors).
● Easy-to-grip lever action and simple installation.
● Plunger with a milled side surface that fits a matching guide to prevent bolt rotation and unscrewing.



You are here: Home » Auto Flush Bolt » K8006

QK8006 Manual Flush Bolt Without Rod

  • Product Size







  • Product Information
    Standard Manual Flush Bolts for Wood Door
    Bolt Throw
    		 ● 5/8”(16mm)
    Bolt Diameter
    		 ● 1/2”(12.7mm)
    Material
    		 ● Chromium-Plated Brass
    Face Size
    		 ● 6-3/4”x1”(171mmx25.4mm)
    Max. Door Size
    		 ● 48”(1219mm)×96”(2438mm),Wood covered composite
    Dimensions
    		 ● All lengths measured from center of bolt mechanism with retracted bolt head
    Features
    		 ● Ergonomic finger grip lever for easy operation and installation.
    ● Plunger with milled side surface engaging a matching guide to prevent rotation and loosening.
