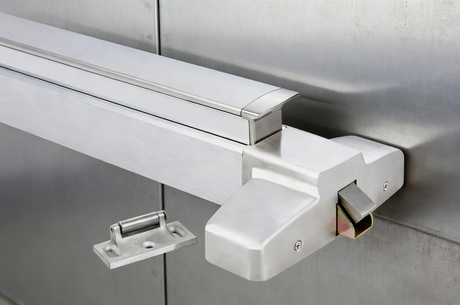

When specifying panic exit devices for commercial and institutional buildings, understanding the rigorous testing standards behind ANSI Grade 1 certification is essential. These panic bars—also called exit devices or crash bars—must meet strict durability and cycle requirements to ensure they perform reliably in emergency situations.
ANSI Grade 1 represents the highest performance level for panic hardware, designed for high-traffic applications where failure is not an option. But what exactly does a panic bar need to endure to earn this certification? Let's examine the durability and cycle test requirements that separate Grade 1 devices from lower-grade alternatives.
The American National Standards Institute (ANSI) and the Builders Hardware Manufacturers Association (BHMA) developed the A156.3 standard specifically for exit devices. This standard establishes three performance grades—Grade 1, Grade 2, and Grade 3—with Grade 1 being the most demanding.
Grade 1 panic bars are engineered for heavy-duty commercial applications such as schools, hospitals, office buildings, and retail centers where doors may be activated hundreds of times daily. The standard evaluates multiple performance factors, but durability and cycle testing form the cornerstone of Grade 1 certification.
The cycle test simulates years of real-world use by repeatedly activating the panic device under controlled conditions. For ANSI Grade 1 certification, a panic exit device must successfully complete 500,000 cycles without failure or significant degradation in performance.
During the test, the panic bar is mounted on a door assembly that replicates actual installation conditions. A mechanical apparatus repeatedly pushes the touchpad or crossbar, activating the latch mechanism and allowing the door to open. This process continues for the full 500,000 cycles.
The device must maintain proper function throughout the entire test. Any mechanical failure, latch malfunction, or significant wear that affects operation results in test failure. This rigorous requirement ensures that Grade 1 panic bars can withstand decades of heavy use without compromising safety or security.
To put this number in perspective, if a door is used 100 times per day—a reasonable estimate for a moderately busy entrance—500,000 cycles represents approximately 13.7 years of continuous service. High-traffic locations with 300 daily activations would still see over 4.5 years of reliable operation.
This testing provides building owners and facility managers with confidence that their panic exit devices will perform when needed most, even after years of daily use.
While cycle testing evaluates long-term mechanical endurance, ANSI Grade 1 panic bars must also pass additional durability tests that simulate abuse, environmental stress, and emergency conditions.
Grade 1 devices undergo impact testing to verify they can withstand forceful pushes during panic situations. The touchpad or crossbar must endure specified impact forces without breaking, deforming, or failing to retract the latch mechanism.
Structural strength tests also apply controlled loads to various components, ensuring that mounting hardware, latch assemblies, and other critical parts maintain integrity under stress. These tests simulate scenarios where multiple people might simultaneously push against the device during an evacuation.
A panic exit device must allow the door to close and latch properly after each activation. Grade 1 devices are tested to confirm that spring mechanisms return the latch to the fully extended position reliably, ensuring the door remains secure when not in use.
The device must also operate correctly across a range of door closing speeds, from gentle closings to forceful slams, without damage or malfunction.
ANSI standards specify maximum operational forces required to activate panic hardware. For Grade 1 devices, the force needed to depress the touchpad or crossbar and retract the latch must not exceed 15 pounds at any point during the 500,000-cycle test.
This requirement ensures accessibility for individuals with limited strength or mobility while verifying that the mechanism doesn't become stiff or difficult to operate over time.
Panic exit devices face varying environmental conditions depending on their installation location. Grade 1 certification includes testing for environmental factors that could affect durability.
Devices installed on exterior doors or in humid environments must resist corrosion that could impair function. Salt spray testing evaluates how finishes and materials withstand corrosive conditions, particularly important for coastal installations or areas with harsh winters where deicing salts are used.
Grade 1 panic bars are subjected to temperature cycling tests that expose them to extreme heat and cold. The devices must continue operating properly after exposure to temperatures ranging from -30°F to 150°F (-34°C to 66°C), simulating conditions from sub-zero winters to hot summer days.
Many panic exit devices are installed on fire-rated doors, requiring additional testing beyond standard ANSI Grade 1 requirements. These devices must maintain their Grade 1 performance while also meeting fire rating standards such as UL 10C or ULC-S104.
Fire-rated panic bars for 3-hour fire doors undergo additional testing to verify they can withstand fire conditions for the required duration without compromising the door's fire protection capabilities. This combination of fire rating and Grade 1 durability makes these devices suitable for the most demanding applications.
Understanding how Grade 1 requirements differ from Grade 2 and Grade 3 helps clarify why Grade 1 certification matters for high-traffic applications.
Grade 2 panic devices must complete 250,000 cycles—half the requirement for Grade 1. While suitable for moderate-traffic applications, Grade 2 devices may not provide the longevity needed for busy commercial entrances.
Grade 3 devices only need to pass 100,000 cycles, making them appropriate for low-traffic areas but inadequate for high-use situations where Grade 1 performance is essential.
The operational force requirements also differ, with Grade 2 and Grade 3 devices allowed higher activation forces that may not meet accessibility standards for all users.
Building codes and life safety regulations often mandate specific performance grades based on occupancy type and door usage. High-traffic areas, educational facilities, healthcare settings, and main exits typically require Grade 1 panic hardware.
When specifying panic exit devices, consider both current usage patterns and future needs. A Grade 1 device provides a longer service life and greater reliability, potentially reducing long-term maintenance and replacement costs despite a higher initial investment.
Even Grade 1 panic bars require regular maintenance to ensure continued reliable operation. Annual inspections should verify that:
The device activates smoothly with appropriate force
The latch fully extends and retracts without binding
All mounting hardware remains secure
Finish surfaces show no signs of excessive corrosion
The door closes and latches properly after activation
Proper maintenance extends the service life of panic hardware and ensures it performs as designed during emergencies.
ANSI Grade 1 certification represents a commitment to the highest standards of durability, reliability, and performance for panic exit devices. The 500,000-cycle requirement, combined with comprehensive durability testing, ensures these devices will function properly year after year, even in the most demanding applications.
For architects, building owners, and facility managers responsible for life safety systems, understanding these testing requirements helps inform specification decisions that prioritize occupant safety and long-term value. When lives depend on emergency egress, Grade 1 panic hardware provides the confidence that comes from proven performance under the most rigorous testing standards in the industry.
