Fire-rated doors are only as strong as their weakest component. Most people focus on the door itself—its core material, thickness, and seal. But the hinges holding it in place are just as critical to fire containment. Use the wrong hinge, and a door rated for 90 minutes of fire resistance could fail well before that window closes.
So, does a fire-rated door require a special hinge? The short answer is yes. But understanding why—and knowing which hinge to choose—can make the difference between a compliant installation and a costly, dangerous mistake.
A regular door hinge is designed to handle daily mechanical stress: swinging open, closing, bearing the weight of the door. That's it. Fire-rated door hinges must do all of that and maintain structural integrity under extreme heat for a specified period.
When exposed to high temperatures, standard steel hinges can warp, weaken, or fail entirely. If a hinge gives way during a fire, the door drops from its frame—eliminating the barrier between occupants and flames. Fire-rated hinges are engineered to resist this kind of thermal deformation, keeping the door aligned and functional throughout the rated burn period.
Beyond heat resistance, fire-rated hinges must also meet specific load-bearing requirements. Fire doors tend to be heavier than standard doors due to their dense core materials. A hinge that can't support that weight will wear prematurely, compromising both the door's operation and its fire integrity.

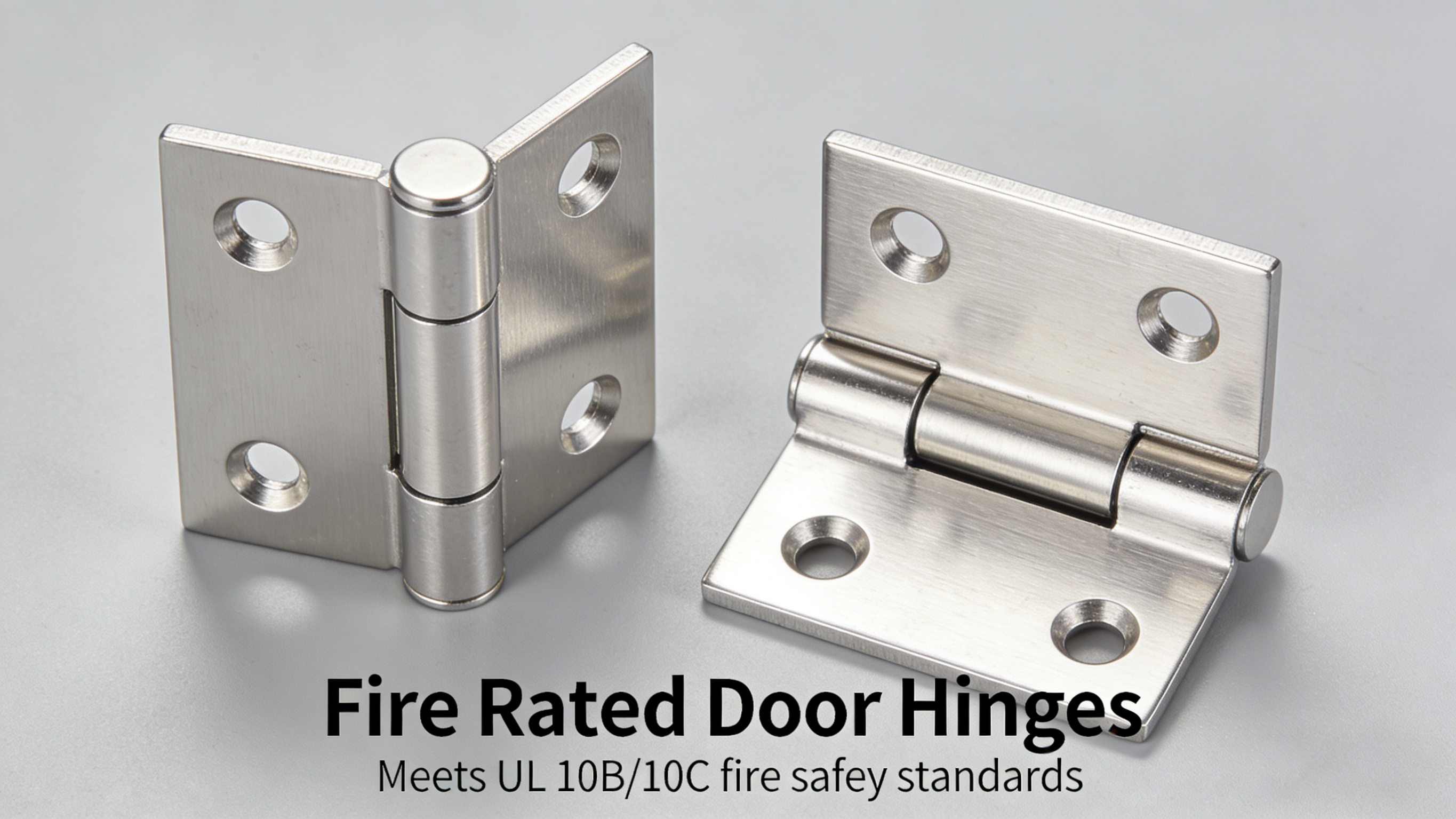

A fire-rated hinge isn't simply a heavier version of a standard hinge. It must meet recognized certification standards—most commonly UL (Underwriters Laboratories) in North America or CE/EN standards in Europe. These certifications confirm that the hinge has been independently tested and verified to perform under fire conditions for a rated duration (typically 20 minutes to 3 hours).
Key characteristics of certified fire-rated door hinges include:
Material: Heavy-gauge steel or stainless steel (SS304 is a widely used grade)
Non-removable pins: Prevents the hinge from being dismantled or separating under heat
Sufficient load capacity: Must support the full weight of the fire door
Third-party certification: UL listing or CE marking required for code compliance
Without these features, a hinge may look identical to a fire-rated one—but won't perform like one when it matters most.
Among the materials used for fire-rated door hinges, stainless steel—particularly SS304—has become a go-to option for architects, builders, and hardware specifiers. SS304 is an austenitic stainless steel alloy known for its excellent corrosion resistance, structural strength, and durability under high temperatures.
Here's how SS304 compares to other common hinge materials:
Material | Corrosion Resistance | Heat Resistance | Load Capacity | Common Application |
|---|---|---|---|---|
SS304 Stainless Steel | Excellent | High | High | Commercial & fire-rated doors |
Carbon Steel | Low–Moderate | Moderate | High | Industrial, interior doors |
Brass | Good | Moderate | Moderate | Decorative, low-traffic doors |
Zinc Alloy | Moderate | Low | Low–Moderate | Residential, light-duty doors |
For fire-rated applications in high-humidity or coastal environments—where corrosion is an added concern—a stainless steel fire door hinge made from SS304 offers a clear advantage. It won't rust, won't weaken prematurely, and maintains its structural integrity long after installation.
The number of hinges required on a fire-rated door depends on the door's height and weight. Most building codes and fire door standards specify a minimum of three hinges for doors up to 90 inches tall, with additional hinges required beyond that.
Door Height | Minimum Hinges Required |
|---|---|
Up to 60 inches | 2 hinges |
60–90 inches | 3 hinges |
90–120 inches | 4 hinges |
Over 120 inches | 1 additional hinge per 30 inches |
Always verify requirements against local building codes and the door manufacturer's specifications. In some jurisdictions, the fire door assembly—including hinges—must be tested and certified as a complete unit.
Fire doors carry a rating that corresponds to how long they can withstand fire exposure. Hinges must be compatible with the door's rating. Using a lower-rated hinge on a higher-rated door will void the assembly's certification.
Fire Door Rating | Minimum Hinge Rating |
|---|---|
20 minutes | 20-minute rated |
45 minutes | 45-minute rated |
60 minutes | 60-minute rated |
90 minutes | 90-minute rated |
3 hours | 3-hour rated |
When sourcing fire rated door hinges, always confirm that the hinge's certification matches or exceeds the door's fire rating. A UL-listed hinge, for example, will display the rated duration on its documentation or packaging.
Certification matters, but so does build quality. A hinge that meets the minimum standard on paper may still underperform if manufactured with inferior materials or poor tolerances. When evaluating suppliers, look for:
UL listing or CE/EN certification (independently verified, not self-declared)
SS304 or equivalent stainless steel construction for durability and heat resistance
Heavy-gauge construction with non-removable pins
Proven track record in commercial and fire-rated applications

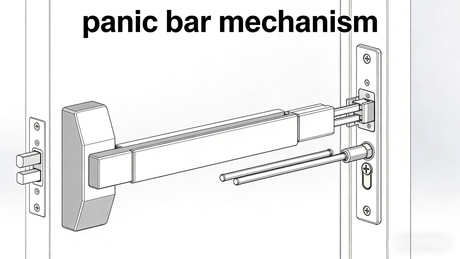

Keyman Lock (keymanlock.com) is one hardware manufacturer offering UL-listed hinges alongside a full range of fire-rated door hardware, including mortise locks and panic exit devices. Their product line covers both ANSI/UL North American standards and CE/EN European standards, making them a practical option for specifiers working across different markets.
No. Standard hinges are not tested or certified for fire performance. Using them on a fire-rated door will void the door assembly's certification and may result in non-compliance with local building codes.
A UL-listed hinge has been tested by Underwriters Laboratories and verified to meet specific fire resistance standards. The listing confirms the hinge will maintain its structural performance for the rated duration under fire conditions.
SS304 stainless steel is one of the most reliable materials for fire door hinges, offering high heat resistance, corrosion resistance, and structural strength. It's particularly well-suited for commercial environments and humid or coastal locations.
Yes. All hinges on a fire-rated door must meet the required fire rating. Mixing rated and non-rated hinges compromises the integrity of the entire fire door assembly.
Look for a UL listing number or CE marking on the product documentation. You can verify UL listings directly through UL's online product directory. Avoid products that claim fire resistance without third-party certification.
Yes. Fire-rated hinges can be installed on standard doors without any issues. In fact, their heavy-duty construction often makes them a good choice for high-traffic commercial doors regardless of fire rating requirements.
A fire door is only as effective as the complete assembly holding it together. The frame, the door, the seals, the locks—and yes, the hinges—all need to meet the required standards. Overlooking any one component puts the entire system at risk.
If you're specifying or sourcing fire rated door hinges, prioritize UL-listed or CE-certified products made from high-quality materials like SS304 stainless steel. Confirm the hinge rating matches the door rating, install the correct number per door height, and work with suppliers who can provide full documentation.
