Every door in a commercial building tells a story about safety. But when an emergency strikes—a fire, a power outage, a sudden evacuation—one piece of hardware becomes more critical than any other: the panic device. Found on exit doors across schools, hospitals, office buildings, and public venues, panic hardware on doors is a life-safety essential that most people never think about until they need it.
This guide breaks down exactly what a panic device mechanism is, how it works, the different types available, and what to consider when choosing the right panic hardware for your building.

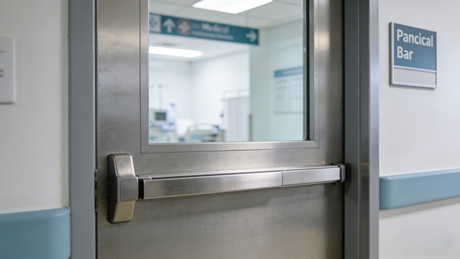

A panic device—also called an exit device or crash bar—is a door-latching mechanism designed for emergency egress. It allows a door to be opened quickly and easily by pushing a horizontal bar or pad, without requiring any special knowledge, keys, or force to operate.
The core principle is simple: in an emergency, people instinctively push toward a door. Panic hardware on doors is built around that instinct. A single push on the bar releases the latch and opens the door, even in crowded or chaotic conditions.
Panic devices are required by building codes in many jurisdictions for high-occupancy spaces, fire-rated doors, and any exit that serves as a means of egress. In the United States, they must comply with ANSI/BHMA A156.3 standards, while European markets follow EN 1125 specifications.
The panic bar mechanism is more sophisticated than it looks. Here's a step-by-step breakdown of what happens when the bar is activated:
Pressure is applied to the touch bar. When someone pushes the horizontal bar (also called the crossbar or touchpad), it moves inward, typically just a few centimeters.
The latch retracts. The bar's movement is mechanically linked to the latch bolt. Pushing the bar pulls the latch back from the door frame, disengaging it from the strike plate.
The door swings open. With the latch retracted, the door can swing freely in the direction of egress—always outward on exit doors.
The mechanism resets automatically. Once pressure is released, the spring-loaded system returns the bar and latch to their original locked position.
Some panic bar mechanisms also incorporate a dogging feature, which allows the bar to be held in the retracted position so the door can swing freely without latching. This is commonly used during business hours in high-traffic areas.
Not all panic devices are built the same. The right choice depends on the door type, usage level, and compliance requirements.
The most common type, rim devices mount directly onto the surface of the door. The latch engages a strike plate on the door frame. They're versatile, relatively easy to install, and suitable for most single-door applications.
These incorporate a mortise lock body inside the door itself, offering more robust locking and additional functions like deadbolting. Mortise-based panic hardware is common on high-security or fire-rated doors.
Instead of a single latch at the edge of the door, vertical rod devices extend rods up and down the door, engaging strikes at the top and bottom. This makes them ideal for double doors or wide doors that need secure, multi-point latching.
Functionally similar to vertical rod devices, but the rods are hidden inside the door—offering a cleaner aesthetic without sacrificing performance. These are popular in commercial spaces where appearance matters.
Panic hardware on doors must meet recognized safety standards to be code-compliant. The two dominant frameworks are:
ANSI/BHMA A156.3 (US Standard): Governs exit devices in North America. Devices are graded by durability—Grade 1 being the highest, suitable for heavy commercial use. UL 305 certification further classifies hardware as panic hardware specifically.
EN 1125 (European Standard): Covers panic exit devices for use in public buildings. Compliance requires the device to operate with a single pushing movement and without the use of a key from the inside.
At Keyman Lock, all panic exit devices are manufactured to meet ANSI/BHMA A156.3 and UL standards, including fire-rated certification to UL 10C and ULC-S104 (3-hour rating). Their product lineup includes aluminum and stainless steel options, designed to accommodate both horizontal and vertical panic lock mechanisms across a range of commercial applications.
When evaluating panic hardware, several features determine long-term performance and reliability:
Fire rating: If the door is fire-rated, the exit device must match that rating. A 90-minute door needs 90-minute-rated hardware.
Material durability: Stainless steel offers superior corrosion resistance for high-humidity or outdoor-adjacent applications. Aluminum is lighter and cost-effective for standard commercial use.
Dogging capability: Useful for high-traffic areas during business hours, but must be disabled on fire-rated doors.
Outside access trim: Some panic devices include a lever, knob, or cylinder trim on the exterior side, allowing keyed entry from outside while maintaining emergency egress from inside.
Grade rating: For heavy commercial use, specify Grade 1 hardware. Lower grades may not hold up under repeated daily use.
1
Panic bar mechanisms appear in virtually every category of commercial and institutional building:
Schools and universities — Required on most exterior and stairwell doors
Healthcare facilities — Hospitals and clinics need fast egress and often require fire-rated panic hardware
Office buildings — Stairwells, lobby exits, and parking garage doors
Retail and hospitality — Back-of-house exits and emergency egress routes
Government and public buildings — High foot traffic and strict code compliance requirements
1
Even the best panic hardware won't perform reliably without proper installation and routine maintenance.
Installation: Panic devices must be mounted at the correct height (typically 34–48 inches above the floor in the US), aligned precisely with the strike plate, and secured with appropriate fasteners for the door material. Misalignment is one of the most common causes of latch failure.
Maintenance: Regular inspection should include checking for smooth bar operation, latch retraction speed, door alignment, and any signs of wear on the latch bolt or strike. Lubricating moving parts annually extends hardware life significantly. For fire-rated assemblies, inspections may be required by local fire codes.
Selecting panic hardware isn't just about meeting the minimum code requirement. Consider the full context of use: How many cycles per day will the device see? Is the door fire-rated? Does the exterior need keyed access? Will aesthetics matter to the client?
For specification-grade commercial projects, working with a manufacturer that holds verified ANSI, UL, and CE certifications—and can support custom or OEM requirements—makes the procurement process significantly smoother. Keyman Lock, with over 20 years of hardware manufacturing experience, produces a comprehensive range of panic exit devices, including aluminum and stainless steel models certified to both ANSI/UL and EN 1125 standards.
Panic hardware is one of those building components that rarely draws attention—until something goes wrong. Specifying the right panic bar mechanism from the start protects occupants, satisfies code requirements, and reduces long-term maintenance costs.
Whether you're outfitting a single fire-rated exit or specifying hardware across a multi-story commercial development, understanding how panic devices work and what standards apply is the foundation of a sound decision.
