Securing a commercial building requires hardware that can withstand heavy use, attempted breaches, and extreme emergencies. Standard cylindrical locks often fail under immense pressure or frequent daily traffic. Facility managers and security professionals need a solution designed specifically for high-traffic, high-risk environments.
The American Mechanical Mortise Lock provides an exceptional level of security and durability. Unlike standard locks that simply sit on the surface of the door, this lock is installed within a pre-cut slot at the edge of the door. This internal pocket, known as a mortise, houses the lock chassis securely inside the door itself. The result is a heavy-duty locking mechanism that resists tampering and forced entry.
Reading this guide will help you understand the core features, certifications, and variations of these commercial locks. We will explore the specific industry standards these locks meet, examine the differences between a Sectional Mortise Lock and an escutchoen Mortise Lock, and review the door thickness requirements for proper installation.
A mortise lock assembly contains several working parts made of high-strength steel alloy, with bolts typically constructed from solid stainless steel. Placing the lock body inside the door provides superior mechanical advantage and structural integrity. Intruders cannot easily pry or bypass the lock because the door itself protects the internal mechanisms.
Commercial door hardware must adhere to strict testing guidelines to ensure reliability during emergencies. The American Mechanical Mortise Lock meets several critical industry standards.
First, these locks are BHMA listed. The Builders Hardware Manufacturers Association sets the benchmark for quality and performance in commercial hardware.
Second, the lock meets the rigorous ANSI/BHMA A156.13 Grade 1 specification. Grade 1 is the highest level of security and durability awarded by the American National Standards Institute. A Grade 1 mortise lock can endure millions of cycles, making it the perfect choice for hospitals, schools, and busy office buildings.
Finally, safety goes beyond preventing break-ins. Fire safety is a massive concern for commercial properties. These heavy-duty locks are UL listed for a 3-Hour Fire Rating. During a fire, the hardware will maintain its integrity for up to three hours, keeping fire doors securely latched to prevent the spread of smoke and flames.
Installing a mortise lock requires precise door measurements. Because the lock body slides into a pocket cut into the door's edge, the door must be thick enough to accommodate the hardware without weakening the wood or metal.
The standard door thickness for an American Mechanical Mortise Lock is 1-3/4 inches (45mm). This is the most common size for commercial doors. However, manufacturers offer optional sizes to fit different architectural needs. You can request hardware suitable for a narrower 1-3/8 inch (35mm) door or a much thicker 2-1/2 inch (64mm) door. Always verify your door measurements before ordering to ensure the lock chassis fits perfectly within the mortise.

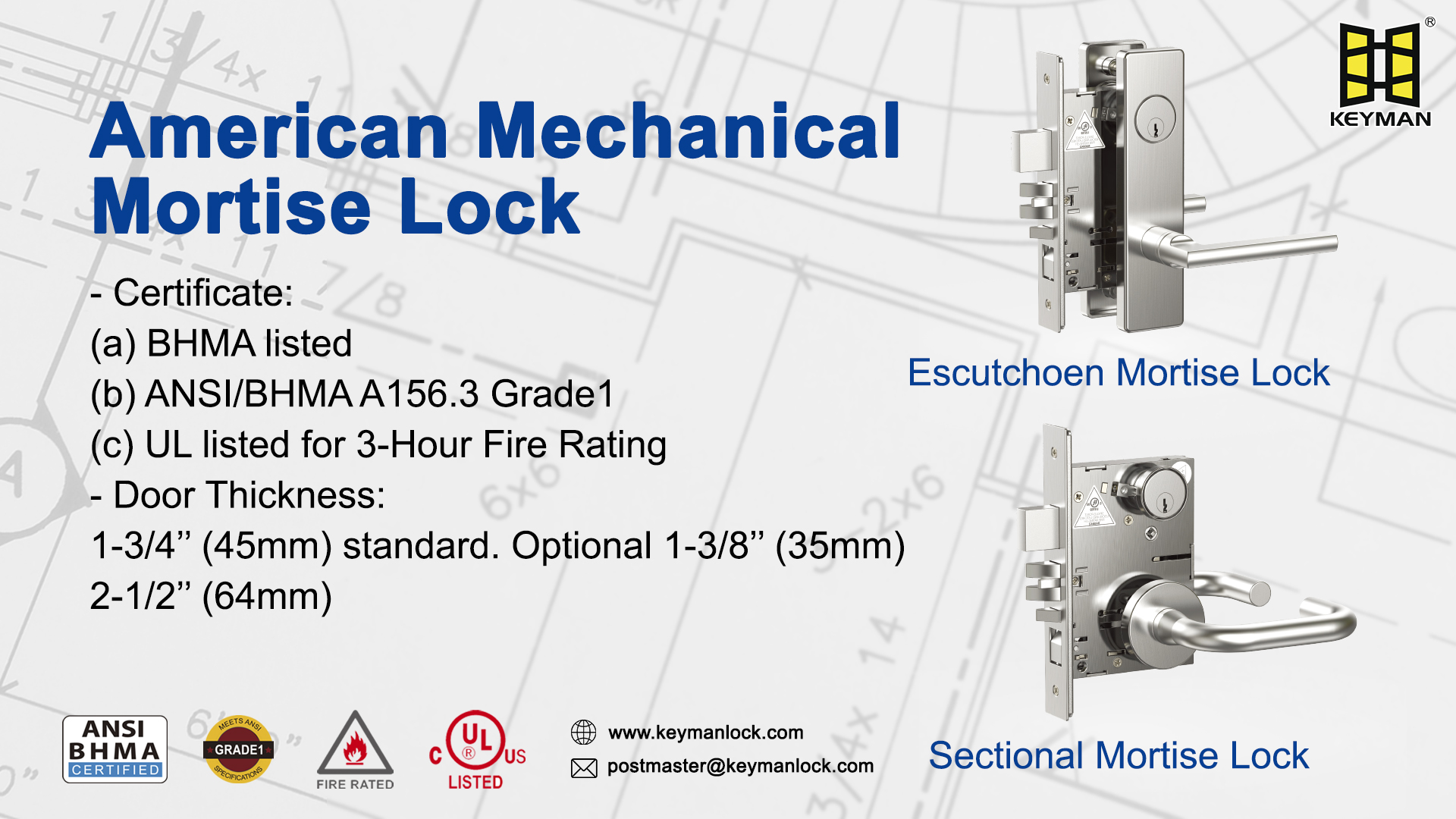

The internal lock body provides the security, but the external trim provides the functionality and aesthetic appeal. Buyers typically choose between two main styles of exterior trim: the Sectional Mortise Lock and the escutchoen Mortise Lock.
A Sectional Mortise Lock features separate pieces of trim for the door handle (lever or knob) and the key cylinder. The handle has its own small circular or square base, known as a rose, while the key cylinder sits slightly above it with its own minimal metal collar.
This design creates a sleek, minimalist look on the door. Many architects prefer the sectional style for modern office spaces because it looks less bulky. If a piece of the trim gets damaged, you can often replace just the handle or just the cylinder collar without buying a whole new exterior setup.
An escutchoen Mortise Lock uses a single, continuous metal plate that covers both the door handle and the key cylinder. This tall, rectangular plate sits flat against the surface of the door.
Using an escutcheon plate provides additional protection for the door surface. It prevents scratches from keys and covers any minor blemishes left behind by the mortise pocket installation. Escutcheon trims are highly popular in heavy commercial and industrial settings where durability and a bold, traditional appearance are prioritized.
Relying on residential-grade hardware for a commercial building puts your assets and occupants at risk. Upgrading to an American Mechanical Mortise Lock ensures your facility benefits from Grade 1 durability, heavy-duty stainless steel components, and essential fire safety ratings.
Take a walk through your facility and inspect your current door hardware. If your high-traffic entryways rely on standard cylindrical locks, it is time to consult with a commercial hardware specialist. Evaluate your door thicknesses, decide between a sectional or escutcheon trim, and invest in a locking system built to last.
