Building safety is a complex field governed by strict codes and standards. Among the most critical components in any commercial or public building are its exit devices. You may have seen them countless times—the horizontal bars on doors that open with a simple push. But not all exit devices are created equal. When it comes to ensuring a safe and rapid exit during an emergency, the designation "UL panic rated" is incredibly important.
Understanding what a UL panic-rated exit device is can help architects, building managers, and business owners make informed decisions that protect lives and ensure compliance with safety regulations. This guide will break down what this rating means, why it matters, and how it differs from other safety hardware. By the end, you'll have a clear picture of this essential safety feature and its role in modern construction.
Before we look at panic hardware, it’s important to understand the role of UL. UL stands for Underwriters Laboratories, a global safety certification company that has been testing products and setting safety standards for over a century. When a product is "UL Rated" or "UL Listed," it means it has undergone rigorous testing by UL and meets their specific safety, quality, and performance standards.
This certification is a mark of trust for consumers and regulators. It confirms that a product has been independently verified to perform safely and reliably under specific conditions. For building materials and safety equipment, a UL rating is often a non-negotiable requirement to comply with local and national building codes.

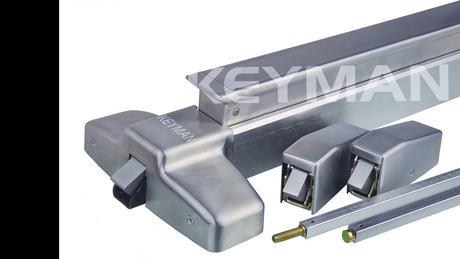

A panic exit device, also known as a crash bar or panic bar, is a type of door-latching hardware designed for fast and easy egress during an emergency. The core principle is simple: it allows a locked door to be opened from the inside with a single push, without needing to turn a knob or use a key. This mechanism is crucial in situations like a fire, where smoke can obscure vision and people may be panicking, making fine motor skills difficult.
The International Building Code (IBC) and standards from the National Fire Protection Association (NFPA) mandate the use of panic hardware in certain buildings, particularly those with high occupancy loads like schools, theaters, and large assembly halls. The goal is to prevent a scenario where a crowd surges toward an exit, only to be trapped by a complex or locked door mechanism.
When these two concepts combine, you get a UL panic-rated exit device. This is a piece of hardware that not only functions as a panic bar but has also been specifically tested and certified by Underwriters Laboratories under their UL 305 standard, "Standard for Panic Hardware."
To earn this rating, the device must pass a series of demanding tests designed to simulate real-world emergency conditions. These tests evaluate:
· Durability and Cycle Testing: The device must withstand a high number of opening and closing cycles (often hundreds of thousands) without failing. This ensures it remains functional over a long service life of regular use.
· Pressure and Force Application: The tests measure the amount of force required to unlatch the door. The standard requires the door to open with minimal pressure (typically no more than 15 pounds of force), ensuring that anyone, including a child or an elderly person, can operate it.
· Performance Under Stress: The hardware is tested to ensure it operates correctly even when a significant force is applied to the door itself, simulating a crowd pushing against it during an evacuation.
· Material Integrity: The materials used in the device are examined for strength, corrosion resistance, and their ability to withstand wear and tear.
A device that successfully passes these tests is certified as a UL panic exit device. This certification provides a guarantee that the hardware will perform as expected during a critical emergency, providing a reliable means of escape.
While browsing for exit hardware, you will likely encounter another common term: "fire rated." It's crucial to understand that a panic rating and a fire rating are not the same, although a single device can have both.
· Panic-Rated Hardware (UL 305): This rating is primarily concerned with life safety through quick and easy egress. The focus is on the operational mechanism allowing people to exit swiftly in a panic situation.
· Fire-Rated Hardware (UL 10C): This rating pertains to fire containment. Fire-rated exit devices are designed to be used on fire doors, which are part of a fire-rated assembly (including the door, frame, and hardware). These devices must not only allow for egress but also maintain the integrity of the fire door during a fire. They are built to withstand high temperatures for a specific duration (e.g., 90 minutes, 3 hours) and ensure the door remains latched to prevent the spread of fire and smoke.
A key difference is that fire-rated exit devices cannot feature a "dogging" mechanism, which is a function that allows a panic bar to be held in the unlocked, retracted position for push/pull operation. On a fire door, the latch must always engage when the door closes to maintain the fire barrier.
For many applications, particularly on fire-rated doors that also serve as a primary means of egress in a high-occupancy area, you will need an exit device that is both fire-rated and panic-rated.
Building codes, specifically the IBC and NFPA 101 (Life Safety Code), dictate where panic hardware is mandatory. While specific requirements can vary by jurisdiction, the general guidelines require UL panic exit devices in:
· High-Occupancy Areas: Buildings classified for assembly (like theaters, concert halls, and nightclubs) or education (schools and universities) with an occupant load of 50 or more.
· High-Hazard Areas: Any room or building classified as high-hazard, regardless of the occupant load, requires panic hardware. These are areas where flammable materials or other hazards are present.
The purpose is always to facilitate the safe and orderly evacuation of a large number of people without delay. Using a standard doorknob in these environments could lead to a catastrophic failure during an emergency.
Choosing the right hardware is more than a matter of compliance; it's a fundamental responsibility for anyone involved in building design, construction, or management. A UL panic-rated exit device is a testament to a commitment to safety, offering verified, reliable performance when it matters most. It ensures that in a moment of crisis, a door is not an obstacle but a clear path to safety.
By understanding the significance of the UL 305 standard and distinguishing it from fire ratings, you can make smarter, safer choices for your building projects. For your next project, ensure you consult with a hardware specialist to select the appropriate rated devices that meet both your building's functional needs and the stringent requirements of life safety codes.
