Ensuring the safety and accessibility of your commercial building is a top priority. A crucial component of this is providing a clear and easy means of exit during an emergency. Storefront aluminum doors, common in retail shops and office buildings, often require a specific type of hardware to meet safety codes: the panic exit device.
This guide will walk you through the process of adding a panic exit device to a storefront aluminum door. We'll cover everything from selecting the right hardware to the step-by-step installation process. By following these instructions, you can ensure your building is both secure and compliant with safety regulations, providing peace of mind for you, your employees, and your customers.
A panic exit device, also known as a crash bar or push bar, is a piece of hardware installed on a door that allows people to exit quickly during an emergency. Unlike a traditional doorknob or lever, a panic bar unlatches the door when pressure is applied to the horizontal bar. This design is intuitive and requires no special knowledge to operate, making it ideal for high-traffic areas and emergency exit routes.
For storefront aluminum doors, these devices are not just a good idea—they are often a legal requirement. Building codes, like those from the National Fire Protection Association (NFPA), mandate their use in certain commercial settings to facilitate safe and rapid evacuation.
Proper preparation is the key to a smooth installation. Before you start drilling into your door, gather all the necessary tools and materials.
· Drill and a set of drill bits (including a step bit if available)
· Tape measure
· Level
· Screwdriver set (Phillips and flathead)
· Center punch
· Marker or pencil
· Safety glasses
· The manufacturer's installation template (usually included with the device)
Not all panic bars are created equal. You need to choose a device specifically designed for narrow stile aluminum storefront doors. These doors have thin vertical frame components, so a standard panic bar might not fit.
When selecting your device, consider the following:

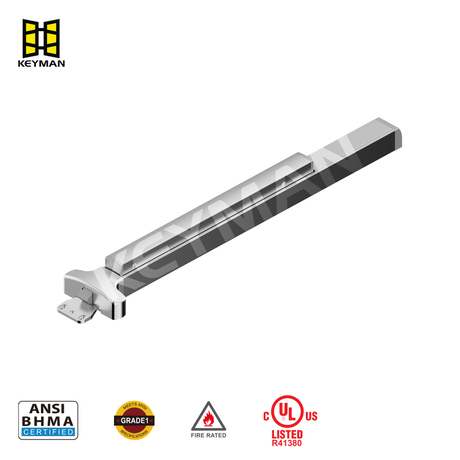

· Type: Rim exit devices are the most common for single storefront doors. They have a surface-mounted latch that catches on a strike plate installed on the door frame.
· Door Width: Measure your door's width and purchase a panic bar that fits. Most are designed for standard 36-inch or 48-inch doors but can often be cut to size.
· Handing: Determine if your door is left-handed or right-handed. While many modern devices are non-handed (reversible), it's always best to check.
· Finish: Choose a finish that matches your existing door hardware, such as aluminum or dark bronze.
Once you have your tools and the correct device, you can begin the installation. Always refer to the specific instructions provided by the manufacturer, as steps may vary slightly between models.
The installation template is your most important tool for ensuring accuracy.
1.Determine the Height: The standard height for a panic bar is between 34 and 48 inches from the finished floor to the centerline of the bar. Check your local building codes for specific requirements.
2.Tape the Template: Securely tape the paper template to the interior face of the door at your chosen height. Use a level to make sure the template is perfectly horizontal.
3.Mark the Holes: Use a center punch or a sharp tool to mark the center of each screw and cylinder hole indicated on the template. These marks will guide your drilling.
With your holes marked, it’s time to drill.
1.Wear Safety Glasses: Protect your eyes from metal shavings.
2.Start with a Pilot Hole: Use a small drill bit to create pilot holes at each marked location. This prevents the larger bit from "walking" or slipping.
3.Drill the Final Holes: Switch to the drill bit size specified in the manufacturer's instructions. A step bit can be very useful for creating clean, correctly sized holes in aluminum. Drill all necessary mounting holes for the panic bar chassis and end cap. If you are installing an exterior lever or knob, you will also need to drill a larger hole for the cylinder tailpiece.
Now you can attach the main body of the device to the door.
1.Secure the Chassis: Position the main body (chassis) of the panic device over the drilled holes. Insert the mounting screws and tighten them, but don't fully tighten them just yet.
2.Attach the End Cap: Slide the end cap onto the other side of the door and secure it with its mounting screws.
3.Cut the Bar (If Necessary): If the push bar is too long for your door, you will need to cut it. Measure the distance between the chassis and the end cap mount, and cut the bar to size using a hacksaw or a metal-cutting saw. Be sure to deburr the cut end for a clean fit.
4.Install the Bar: Insert the cut bar into the chassis and end cap. Once everything is aligned, fully tighten all the mounting screws.
The strike plate is the part mounted on the door frame that the latch engages with.
1.Position the Strike: Close the door and press the panic bar to extend the latch. Mark where the latch bolt touches the door frame.
2.Align the Strike Plate: Open the door and align the strike plate with your marks on the frame. Use the template if one is provided for the strike.
3.Mark and Drill: Mark the screw holes for the strike plate. Drill pilot holes into the aluminum frame.
4.Secure the Strike: Attach the strike plate to the door frame using the provided screws. Some kits include shims to place behind the strike if there is a large gap between the door and the frame.
Testing is the final, crucial step.
1.Check the Latch: With the door open, press the panic bar. The latch should retract smoothly. Release the bar, and the latch should extend fully.
2.Test with the Door Closed: Close the door and ensure it latches securely into the strike plate.
3.Simulate an Exit: Push the panic bar firmly from the inside. The door should unlatch and swing open without any binding or excessive force.
4.Check Exterior Access (If Applicable): If you installed an exterior lever or key cylinder, test its function. Ensure the key can lock and unlock the exterior trim and that the lever retracts the latch.
Installing a panic exit device on a storefront aluminum door is a manageable project that significantly enhances the safety of your property. By carefully selecting the right hardware and following a systematic installation process, you can ensure your emergency exits are reliable and compliant with safety codes.
If you are ever in doubt about local regulations or feel the installation is beyond your skill level, do not hesitate to contact a professional locksmith or door hardware specialist. Their expertise guarantees that the job is done correctly, providing security and peace of mind for everyone who uses your building.
