You’ve probably used one hundreds of times without giving it a second thought. It’s that long, horizontal bar on the inside of an emergency exit door that you push to open. This simple mechanism, known as a panic bar, is a critical safety feature in public and commercial buildings. It’s designed to allow large groups of people to exit a building quickly and safely during an emergency.
While its function seems straightforward, there's a lot more to a panic bar than meets the eye. From specific building code requirements to different types and fire safety ratings, understanding these devices is essential for any business owner, facility manager, or safety professional.
This guide will explain exactly what a panic bar is, how it works, the different types available, and why it's a non-negotiable component of building safety. By the end, you'll have a clear understanding of this vital piece of hardware and its role in protecting lives.
A panic bar, also known as a crash bar, exit device, or push bar, is a type of door-opening hardware that allows a door to be opened by pushing on a bar. Unlike traditional doorknobs or levers that require turning or twisting, a panic bar unlatches the door with a simple push. This design is crucial in emergency situations, such as a fire or an active threat, where quick, easy, and unobstructed egress is necessary.
The core principle behind the panic bar is its intuitive operation. In a high-stress scenario, people naturally push against doors to escape. A panic bar leverages this instinct, ensuring that even in a panicked state, or with hands full, a person can easily open the door. This mechanism is installed on the interior side of outward-swinging doors, preventing it from being blocked by crowds and facilitating a smooth flow of people out of the building.
The invention of the panic bar was born from tragedy. Several devastating fires in the late 19th and early 20th centuries highlighted a deadly flaw in building design: inward-swinging doors and complex latches that became impossible to operate in a panicked crowd.
One of the most notable incidents was the Iroquois Theatre fire in Chicago in 1903, which claimed over 600 lives. Many victims were trapped inside because the doors either opened inward or were fitted with complicated latches that couldn't be opened against the crush of people. Another tragic event was the Victoria Hall disaster in Sunderland, England, in 1883, where 183 children died in a stampede when a door was bolted from the outside.
These events spurred public outcry and led to significant changes in building safety regulations. In the United States, Carl A. Prinzler, a hardware salesman who lost a family member in the Iroquois fire, was driven to find a solution. He co-invented and patented the first panic bar, and his design laid the foundation for the modern exit devices we use today.
The mechanism of a panic bar is designed for reliability and ease of use. When you push the bar, it retracts a latch or bolt from the door frame, allowing the door to swing open. Here’s a breakdown of its components and operation:
· The Push Bar/Pad: This is the part you physically press. It spans a significant portion of the door's width, ensuring it can be activated from almost any point along its length.
· The Latching Mechanism: The bar is connected to a latching mechanism, which can vary depending on the type of device. Common types include a vertical rod system (with latches at the top and bottom of the door) or a mortise lock system (where the latch is housed within the door itself).
· Actuator/Chassis: This is the main assembly that houses the internal workings. Pushing the bar activates the actuator, which in turn retracts the latch.
When pressure is applied to the bar, the internal mechanism smoothly retracts the latch, releasing the door. The entire process requires minimal force and no prior knowledge of how to operate it, making it ideal for the general public during an emergency.
Panic bars come in various designs to suit different door types, security needs, and aesthetic preferences. The three main types are the touch bar, the cross bar, and the integral bar.
This is the most common type of panic bar found in modern buildings. It features a flat, wide bar or "push pad" that is pressed to release the door latch. Touch bars are considered more aesthetically pleasing and are less obtrusive than other styles. They can be integrated with alarm systems to sound an alert when the door is opened, providing an extra layer of security against unauthorized use.
The cross bar is the original design, reminiscent of early 20th-century models. It consists of a simple bar that extends across the door, pivoting in the center or at the ends when pushed. While highly functional and durable, this style is often seen as more industrial and is less common in new constructions, though it remains a reliable option for many facilities.

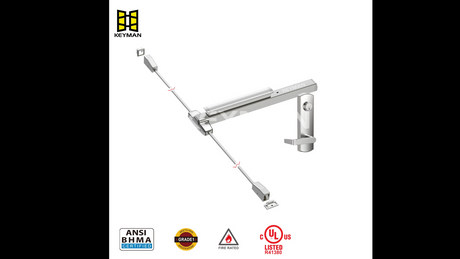

This type is used for double doors or doors that require latching at both the top and bottom for added security and stability. When the bar is pushed, it retracts vertical rods that run along the door's surface or are concealed within it. These rods disengage latches at the top of the door frame and at the floor, allowing both doors to swing open freely.
When a panic bar is installed on a fire-rated door, it is known as a Fire Panic Bar or a fire-rated exit device. These devices are specifically tested and certified to withstand the intense heat of a fire for a specific duration (e.g., 90 minutes or 3 hours).
A Fire Panic Bar is different from a standard panic bar in a few key ways:
· Material: It is constructed from heat-resistant materials that won't melt or warp in a fire, ensuring the door remains latched and compartmentalizes the fire.
· No Dogging: A "dogging" feature allows a standard panic bar to be held in a retracted (unlatched) position, letting the door operate as a simple push/pull door. Fire-rated panic bars are not permitted to have this feature. The door must positively latch each time it closes to maintain the fire barrier.
· Listing and Labeling: A Fire Panic Bar must be certified by a recognized testing agency like Underwriters Laboratories (UL). The UL label on the device confirms it has met the rigorous standards for fire safety.
Using a fire-rated exit device on a fire door is not just a good idea—it's a legal requirement mandated by building codes like those from the National Fire Protection Association (NFPA).
Understanding the role and requirements of panic bars is fundamental to ensuring the safety of any commercial or public building. These devices are more than just door hardware; they are life-saving tools designed to function flawlessly when it matters most.
By choosing the right type of panic bar, ensuring it meets fire-rating requirements where necessary, and performing regular maintenance, building owners can provide a safe means of egress for everyone. Whether you are constructing a new building or updating an existing one, prioritizing compliant and high-quality exit devices is an investment in safety that can never be overstated.
If you have questions about which panic bar is right for your facility or need assistance with installation and compliance, consulting with a professional locksmith or door hardware specialist is always the best next step.
