Imagine a crowded theater, a bustling hospital corridor, or a busy school hallway. In these environments, hundreds—sometimes thousands—of people pass through doors every day. Now, imagine an emergency alarm triggers. In that critical moment, the hardware on the exit doors becomes the single most important mechanism in the building. It simply cannot fail.
Reliability in commercial door hardware is not just a matter of convenience; it is a matter of life safety. This is where the American National Standards Institute (ANSI) and the Builders Hardware Manufacturers Association (BHMA) step in. They created a grading system to help building owners and architects understand exactly what their hardware can handle.
Among these standards, ANSI Grade 1 stands as the highest level of certification available. But what does that label actually mean for your building's safety? Understanding the rigorous testing behind an ANSI Grade 1 exit device reveals why it is the only acceptable choice for high-traffic and high-risk environments. This article explores how this certification guarantees performance when it matters most.
To appreciate the value of Grade 1, you first need to understand the hierarchy of hardware grading. The BHMA certifies products into three distinct categories based on durability, strength, and material quality. These grades tell you how long a lock or panic bar will last under normal to abusive conditions.
While a Grade 3 lock might suffice for a quiet residential bathroom, it would fail catastrophically on a commercial emergency exit. Here is a breakdown of how the grades compare regarding operational cycles (how many times the door can be opened and closed):
Grade Level | Intended Application | Minimum Cycle Test | Impact Resistance |
|---|---|---|---|
Grade 1 | Heavy-duty commercial, industrial, and institutional use. | 500,000 - 1,000,000+ | High |
Grade 2 | Standard commercial or heavy-duty residential use. | 400,000 | Medium |
Grade 3 | Light residential use only. | 200,000 | Low |
For emergency exits, the difference between 400,000 cycles and 1,000,000 cycles represents years of additional service life and significantly higher reliability during a crisis.
An ANSI exit device does not earn a Grade 1 stamp easily. Manufacturers like Keyman Lock subject their products to a gauntlet of tests designed to simulate decades of abuse in a short period. This testing process ensures that the device remains functional even after extreme wear and tear.
The primary metric for reliability is the cycle test. For a product to be certified as Grade 1 under ANSI/BHMA A156.3 (the specific standard for exit devices), it must withstand a minimum of 500,000 cycles. However, top-tier manufacturers often push their products well beyond this minimum, ensuring the latch mechanism does not jam or degrade over time.
Emergency exits are often located in areas prone to rough handling. Delivery carts crash into them, people kick them open, and in panic situations, the force applied to the bar can be immense. Grade 1 certification involves static load tests where significant weight is applied to the latch and the bar. The hardware must maintain its integrity and keeps the door generated securely without warping or snapping.
Reliability also means resisting the elements. If an exit device rusts, the internal springs and latches can seize up. ANSI Grade 1 hardware undergoes salt spray testing to ensure the finish protects the mechanics, ensuring the door opens freely even in humid or coastal environments.

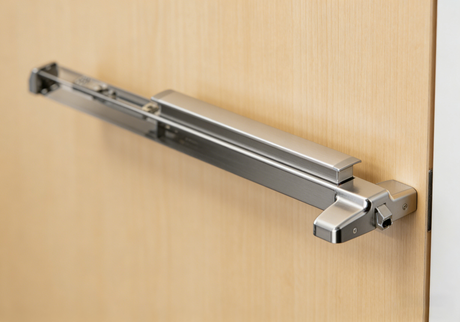

Panic bars (also known as crash bars or touch bars) are distinct from standard door handles because they must activate with simple pressure from any point along the bar. This design is critical for preventing crowd crushing during an evacuation.
Because of their complex internal mechanisms, panic bars are more susceptible to mechanical failure than a standard deadbolt if they are not built to high standards. An ANSI Grade 1 exit device ensures that the retraction mechanism—the part that pulls the latch back—is robust enough to handle the force of a rushing crowd without jamming.
For facility managers, installing Grade 1 devices helps mitigate liability. In the event of an accident, being able to prove that your facility utilizes top-tier, certified safety hardware demonstrates a commitment to code compliance and occupant safety.
One of the greatest challenges in building management is balancing the need for security (keeping intruders out) with safety (letting occupants out).
Lower-grade devices often compromise on this balance. A cheap panic bar might open easily but fail to latch securely afterwards, leaving the building vulnerable to theft. Conversely, a device that prioritizes security might have a stiff latch that is difficult for a child or elderly person to operate during a fire.
ANSI Grade 1 certification tests for both. It verifies that the latch bolt projects far enough to secure the door against forced entry, while simultaneously ensuring that the opening force required to retract the latch remains low enough for accessibility compliance. This dual-performance requirement is what makes Grade 1 hardware indispensable for schools, hospitals, and government buildings.
When selecting hardware, looking for the "Grade 1" label is the first step, but there are other factors to consider to ensure total reliability.
Fire Rating vs. Panic Rating: Not all exit devices are fire-rated. A standard "panic" device is designed to open instantly. A "fire exit" device is designed to latch securely to prevent fire from spreading, while still allowing egress. Ensure your Grade 1 device matches the specific fire code requirements of the doorway.
Material Quality: Look for stainless steel or heavy-duty aluminum construction, such as the X8 or X9 series offered by manufacturers like Keyman Lock. These materials offer superior resistance to bending and corrosion compared to zinc or plastic components found in lower-grade hardware.
Trim Compatibility: The "trim" refers to the handle or lever on the outside of the door. For the system to be reliable, the external trim must also meet Grade 1 standards to prevent unauthorized entry or mechanical binding.
The cost of maintaining a facility is high, and the temptation to save money on hardware is always present. However, the exit device is the wrong place to cut costs. A Grade 3 or uncertified device may look identical to a Grade 1 device on the shelf, but the internal components tell a different story.
By investing in an ANSI Grade 1 exit device, you are investing in peace of mind. You are ensuring that the door will latch securely every night to protect your assets, and more importantly, that it will open instantly every time to protect your people. Whether you are retrofitting an old building or designing a new one, insist on Grade 1 certification. It is the only way to ensure that when safety is on the line, your hardware will perform.
