Safety is non-negotiable in any commercial building. Whether you manage a school, a warehouse, or a retail store, the exits must function perfectly every single time. The panic bar—often called a crash bar or push bar—is the unsung hero of building safety. It allows for immediate, unhindered egress during emergencies. But what happens when you push that bar and it sticks, jams, or fails to latch properly?
A malfunctioning exit device isn't just an annoyance; it is a serious code violation and a safety hazard. If a fire inspector walks through your facility and finds a faulty panic bar door lock, you could face hefty fines. More importantly, if an emergency occurs, a stuck door could be catastrophic.
Before you spend hundreds of dollars on an emergency locksmith, you should know that many common issues with these devices are mechanical and can be fixed with basic tools. This guide will walk you through troubleshooting and repairing the most common problems associated with panic bars.
Before you start unscrewing hardware, it helps to identify exactly what type of hardware you are working with. While they all serve the same purpose, the mechanisms differ.

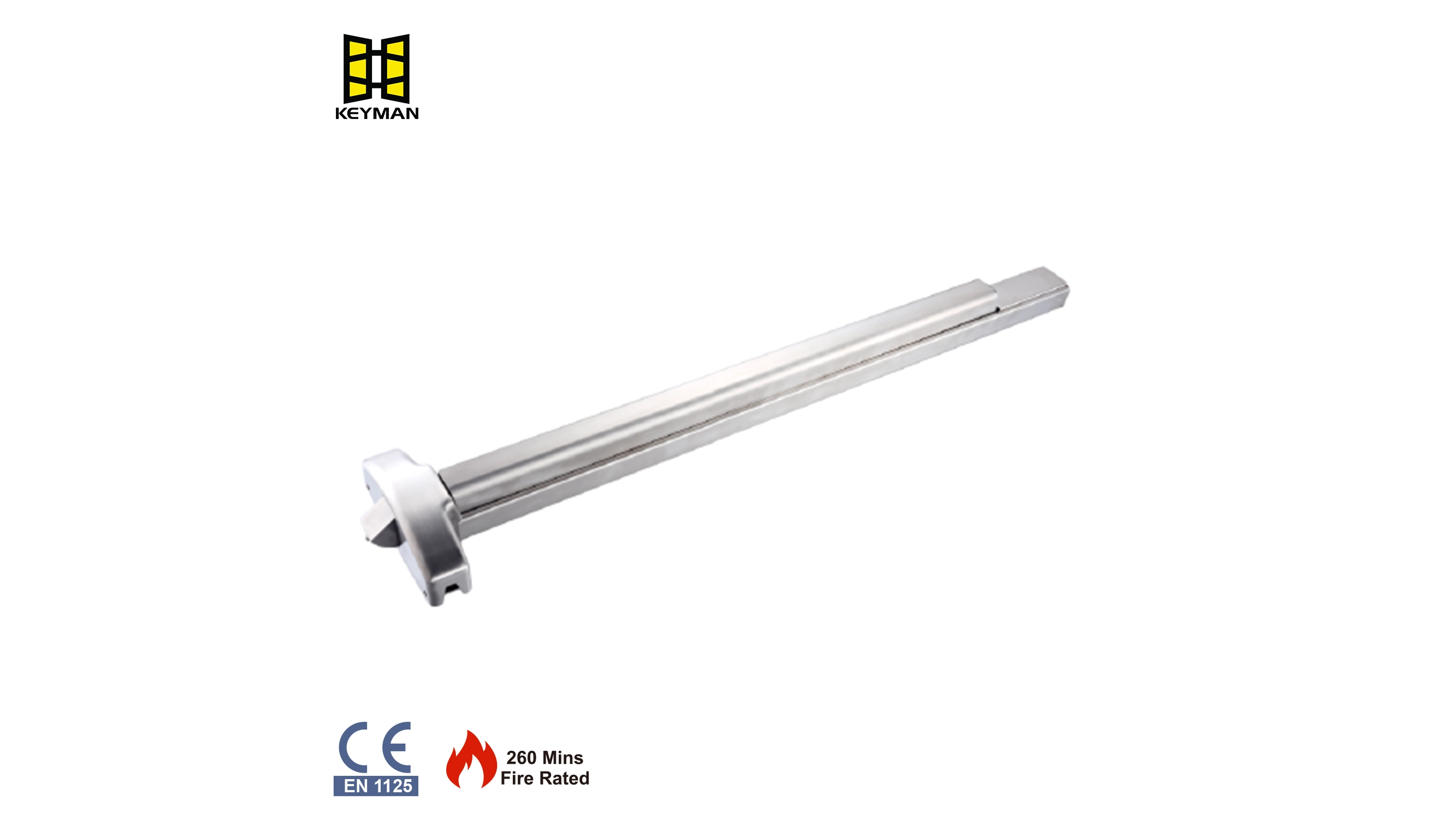

This is the most common type found on single doors. The latch bolt projects from the panic bar directly into a strike plate mounted on the door frame. These are surface-mounted and generally the easiest to repair.
You will often see these on double doors. Rods connect the push pad to latches at the top and bottom of the door frame. These are notoriously finicky because if the door alignment shifts even slightly, the top or bottom latch might not catch properly.
These look like a standard lock body installed inside the door itself, but they are operated by the push bar. These are heavy-duty and common in hospitals or schools.
Repairing a panic bar door lock usually requires only a few basic items. Gather these before you begin:
Screwdriver set: You will likely need both Phillips and flathead drivers.
Allen wrench set (Hex keys): Essential for adjusting the "dogging" feature (the mechanism that holds the latch retracted).
Lubricant: Avoid standard WD-40, which can attract dust and gum up the lock over time. Use a silicone-based lubricant or graphite spray.
Cleaning cloth: To remove grime and old grease.
Level: To check the door alignment.
Most panic bar failures come down to three culprits: loose screws, lack of lubrication, or misalignment. Here is a step-by-step approach to fixing them.
This is the most frequent issue. Panic bars take a beating. They are slammed, leaned on, and kicked open daily. Over time, the vibrations loosen the mounting screws.
The Fix:
Remove the end caps of the panic bar. Underneath, you will see the mounting screws that hold the chassis to the door. Tighten these screws firmly. If a screw simply spins and won't tighten, the screw hole in the door (especially on hollow metal doors) might be stripped. You may need to use a larger screw or install a "sex bolt" (a through-bolt) that goes all the way through the door for a secure hold.
If you push the pad and the latch stays out—or moves sluggishly—friction is your enemy. Dust, dirt, and metal shavings can accumulate inside the housing.
The Fix:
First, clean the latch bolt and the strike plate. Remove any visible debris. Next, take off the cover of the main chassis (the head of the device). Spray your silicone lubricant into the moving parts of the mechanism. Push the bar in and out several times to work the lube into the springs and levers. Wipe away any excess fluid so it doesn't drip.
Few things are more frustrating than a door that bounces back open. This usually happens because the door is sagging or the building has settled, causing the latch and the strike plate to become misaligned.
The Fix:
Check the gap between the door and the frame. The latch needs to line up perfectly with the hole in the strike plate.
For Rim Devices: Loosen the screws on the strike plate (on the frame). Most strike plates have slotted holes that allow you to slide them up, down, in, or out. Adjust the plate until the latch clicks in securely without dragging.
For Vertical Rods: This is trickier. You usually need to adjust the length of the rods. If the bottom rod is dragging on the floor, shorten it by threading it further into the connector. If the top latch isn't reaching the strike, lengthen the top rod.
"Dogging" the door means mechanically holding the latch retracted so people can pull the door open from the outside without a key, or push it open from the inside without engaging the bar. This is common in retail stores during business hours. If you turn the hex key and the bar pops back out, the mechanism is worn or loose.
The Fix:
Remove the cover plate on the hinge side of the panic bar. You will see a spring-loaded arm and a screw mechanism. Often, the retaining screw has just worked itself loose. Tighten it and test the hex key again. If the internal spring is snapped, you may need to order a "dogging kit" specific to your brand of panic bar door lock to replace just that internal assembly.
While DIY repairs can save money, there are specific scenarios where you should call a certified locksmith.
Fire-Rated Doors
If your door has a fire label (usually on the hinge edge), you must be extremely careful. Fire regulations strictly limit what modifications you can make. For example, you generally cannot dog open a fire door (it must remain latched to prevent fire spread). If you drill new holes or modify the hardware improperly, you void the fire rating, which is a major liability.
Broken Internal Components
If you open the chassis and see snapped springs or sheared metal pieces, lubrication won't help. While repair kits exist for major brands like Von Duprin or Sargent, identifying the exact part number can be difficult for a layperson.
Severe Door Misalignment
Sometimes the lock is fine, but the door or frame is physically warped. If the door scrapes the ground or hits the top of the frame, no amount of lock adjustment will fix it. You may need a door contractor to re-hang the door or install a continuous hinge.
The best way to avoid an emergency repair is proactive maintenance. Every six months, walk through your facility and test every panic bar door lock.
Check that the latch moves freely.
Ensure the door closes and latches on its own from a fully open position.
Tighten any visible screws.
Lubricate the touch points.
By keeping an eye on your hardware, you ensure that your building remains secure and, most importantly, safe for everyone inside.
