Quick answer:
To install a heavy duty brass flush bolt on a wood door, route a mortise into the edge of the inactive door leaf to fit the bolt's faceplate. Secure the hardware using screws, then install the top strike plate into the upper door frame and the brass flush bolt dust box into the floor sill.
Securing a set of double doors requires reliable hardware that keeps the inactive leaf firmly in place while allowing the active leaf to operate normally. When property owners want to maximize security without sacrificing aesthetics, they often turn to commercial-grade hardware. Installing the right bolt mechanism prevents the inactive door from rattling, warping, or being easily forced open.
Many installers prefer using a heavy duty brass flush bolt because solid brass offers exceptional strength and natural corrosion resistance. This material holds up well in high-traffic commercial spaces like hotels and offices, as well as in premium residential properties. The hardware sits flush against the door edge, providing a clean, unobtrusive look that blends seamlessly with the wood finish.

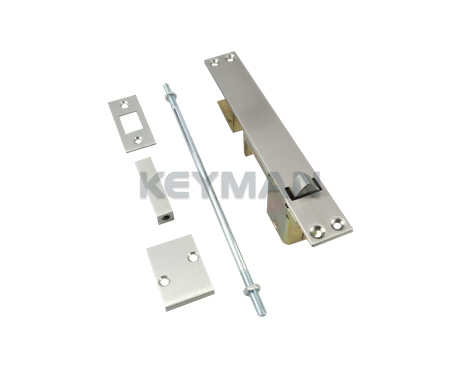

This guide will explain exactly how to install this essential hardware on your wood double doors. We will use the Keyman Lock QK8007 model as our primary reference, as it represents a standard automatic flush bolt designed specifically for wood composite doors up to 48 inches wide and 96 inches tall.
Choosing the right hardware dictates how well your double doors will function over time. A heavy duty brass flush bolt provides several distinct advantages over standard lightweight alternatives.
First, solid brass resists rust and degradation, making it ideal for exterior-facing doors or humid environments. The Keyman Lock QK8007 features a 5/8-inch (16mm) bolt throw and a 1/2-inch (12.7mm) bolt diameter, which provides substantial structural integrity against forced entry.
Second, installers must often decide between automatic and manual operation. Choose a heavy duty manual flush bolt if you want simple, independent control over when the inactive door is locked or unlocked. Choose an automatic model, like the QK8007, if convenience and fire safety compliance matter most. With an automatic system, opening the active door automatically retracts both the top and bottom bolts. When the active door closes, the bolts extend back into the frame and sill strikes.
Proper installation requires precise woodworking to ensure the faceplate sits perfectly level with the door edge. Before beginning the installation process, gather the following tools:
A router with a straight bit (or a sharp wood chisel and hammer)
A power drill with various wood drill bits
A tape measure and a combination square
A pencil or marking knife
A screwdriver (Phillips or flathead, depending on the provided screws)
Safety glasses and hearing protection
Installing flush bolts requires careful measurement and steady hands. These instructions apply to installing a pair of bolts at the top and bottom of the inactive wood door leaf.
Position the heavy duty brass flush bolt on the edge of the inactive door. For the Keyman Lock QK8007, the face size is 1 inch by 6-3/4 inches (25.4mm x 171mm). Trace the outline of the faceplate onto the top and bottom edges of the door using a sharp pencil or marking knife.
Use a router or a sharp wood chisel to remove the wood inside your marked outlines. The depth of the mortise must perfectly match the thickness of the flush bolt faceplate. A flush fit ensures the active door will not catch on the hardware when opening and closing. Next, carve out the deeper internal cavity required to house the internal spring-loaded lever and bolt mechanism.
Insert the flush bolt assembly into the newly created mortise pocket. Ensure the ergonomic finger grip lever sits smoothly within the recess. Pre-drill pilot holes for the mounting screws to prevent the wood door from splitting. Secure the hardware tightly using the provided screws.
Close the inactive door to mark the exact location where the top bolt meets the upper door frame. Drill a hole into the door frame to accommodate the bolt throw. Mortise a shallow pocket around this hole so the top strike plate can sit flush against the frame. Fasten the top strike plate with screws.
Repeat the alignment process for the bottom bolt. Mark where the bottom bolt meets the floor sill. Drill the necessary hole to accommodate the bolt extension.
When installing the bottom strike assembly, you must include a brass flush bolt dust box. The dust box is a small, enclosed metal receptacle that drops into the hole you drilled in the floor sill.
The brass flush bolt dust box protects the bottom bolt mechanism from accumulating dirt, wood chips, and floor debris. Without this protective box, debris quickly fills the floor hole, preventing the bolt from extending fully. When the bolt cannot fully extend, the inactive door remains unsecured. Using the included solid brass dust box guarantees smooth operation and reduces long-term maintenance requirements.
Installing a heavy duty brass flush bolt significantly improves the security and stability of commercial and residential double doors. By taking the time to carefully mortise the hardware and properly install the strike plates and dust box, you guarantee a professional finish that will last for years. For property owners looking for high-quality, ANSI-compliant hardware, manufacturers like Keyman Lock provide durable solutions engineered for seamless daily operation.
The cost depends on whether you install the hardware yourself or hire a professional. Purchasing a high-quality commercial flush bolt typically costs between $40 and $120 per unit. Hiring a professional carpenter or locksmith to perform the precise mortising and installation generally adds $100 to $250 in labor costs per door.
An experienced carpenter or locksmith can install a pair of flush bolts (top and bottom) in approximately one to two hours. A beginner attempting this as a DIY project should allocate three to four hours to carefully measure, route the mortise pockets, and install the brass flush bolt dust box.
If the mortise is too deep, the hardware will sit below the door edge, looking unprofessional and potentially weakening the door structure. If the mortise is too shallow, the protruding faceplate will scrape against the active door leaf, causing functional issues and damaging the wood finish.
If you do not want to manually engage the locking mechanism, the primary alternative is an automatic flush bolt, such as the Keyman Lock QK8007. Another alternative is a surface-mounted slide bolt, which is much easier to install because it requires no mortising, but it lacks the clean, hidden aesthetic of a flush-mounted design.
Automatic flush bolts are highly recommended for commercial building owners, hotel operators, and office managers. They are specifically required in many jurisdictions for fire-rated wood double doors, as they ensure the inactive leaf automatically secures itself during a fire emergency without requiring human intervention.
