Author: Site Editor Publish Time: 03-06-2026 Origin: Site
Quick answer:
Schools should choose ANSI Grade 1 panic bars over Grade 2 options because Grade 1 emergency exit devices are tested for 500,000 cycles to withstand the extreme daily abuse of educational facilities. Grade 1 hardware ensures strict compliance with ADA guidelines and NFPA fire codes to keep students safe during evacuations.
Securing an educational facility requires a delicate balance between keeping potential threats out and allowing occupants to leave rapidly during an emergency. Facility managers face the heavy burden of outfitting their buildings with hardware that can survive thousands of students pushing, pulling, and leaning on doors every single day. Standard commercial hardware simply fails under this level of physical stress.
Proper school door hardware prioritizes safety, security, and long-term durability. When administrators begin researching upgrades for their building's perimeter and hallway doors, they immediately encounter the Builders Hardware Manufacturers Association (BHMA) grading system. The choice almost always comes down to ANSI Grade 1 or ANSI Grade 2 hardware.
Understanding the difference between these two classifications is critical for maintaining building security and passing strict fire inspections. This guide explores the exact testing standards behind these grades, explains why certain materials matter, and helps facility managers choose the best emergency exit devices for their specific campus needs.
Table of Contents
The American National Standards Institute (ANSI) and the Builders Hardware Manufacturers Association (BHMA) created a unified grading system to measure the lifespan and durability of commercial door hardware. This system tests locks, hinges, and panic bars against heavy impacts and repeated usage.
ANSI Grade 1 represents the highest level of commercial security and durability available on the market. Manufacturers must prove that a Grade 1 panic bar can withstand a minimum of 500,000 cycles (openings and closings) without failing. These devices are constructed from heavy-duty steel or solid aluminum alloys to resist severe vandalism and extreme daily wear.
ANSI Grade 2 hardware is designed for medium-duty commercial applications. These devices are tested to withstand 250,000 cycles. While a Grade 2 device is perfectly suitable for a standard office building or a small retail store, it lacks the heavy-duty internal components required to survive the constant, forceful use seen in educational environments.

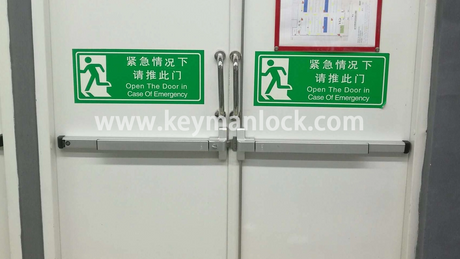

Schools experience a unique type of foot traffic. Hundreds of students surge through hallways, cafeterias, and perimeter doors simultaneously during class changes and dismissals. A standard school exit device takes a tremendous amount of physical abuse, from heavy backpacks hitting the push pads to students forcefully leaning against the doors.
According to industry safety experts, placing Grade 2 hardware on a high-traffic school door quickly leads to mechanical failure. When a panic bar breaks, the door may fail to latch securely, leaving the school vulnerable to unauthorized entry. Alternatively, the broken hardware could jam, trapping students inside during a fire or lockdown scenario.
Grade 1 emergency exit devices eliminate these risks. Because they are over-engineered for high-impact applications, they provide decades of reliable service. Furthermore, heavy-duty Grade 1 devices ensure continuous compliance with the Americans with Disabilities Act (ADA) and National Fire Protection Association (NFPA) codes. They maintain a smooth, easy-to-push mechanism that requires minimal force to operate, ensuring that even young children can open the door seamlessly.
When outfitting a campus, administrators need hardware that explicitly meets the rigorous demands of ANSI/BHMA A156.3 Grade 1 standards. Keyman produces two specific lines of emergency exit devices engineered for these environments: the X800 Aluminum series and the X900 Stainless Steel series.
Both the X800 and X900 series are certified to ANSI/BHMA A156.3 Grade 1 and ANSI/UL 305 standards for panic hardware. This means the internal mechanisms are guaranteed to release the latch quickly under pressure. Additionally, for doors designated as fire barriers, these devices carry a UL 10C and ULC-S104 3-hour fire rating. This specialized certification means the hardware will maintain the door's structural integrity and keep dangerous fire and smoke contained for up to three hours.
The X900 series utilizes stainless steel construction, which provides maximum resistance to corrosion. This makes the X900 an ideal school exit device for exterior doors exposed to rain and snow, or interior doors located near high-humidity areas like locker rooms and swimming pools.
Selecting the correct hardware depends entirely on where the door is located and how many students use it daily. Use these decision criteria to guide your purchasing process:
Choose ANSI Grade 1 school door hardware if your facility experiences high daily student traffic. Grade 1 is the mandatory choice for main entrances, cafeteria exits, gymnasium double doors, and stairwell fire doors. The heavy-duty construction will prevent frequent maintenance lockouts and ensure the building remains secure.
Choose ANSI Grade 2 hardware if you are outfitting a low-traffic interior space that is not part of a main emergency egress route. For example, a small faculty breakroom or an interior storage closet could safely utilize Grade 2 hardware, as these doors are only used a few times a day by adults.
Choose stainless steel emergency exit devices (like the Keyman X900 series) if the doors are exposed to the elements or high moisture. Choose aluminum devices (like the Keyman X800 series) if you need a durable, cost-effective Grade 1 solution for interior climate-controlled hallways.
Protecting an educational facility requires a layered, code-compliant approach to door hardware. Relying on residential or medium-duty commercial locks puts both student safety and your building's security at risk. By upgrading to heavily tested, Grade 1 certified panic bars, schools create a secure perimeter that also guarantees a safe escape during a crisis.
To evaluate your campus doors and find the exact Grade 1 hardware required for your local fire codes, reach out to a certified commercial hardware manufacturer. Reviewing your specific egress routes with an expert ensures every single door meets the highest standards of safety and durability.
An ANSI Grade 1 school exit device is tested to endure at least 500,000 cycles. In a typical school environment, a properly installed and maintained Grade 1 panic bar will reliably operate for 15 to 20 years before requiring full replacement.
No, fire-rated emergency exit devices cannot feature mechanical dogging. Dogging allows a push bar to be locked down so the door pushes open freely. Because NFPA fire codes require fire doors to positively latch when closed to stop the spread of smoke, fire-rated hardware must never be dogged open.
Yes, ADA compliance strictly dictates that door hardware must be operable with one hand and require no tight pinching or twisting. Grade 1 panic bars naturally meet these requirements by providing a wide push pad that releases the latch with minimal physical force, ensuring accessibility for all students and staff.
