A fire panic bar door is designed for one primary purpose: to allow quick and easy exit during an emergency. When you push the bar, the door should unlatch and swing open, clearing the path to safety. But what happens when you're on the outside and need to get in? Or what if the mechanism malfunctions, leaving the door secured when it should be open?
Understanding how to unlock a fire panic bar door from the outside is a crucial piece of knowledge for business owners, property managers, and even first responders. These doors are common in commercial buildings, schools, and theaters, and knowing how to operate them correctly ensures both security and accessibility.
This guide will walk you through the various methods for unlocking a fire door panic bar, depending on its specific features. We will cover keyed entry, keyless systems, and what to do if the door seems to be stuck, helping you manage access without compromising safety.

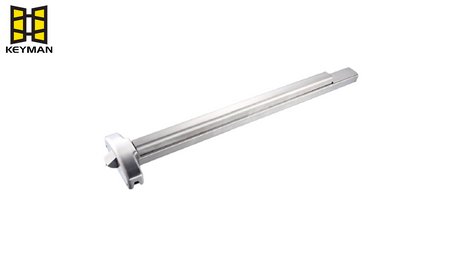

A fire panic bar, also known as a crash bar or an exit device, is a mechanism installed on an emergency exit door. Instead of a traditional doorknob or handle, it features a horizontal bar. Pushing this bar retracts the latch, allowing the door to be opened from the inside with minimal effort—even in a dark, smoke-filled room or amidst a crowd.
The primary function of a fire door panic bar is to provide fast egress during an emergency, such as a fire. For this reason, these doors must always be operable from the inside without a key or special knowledge. However, for security purposes, access from the outside is typically restricted. This is where different locking mechanisms come into play.
Unlocking a fire panic bar from the exterior depends entirely on the hardware installed on the door. Most are not designed to be opened from the outside without a specific mechanism in place. Here are the most common methods.
The most traditional method for exterior access is a standard key lock. This is typically integrated into a lever handle or a simple key cylinder on the outside of the door.
Lever Handle with Key: Many fire doors are equipped with an exterior lever handle that remains locked until a key is used. When you insert and turn the correct key, the lever engages the internal latch mechanism, allowing you to retract the latch and open the door. When the key is removed, the lever often returns to a locked state, meaning it will not open the door from the outside unless the key is used again.
Key-in-Lever: This is a common setup where the key cylinder is part of the lever handle itself. It's a secure and straightforward way to control access.
Rim Cylinder: Some doors have a standalone key cylinder, known as a rim cylinder, installed just above or beside the panic bar's exterior trim. Turning the key in the cylinder retracts the latch bolt of the panic device. This is a common feature on doors that don't have an external handle.
How to Use It:
Insert the Key: Place the correct key into the cylinder on the exterior side of the door.
Turn the Key: Rotate the key fully. You should feel the lock mechanism disengage.
Operate the Handle or Pull the Door: If there is a lever, push it down to open the door. If there is no handle, the act of turning the key may retract the latch, allowing you to pull the door open.
Relock if Necessary: Depending on the function, the door may automatically relock when closed, or you may need to turn the key back to secure it.
Modern commercial buildings are increasingly opting for keyless solutions. These systems offer enhanced security, logging capabilities, and the convenience of not having to manage physical keys.
Keypad Locks: A numeric keypad on the outside of the door requires a specific code to be entered. Once the correct code is punched in, the lock disengages for a short period, allowing you to open the door.
Card Readers: Common in corporate environments, these systems use a proximity card or fob. Swiping or tapping the card on the reader sends a signal to unlock the door.
Biometric Scanners: For high-security areas, a biometric scanner might be used. These systems grant access based on a fingerprint or retinal scan.
How to Use It:
Enter Credentials: Input your code, tap your card, or use the biometric scanner.
Wait for Confirmation: The system will typically provide an audible beep or a light indicator (e.g., green light) to confirm that the credentials have been accepted.
Open the Door: Operate the exterior lever or pull the door open while the lock is disengaged. These systems usually relock automatically after a few seconds.
"Dogging" is a feature on many panic bars that allows them to be temporarily unlocked for extended periods. When a panic bar is dogged, the latch is held in a retracted position, allowing the door to be pushed or pulled open from either side without needing a key or code.
Important Note: Fire-rated panic bars are not permitted to have a dogging feature. Holding the latch open on a fire door defeats its purpose, which is to remain closed and latched to prevent the spread of fire and smoke. Dogging is only found on non-fire-rated exit devices.
How to Dog a Panic Bar:
Push the Bar: Fully depress the interior panic bar.
Insert a Dogging Key: While the bar is pushed in, insert a small hex key (dogging key) into the designated hole on the bar mechanism.
Turn the Key: Rotate the key (usually a quarter or half turn). This will lock the bar in its depressed state.
Release the Bar: Let go of the panic bar. It should remain retracted, and the door will now be unlocked from both sides.
To undo the dogging, you simply reverse the process.
If you have the correct key or code but the fire door panic bar still won't open, there could be an issue with the mechanism.
Check for Obstructions: Ensure nothing is physically blocking the latch from retracting or the door from moving.
Lubricate the Lock: The key cylinder or internal mechanism may be stiff. A small amount of graphite lubricant can sometimes resolve this.
Verify the Latch Alignment: Over time, doors can sag or become misaligned. The latch bolt on the panic bar may no longer line up correctly with the strike plate on the door frame, preventing it from retracting properly.
Internal Mechanism Failure: Panic bars have complex internal components. A spring, rod, or other part could be broken. In this case, the device will likely need to be repaired or replaced by a professional locksmith.
Attempting to force the door open can cause significant damage to the door, frame, and locking hardware. If you are unable to open the door with the intended method, it is best to call a qualified locksmith who specializes in commercial doors and exit devices.
A fire panic bar is a life-safety device. Its reliability is non-negotiable. Regular inspection and maintenance by a professional ensure that it functions correctly during an emergency while remaining secure during normal operations. A locksmith can diagnose issues with alignment, wear and tear, and internal failures before they become a critical problem. They can also ensure your hardware complies with local fire codes and ADA requirements.
Understanding how to unlock a fire panic bar door is about more than just convenience—it’s about managing access without compromising the building's safety features. Whether using a key, a code, or another credentialed system, proper operation is essential. Remember to keep your exit devices well-maintained and to call a professional if you encounter any issues. This proactive approach ensures your doors will work as intended, providing a secure barrier when needed and a clear path to safety in an emergency.
