Panic bars, also known as crash bars or exit devices, are a ubiquitous sight in commercial buildings. From schools and hospitals to shopping malls and office complexes, these horizontal bars on doors ensure safe and quick egress during emergencies. But like any mechanical device, they suffer wear and tear over time. Whether it's a sticky latch, a broken spring, or a lost key, there comes a time when you might need to change or upgrade your panic bar lock.
If you are a facility manager or a business owner, you might be wondering if this is a DIY job or if you need to call a locksmith. The answer depends largely on the type of device you have and your comfort level with tools. Changing a panic bar lock isn't necessarily "hard," but it requires precision. A poorly installed exit device can compromise the safety of everyone in the building, violating fire codes and security protocols.
This guide will walk you through the essentials of panic bar locks, helping you understand when to replace them and the general steps involved in the process. We will also touch on high-quality options from manufacturers like Zhongshan Keyman Locks Proudcts Ltd. to ensure your new installation stands the test of time.
Before diving into the "how-to," it is crucial to understand the "what" and "why." A panic bar lock is designed for fast, unhindered exit. In an emergency, a crowd of people pressing against the door should be enough to unlatch it without anyone needing to turn a knob or handle.
Most panic bars consist of a few key components:
The Push Bar/Touch Pad: The part you physically push to retract the latch.
The Latch Mechanism: The bolt that holds the door shut.
The Strike Plate: The socket on the door frame where the latch sits.
The Dogging Device (Optional): A mechanism to hold the latch retracted, allowing free entry and exit during business hours.
Exterior Trim: The handle or lock cylinder on the outside of the door (if applicable).
1

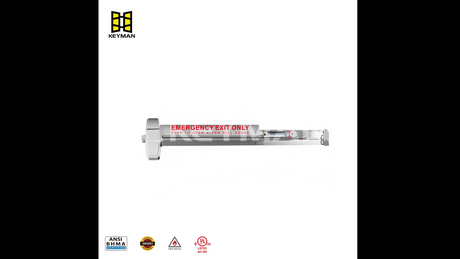

The primary function is safety (life safety code compliance). However, these devices must also provide security against unauthorized entry from the outside. Balancing these two needs is why choosing the right product is essential. For instance, the X600 Series Medium Duty Narrow Panic Exit Device from Zhongshan Keyman Locks Proudcts Ltd. is designed to offer robust security without compromising the swift exit required in emergencies.
You don't always need to wait for a total failure to replace your hardware. Here are common signs that it is time for a change:
Physical Damage: If the bar is bent, dented, or hanging loosely, it needs immediate replacement.
Sticking Latch: If the door doesn't open smoothly when the bar is pushed, or if the latch doesn't retract fully, it's a safety hazard.
Security Breach: If the lock mechanism is compromised or the key no longer works smoothly in the exterior cylinder.
Code Compliance: Older buildings may have outdated devices that no longer meet current ANSI or UL fire safety standards. Upgrading to a UL-listed device, like those offered by Keyman, ensures compliance.
1
Note: The following is a general guide. Always consult the specific installation manual provided by the manufacturer for your specific model.
Screwdriver (Phillips and Flathead)
Drill and drill bits
Measuring tape
Level
Pencil or marker
Allen wrench (hex key)
1
Start by removing the screws holding the existing panic bar to the door. You will usually find screws on the head case (the latch end) and the end cap (the hinge end). If there is exterior trim, such as a handle or cylinder, you may need to unscrew that as well.
If you are replacing the device with an identical model, the existing holes might line up. However, if you are upgrading to a new model, you likely need to drill new holes.
Use the template provided with your new Panic Bar Lock.
Mark the height. Standard installation is typically 40 to 42 inches from the finished floor.
Mark the backset (the distance from the edge of the door to the center of the cylinder or latch).
If your door requires outside access, install the exterior lever or pull handle first. Insert the cylinder tailpiece through the door so it engages with the panic device on the inside.
Align the head case (the operational part of the bar) with your drilled holes.
Ensure the tailpiece from the exterior trim enters the cam on the back of the panic device correctly.
Secure the head case loosely with screws.
Use a level to ensure the bar is perfectly horizontal. A slanted bar can cause the latch to jam.
Once level, mount the end cap bracket and secure the entire bar tightly.
The strike plate goes on the door frame.
Close the door and mark where the latch bolt hits the frame.
Install the strike plate so the latch engages fully but releases smoothly when the bar is pushed.
Crucial Step: Test the door multiple times. Push the bar lightly, then firmly. Ensure the latch does not bind.
Even with a careful installation, you might run into issues. Here is a quick reference table for common problems:
Problem | Possible Cause | Solution |
|---|---|---|
Latch drags on strike | Door sag or misalignment | Adjust the strike plate or tighten door hinges. |
Bar is hard to push | Internal spring damage or dirt | lubricate with dry graphite (avoid wet oil); replace if spring is broken. |
Door won't latch shut | Strike is too far back or obstructed | Move strike plate forward or clear debris. |
Exterior key won't turn | Tailpiece misalignment | Remove device and ensure tailpiece is centered in the cam. |
When replacing a critical safety device, quality is non-negotiable. You want a lock that meets international safety standards like UL (Underwriters Laboratories) and ANSI (American National Standards Institute).
Zhongshan Keyman Locks Proudcts Ltd. has been a professional hardware manufacturer since 1996. They specialize in high-standard hardware, including:
UL/ANSI Fire Rated Panic Exit Devices: Like the X8 Aluminum and X9 Stainless Steel series.
ANSI Grade 1 Mortise Locks: Designed for high-traffic commercial applications.
Mudiium Duty Narrow Panic Exit Devices: Specifically the X600 series, ideal for narrow stile doors often found in glass storefronts.
Choosing a reputable manufacturer ensures that replacement parts are available and that the device will function correctly when it matters most—during an emergency.
While possible, it is uncommon unless it's for a home business with specific code requirements. Panic bars are designed for commercial egress. For residential security, standard deadbolts or rim locks from manufacturers like Keyman are usually more appropriate.
"Dogging" feature allows you to mechanically hold the latch in the retracted position. This essentially turns the door into a push-pull door without latching, which is useful for high-traffic areas during business hours. Note that fire-rated doors typically cannot have dogging features as they must remain latched to prevent fire spread.
If the door is labeled as a fire door (look for a metal tag on the hinge edge), you must use a fire-rated panic device. These devices do not have mechanical dogging (usually) and are tested to withstand high heat.
Changing a Panic Bar Lock is a manageable task if you have the right tools and patience, but the most critical step is selecting the right hardware. A functioning exit device is not just a convenience; it's a lifeline.
If your current hardware is showing its age, don't wait for a failure. Assess your doors today and consider upgrading to compliant, durable hardware. For reliable, professional-grade solutions, check out the extensive catalog from Zhongshan Keyman Locks Proudcts Ltd. and ensure your building remains safe, secure, and up to code.
