Author: Site Editor Publish Time: 13-01-2026 Origin: Site
When it comes to commercial building security, safety and accessibility often seem at odds. You need to keep unauthorized visitors out, but you must also ensure that occupants can escape quickly during an emergency. This is where the push bar panic exit device with exterior lever comes into play.
These mechanisms are a staple in hospitals, schools, offices, and retail spaces, balancing the need for secure entry with the critical requirement for safe egress. But how do they work, and what makes them different from standard door hardware?
In this guide, we will explore the functionality, benefits, and specifications of these devices, helping you understand why they are an essential component of modern building safety.

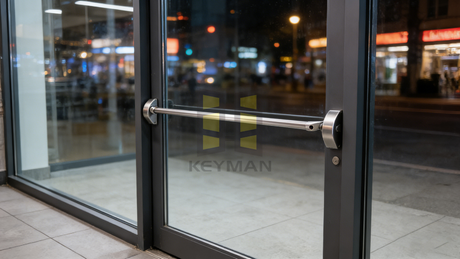

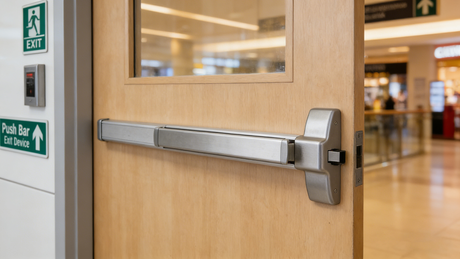

Before diving into the lever component, it's helpful to understand the core mechanism: the panic exit device. Often referred to as a "crash bar" or "push bar," this device is a horizontal bar fixed across the inside of an exit door.
The primary purpose of a panic exit device is life safety. In an emergency, such as a fire, a crowd of people rushing toward the exit might not have the calm or dexterity to turn a standard doorknob. With a panic bar, the simple act of pressing a body against the bar retracts the latch, allowing the door to open outward instantly.
For a device to be classified as a true panic exit device, it typically needs to meet specific codes, such as UL 305, which ensures the door can be opened with minimal force (usually under 15 pounds of pressure).
While the inside of the door is all about fast exit, the outside of the door is about controlled entry. This is where the "exterior lever" comes in.
A push bar panic exit device with exterior lever is a complete system that includes:
The Panic Bar (Interior): For free egress at all times.
The Lever Trim (Exterior): For accessing the building from the outside.
The exterior lever acts as the bridge between the secure outside world and the interior. Depending on the function you choose, this lever can be always locked, always unlocked, or key-controlled.
When selecting a lever trim for your panic device, you usually have a few functional options:
Entrance/Classroom Function: The lever can be locked or unlocked using a key. When unlocked, the lever retracts the latch, allowing entry. When locked, the lever is rigid or freewheeling, preventing entry, but the inside push bar always allows exit.
Storeroom/Night Latch Function: The exterior lever is always locked. Entry is only possible by using a key to retract the latch momentarily. This is common for service doors or employee-only entrances.
Passage Function: The lever is always unlocked and free to turn. This is used for doors that do not need to be secured, such as interior hallway doors.
1
You might see the term "36 panic push bar" when shopping for hardware. This refers to the length of the device, designed for a standard 36-inch (3-foot) door.
Building codes, such as the International Building Code (IBC), generally require that the actuating portion of the panic bar (the part you push) covers at least half the width of the door leaf. A 36-inch device is the standard size for most single commercial doors, ensuring compliance with these safety regulations.
If you have a wider door, such as a 42-inch or 48-inch door, you will need a longer device, often customizable or available in 48-inch versions that can be cut down to size.
Integrating a lever handle with your panic bar offers several distinct advantages for facility managers and business owners.
The exterior lever allows you to dictate who enters the building and when. By using a keyed lever, you can keep the door locked to the public while allowing staff with keys to enter. Meanwhile, the interior push bar remains active for safety, ensuring that a locked door never traps anyone inside.
Levers are generally preferred over knobs for accessibility. According to the Americans with Disabilities Act (ADA), door hardware should be operable with one hand and without tight grasping, pinching, or twisting of the wrist. A lever handle meets these criteria, making your building accessible to people with disabilities.
Commercial doors take a beating. Products like the Keyman X8 Aluminum or X9 Stainless Steel series are built to ANSI Grade 1 standards. This means they are tested to withstand millions of cycles, ensuring the lever and latch mechanism won't fail even in busy environments like schools or shopping malls.
Zhongshan Keyman Locks Products Ltd. offers robust solutions for these applications. Here is a quick comparison of their popular series that are compatible with exterior levers:
Feature | X8 Series | X9 Series |
|---|---|---|
Material | Aluminum | Stainless Steel |
Durability | ANSI Grade 1 | ANSI Grade 1 |
Fire Rating | UL 10C (3 Hour) | UL 10C (3 Hour) |
Ideal Use | Commercial / Public Buildings | Heavy Duty / High Traffic |
Compatibility | Standard & Narrow Stile Levers | Heavy Duty Levers |
Installing a push bar panic exit device with an exterior lever requires precision. Here are a few things to keep in mind:
Handing: You must know the "handing" of your door (Left Hand Reverse or Right Hand Reverse). While many modern devices are non-handed or reversible, knowing this ensures you buy the correct lever trim.
Door Thickness: Standard commercial doors are usually 1-3/4 inches thick. If your door is thicker, you may need a specialized mounting kit.
Through-Bolts: For high-security and durability, "through-bolting" the trim (connecting the outside lever directly to the inside panic bar through the door) is recommended. This prevents the hardware from loosening over time.
1
In most cases, yes. However, the lever trim (often called "exit device trim") must be compatible with the specific brand and model of the panic bar you have installed. Not all trims fit all bars.
A rim exit device has a latch that protrudes from the side of the bar and engages a strike plate on the door frame. A vertical rod device uses rods that extend to the top and bottom of the door to latch into the floor and top frame. Both can be used with exterior levers.
Not all panic bars are fire-rated. If the door is a designated fire door, you must install a "Fire Exit Device" (labeled for fire) rather than standard "Panic Hardware." Keyman’s X8 and X9 series offer UL 10C 3-hour fire ratings.
A push bar panic exit device with exterior lever is more than just a door handle; it is a critical safety system. It ensures that while your assets remain secure from the outside, the lives of the people inside are protected by an immediate, unhindered exit path.
Whether you are retrofitting an old office or building a new commercial facility, choosing high-quality, ANSI-certified hardware like the solutions from Zhongshan Keyman Locks will provide peace of mind and long-lasting performance.
