Ever found yourself staring at a door with a big horizontal bar, wondering how it works? These doors, often found in schools, theaters, and office buildings, are known as panic doors or crash bars. Their primary purpose is to allow for a quick and easy exit during an emergency, like a fire. But what if you need to open it from the outside, or keep it unlocked for regular use?
Understanding how a panic door lock operates is key, whether you're a business owner responsible for building safety, an employee needing daily access, or simply someone curious about how these important safety features work. This guide will walk you through the different ways to unlock a panic door from both inside and out, explaining the mechanisms and tools involved. By the end, you'll know exactly how to operate these doors safely and efficiently.

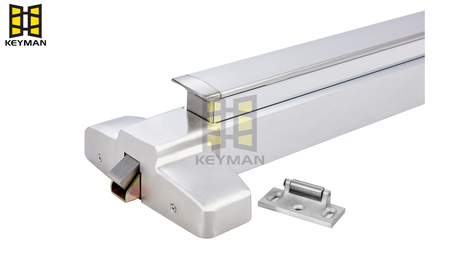

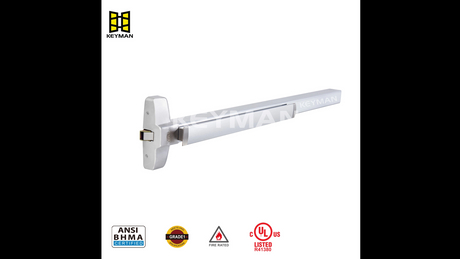

Before we get into the "how," let's quickly cover the "what." A panic door, technically equipped with a panic bar or exit device, is a hardware mechanism designed for fast egress. The concept was born from tragedy—specifically, the Iroquois Theatre fire in Chicago in 1903, where hundreds of people were trapped because the doors were locked or opened inward.
In response, building codes were updated to mandate exit devices that allow people to open a door by simply pushing on a bar or panel. This design ensures that even in a panicked crowd, the force of people pushing against the door will unlatch it, allowing for a swift evacuation.
The core component is the panic door lock mechanism itself, which retracts the latch when pressure is applied to the bar. While their main function is for emergency exits, they are also used for everyday entry and exit, which requires different methods of operation.
There are two primary ways to operate a panic door from the inside, each serving a different purpose.
This is the simplest and most intuitive method, designed for emergency situations.
How it works: When you push the horizontal bar (the panic bar), it activates an internal mechanism that retracts the latch or bolt holding the door shut. This allows the door to swing open immediately.
When to use it: This is the standard way to exit through a panic door. It's designed for single-use exit, meaning the door will close and re-latch behind you. This is crucial for maintaining security and fire safety, as many of these doors are also fire-rated and need to remain closed to prevent the spread of smoke and flames.
The beauty of this system is its simplicity. No keys, codes, or special knowledge are needed—just a simple push.
What if you need the door to remain unlocked for a period, allowing people to enter and exit freely without using the bar each time? This is where "dogging" comes in. Dogging is the action of holding the latch in a retracted position, effectively deactivating the panic bar.
How it works: This feature is not available on all panic bars, particularly fire-rated ones (as they must be able to latch to contain a fire). For devices that have it, you'll need a dogging key, which is usually a small hex key (Allen wrench) of a specific size.
The Process:
Push and Hold: Fully depress the panic bar.
Insert the Key: While the bar is pushed in, insert the dogging key into the designated hole on the bar's mechanism (often near one of the ends or in the center housing).
Turn the Key: Turn the key (typically a quarter or half turn) until it locks the bar in its depressed state. You'll feel it set in place.
Release: Slowly release the panic bar. It should stay down, and the latch will remain retracted. The door can now be pushed or pulled open from either side without needing a key or turning a handle.
When to use it: This is useful for high-traffic periods, such as the beginning and end of the school day, during a special event, or when moving large items through the doorway. To re-engage the lock, simply reverse the process: insert the key, turn it back to its original position, and the bar will pop back out, re-engaging the latch.
While panic doors are designed for exit, most also need to allow for entry from the outside. The exterior side of a panic door will have a different type of lock mechanism. Here are the most common types.
The most common method for exterior access is a standard lock that requires a physical key.
How it works: The outside of the door will have a lever handle or a fixed pull handle with a key cylinder. Inserting and turning the correct key will retract the latch, allowing you to open the door.
Types of Functionality:
Storeroom Function: This is a very common setup. The outside handle is always locked. You must use a key every single time to open the door from the outside. The handle is "unlocked" only while the key is turned. This is ideal for security.
Passage Function: In some cases, the exterior lever can be set to a "passage" mode (often by using a key to unlock it), allowing it to be opened without a key until it is manually locked again.
For keyless convenience, many businesses install keypad locks on their panic doors.
How it works: Instead of a keyhole, the exterior handle has a numeric keypad. Entering the correct PIN code will unlock the door for a short period, allowing you to open it.
Benefits: This eliminates the need for physical keys, making it easy to grant access to multiple employees. Codes can be easily changed if an employee leaves, enhancing security.
Access control systems are a popular choice for modern buildings.
How it works: A card reader is installed near the door. Authorized individuals can wave a proximity card or key fob in front of the reader to unlock the door.
Benefits: This system offers a high level of security and control. Access can be granted or revoked instantly, and the system can log every entry, providing a detailed record of who entered and when.
For the highest level of security, biometric locks use unique personal characteristics for access.
How it works: These systems use a fingerprint scanner or sometimes retinal/facial recognition. A registered user places their finger on the scanner to gain entry.
Benefits: Biometrics are nearly impossible to duplicate, providing top-tier security. There are no keys to lose, cards to steal, or codes to forget.
1
Understanding how a panic door lock works is essential for safety, security, and convenience. While pushing the bar from the inside is straightforward, knowing how to use a dogging key or operate the exterior lock can make daily operations much smoother.
If you are a business owner or facility manager, ensure you and your staff are familiar with all functions of your exit devices. Regularly check that the panic bars are working correctly and that any exterior access methods are secure. If you're having trouble with a panic door or are considering upgrading your security, it's always best to consult a professional locksmith. They can ensure your hardware is compliant with safety codes and functions perfectly for both emergency egress and everyday access.
