Hanging a tall, massive commercial door presents a unique engineering challenge. Traditional side-mounted hinges often struggle to bear the extreme weight of these oversized installations. Over time, that constant stress leads to sagging, scraping, and misaligned frames. This can create major security vulnerabilities and drive up maintenance costs for building owners.
The most effective solution to this problem is using full mortise-mount pivot hinges. Instead of hanging the door solely from the side frame, these specialized hinges anchor at the top and bottom on a vertical axis. This design transfers the vast majority of the door’s weight directly to the floor. The result is a highly stable, smoothly operating entrance that rarely requires realignment.
If you are planning a new commercial build or upgrading an existing entryway, selecting the right hardware is critical. This guide explores the mechanics of these essential components, focusing on the Keyman Lock KPH Series. You will learn how a heavy duty intermediate hand pivot functions, how to calculate the correct number of pivots for your door height, and why stainless steel construction matters for long-term performance.
When hardware is described as "full mortise," it means the components are installed into carved-out cavities within the door and the frame. Once the door is mounted, the hardware sits completely flush with the surrounding surfaces.
This flush installation provides two distinct advantages. First, it creates a clean, highly aesthetic appearance because the hinge plates are hidden from view when the door is closed. Architects frequently specify this style for high-end office buildings and modern storefronts where visual appeal is a priority.
Second, sinking the hardware into the door material provides superior structural integrity. The hinge relies on the solid core of the door itself for support, rather than just the holding power of the mounting screws. When paired with a vertical axis pivot system, this mortised setup delivers exceptional durability for heavy-use applications.
The Keyman Lock KPH Series is engineered specifically for superior performance in demanding commercial environments. These heavy-duty pivot hinges are crafted from corrosion-resistant 304 stainless steel (SUS 304). This material choice ensures that the hardware can withstand high humidity and frequent use without degrading.
A standout feature of the KPH series is the inclusion of heavy-duty stainless steel needle bearings. These bearings reduce friction to an absolute minimum, allowing even the heaviest doors to swing open effortlessly.
While top and bottom pivots handle the primary weight distribution, tall doors require extra support along the middle of the frame. This is where a heavy duty intermediate hand pivot becomes necessary.
These middle pivots are designed for use with 3/4" (19 mm) offset pivot sets. Their primary job is to maintain proper door alignment and prevent bowing or warping along the vertical edge. By stabilizing the center of the door, they also simplify the installation and operation of floor closers and bottom pivots.
Because commercial doors swing in specific directions, these pivots are handed. You must select the correct orientation based on your specific doorway configuration.

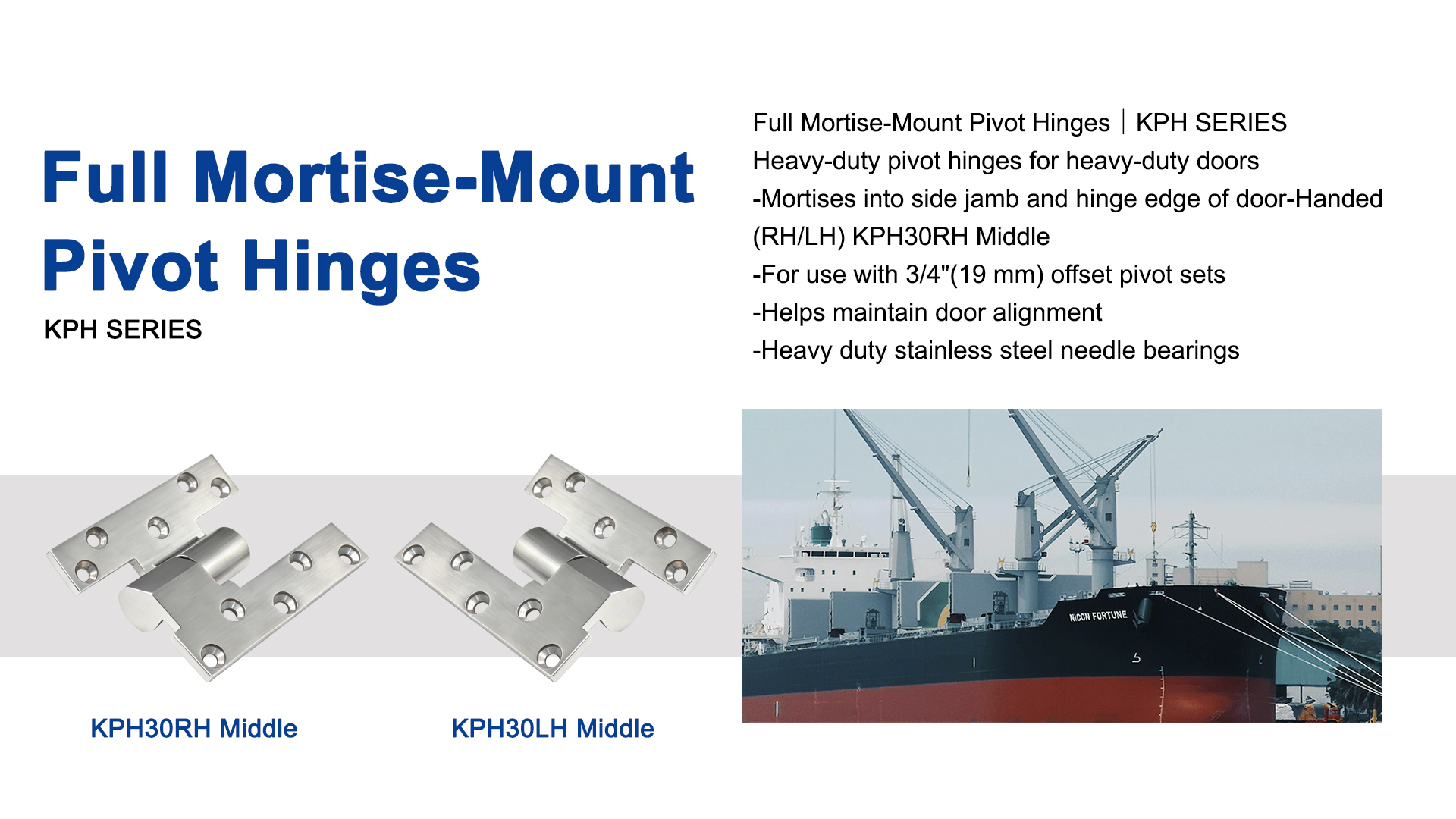

The KPH30RH is the right-hand model in this series. It mortises seamlessly into the side jamb and the hinge edge of the door. Builders rely on this specific component to keep towering right-handed doors perfectly plumb. By locking the center of the door into the correct vertical plane, the KPH30RH prevents sagging and ensures that locking mechanisms engage smoothly every single time.
For doors swinging in the opposite direction, you need the KPH30LH. This heavy duty 3/4" offset intermediate left hand pivot provides the exact same robust support and alignment benefits. Like its right-handed counterpart, it features full mortise installation and premium stainless steel needle bearings.
Knowing how many intermediate pivots you need is vital for structural safety. A single set of top and bottom pivots is never enough for doors exceeding standard heights.
The industry standard rule dictates that doors up to 60 inches tall require one intermediate pivot. For every additional 30 inches of height, you must install another intermediate pivot.
Use the following table to determine the correct hardware requirements for your next installation:
Door Height | Number of Top/Bottom Pivots | Number of Intermediate Pivots Required |
|---|---|---|
Up to 60 inches | 1 Set | 1 |
61 to 90 inches | 1 Set | 2 |
91 to 120 inches | 1 Set | 3 |
121 to 150 inches | 1 Set | 4 |
Proper spacing of these pivots along the door's edge distributes the lateral forces evenly, keeping the door perfectly straight throughout its entire lifespan.
Handing refers to the direction a door swings. A right-hand door has hinges on the right side when you pull it toward you, while a left-hand door has hinges on the left. You must buy the matching hardware, as a right-hand pivot cannot be used on a left-hand door.
Yes. While intermediate pivots greatly aid in the installation and smooth operation of floor closers, they can also be used in free-swinging configurations to simply maintain alignment and prevent door warping.
Standard ball bearings can wear down under the immense crushing weight of a heavy commercial door. Needle bearings have a larger surface area in contact with the rotating shaft. This allows them to handle much higher load capacities while delivering incredibly smooth, long-lasting operation.
Hanging heavy commercial doors requires precision hardware that won't fail under pressure. By choosing full mortise-mount pivot hinges, you ensure that the door's weight is safely transferred to the floor. Adding the correct number of intermediate pivots guarantees that your doors will remain perfectly aligned, secure, and easy to open for years to come.
Take the time to evaluate your current building plans or existing entranceways. Check the height of your doors and verify that you have the appropriate number of intermediate pivots installed. If you are ready to upgrade to commercial-grade reliability, consult with a hardware specialist to source the KPH Series components that match your specific handing and offset requirements.
