Replacing a broken lock or upgrading your security system often raises an important question: can you simply swap out lock cylinders between different locks? The answer isn't straightforward, as compatibility depends on several factors including manufacturer specifications, sizing standards, and the type of locking mechanism involved.
Understanding lock cylinder interchangeability can save you time, money, and frustration when dealing with lock repairs or security upgrades. Whether you're a homeowner looking to rekey your property or a building manager maintaining multiple access points, knowing which cylinders work with which locks is essential knowledge.
This guide explores the technical aspects of lock cylinder compatibility, helping you make informed decisions about your security hardware while avoiding costly mistakes that could compromise your property's protection.
Lock cylinders serve as the heart of most keyed locking systems, containing the pins, springs, and mechanisms that allow authorized keys to operate the lock. These precision-engineered components come in various sizes, configurations, and security levels to meet different application requirements.
The cylinder houses the key-operated mechanism that controls the lock's bolt or latch. When the correct key is inserted, it aligns the pins at the shear line, allowing the cylinder to rotate and operate the locking mechanism. This fundamental design remains consistent across most lock types, but dimensional and mechanical variations create compatibility challenges.
Modern lock cylinders typically feature standardized threading and mounting systems, but these standards vary between manufacturers and regional markets. European cylinders often use different specifications than American-made locks, creating potential compatibility issues when mixing brands or importing hardware.

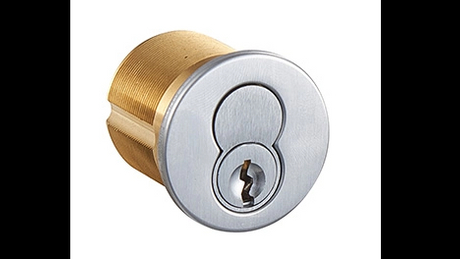

Pin tumbler cylinders represent the most common type found in residential and commercial applications. These cylinders use spring-loaded pins of varying lengths to prevent rotation until the correct key lifts each pin to the proper height. Pin tumbler cylinders come in single, double, and removable core configurations.
Wafer tumbler cylinders use flat wafers instead of pins, typically found in automotive applications and some residential locks. These cylinders offer lower security but provide cost-effective solutions for applications where convenience matters more than maximum protection.
Disc detainer cylinders employ rotating discs that must align properly for the cylinder to operate. These systems offer enhanced security against picking but require specialized keys and are less common in standard residential applications.
Smart cylinders incorporate electronic components for keyless entry, smartphone control, or integration with building management systems. These advanced cylinders often maintain mechanical backup systems but may have unique compatibility requirements.
Lock cylinder compatibility primarily depends on physical dimensions, with diameter and length being the critical measurements. Standard residential cylinders typically measure 1-1/8 inches in diameter, but variations exist depending on manufacturer and intended application.
Thread specifications also affect compatibility, with most American cylinders using specific thread pitches that must match the lock housing. Mixing thread types can result in loose installation, compromised security, or damage to the lock mechanism.
Cam orientation and configuration must align with the lock's internal mechanisms. The cam is the metal piece that extends from the back of the cylinder and operates the lock's bolt or latch. Different locks require specific cam shapes, lengths, and rotation angles to function properly.

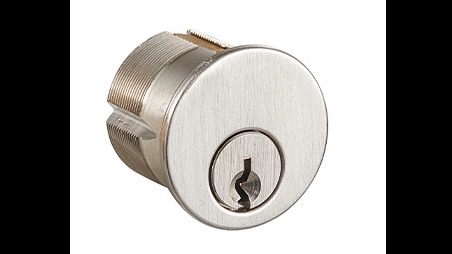

Mounting systems vary between rim cylinders, mortise cylinders, and key-in-knob applications. Each mounting style has specific dimensional requirements that determine which cylinders can be substituted without modifying the door or lock housing.
Major lock manufacturers like Schlage, Baldwin, Kwikset, and Yale have developed proprietary specifications that affect cylinder interchangeability. While some standardization exists within the industry, each manufacturer optimizes their products for specific performance and security characteristics.
Schlage cylinders, for example, use specific cam configurations and threading that work best with Schlage lock bodies. Attempting to install a different manufacturer's cylinder may result in improper operation, reduced security, or mechanical failure.
Some manufacturers design their systems with intentional compatibility limitations to ensure optimal performance and maintain quality control. This approach protects both the manufacturer's reputation and the end user's security, but it limits flexibility when sourcing replacement cylinders.
Premium lock manufacturers often use tighter tolerances and specialized materials that enhance security but reduce compatibility with standard aftermarket cylinders. These high-security applications typically require manufacturer-specific replacement parts to maintain their rated protection levels.
Fire-rated door assemblies require special consideration when replacing lock cylinders, as the entire assembly must maintain its fire resistance rating. Just as EN 1634-certified stainless steel handles undergo rigorous testing to ensure fire safety compliance, lock cylinders used in fire-rated applications must meet specific performance standards.
Substituting non-certified cylinders in fire-rated doors can void the door's fire rating and create serious safety and compliance issues. Building codes typically require that all components of fire-rated assemblies, including locks and cylinders, be tested and certified as part of the complete system.
When replacing cylinders in commercial buildings or fire-rated residential applications, always verify that replacement components maintain the required certifications. This attention to detail ensures continued compliance with safety regulations and protects building occupants during emergencies.
High-security cylinders incorporate features like drill resistance, pick protection, and key control systems that standard cylinders lack. Replacing a high-security cylinder with a standard unit significantly reduces the lock's protective capabilities, potentially compromising the entire security system.
Security ratings help determine appropriate cylinder replacements, with organizations like ANSI providing standardized grading systems. Grade 1 cylinders offer the highest security level, while Grade 3 provides basic protection suitable for residential applications.
Key control systems prevent unauthorized key duplication and maintain security integrity over time. When replacing cylinders in controlled key systems, ensure that the new cylinder maintains the same level of key control to prevent security vulnerabilities.
Proper cylinder installation requires attention to mounting depth, cam alignment, and operational testing. Incorrect installation can result in key binding, premature wear, or complete lock failure, regardless of cylinder compatibility.
Professional locksmiths possess the specialized tools and knowledge needed to properly evaluate cylinder compatibility and perform installations that maintain security and operational reliability. They can also identify potential issues before they become problems, saving time and preventing security compromises.
Complex applications like master key systems, high-security installations, or fire-rated assemblies typically require professional expertise to ensure proper cylinder selection and installation. Attempting DIY replacements in these situations often results in costly mistakes and compromised security.
Lock cylinders are not universally interchangeable, but many standard residential applications offer reasonable compatibility between similar products from major manufacturers. Success depends on matching physical dimensions, thread specifications, cam configurations, and security requirements.
Always verify compatibility before purchasing replacement cylinders, especially in commercial applications or specialized security systems. When in doubt, consult with a qualified locksmith who can evaluate your specific situation and recommend appropriate solutions.
Consider the long-term implications of cylinder replacement decisions, including future maintenance needs, security requirements, and compatibility with existing key systems. Sometimes investing in professional consultation upfront prevents much larger expenses later.
For critical applications involving fire safety, high security, or complex access control, prioritize certified components and professional installation over cost savings. The protection of lives and property justifies the investment in proper materials and expertise.
