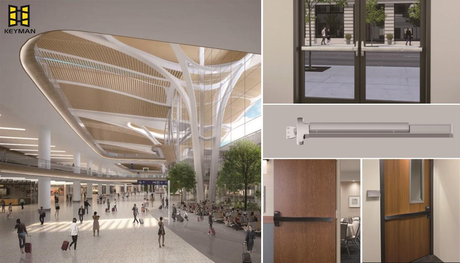

If you've ever exited a public building like a school, hospital, or movie theater, you've likely used an exit device without giving it a second thought. These mechanisms, often a horizontal bar pushed to unlatch a door, are essential for safe and rapid egress during an emergency. While there are several types of exit devices, one of the most secure and widely used is the vertical rod panic exit device.
These devices play a crucial role in building safety, especially on double doors where a central support column (mullion) is absent. They provide a robust locking system that ensures doors are secure during normal use but can be opened easily from the inside during an emergency.
This guide will explain what a vertical rod exit device is, how it works, its different types, and its importance in commercial and public buildings. By the end, you'll have a clear understanding of this vital piece of safety hardware.
Before focusing on the vertical rod type, it's helpful to understand what an exit device is. Also known as a panic bar or crash bar, an exit device is a door-mounted hardware mechanism that unlatches a door when pressure is applied to it. Its primary function is to allow people to exit a building quickly and without needing to use a key or turn a knob, which can be difficult in a panicked situation.
The invention of the panic bar was a direct response to historical tragedies where crowds were unable to escape burning buildings because the doors opened inward or were too complicated to operate in a rush. Today, building codes like those from the National Fire Protection Association (NFPA) mandate their use in many public assembly, educational, and healthcare facilities.

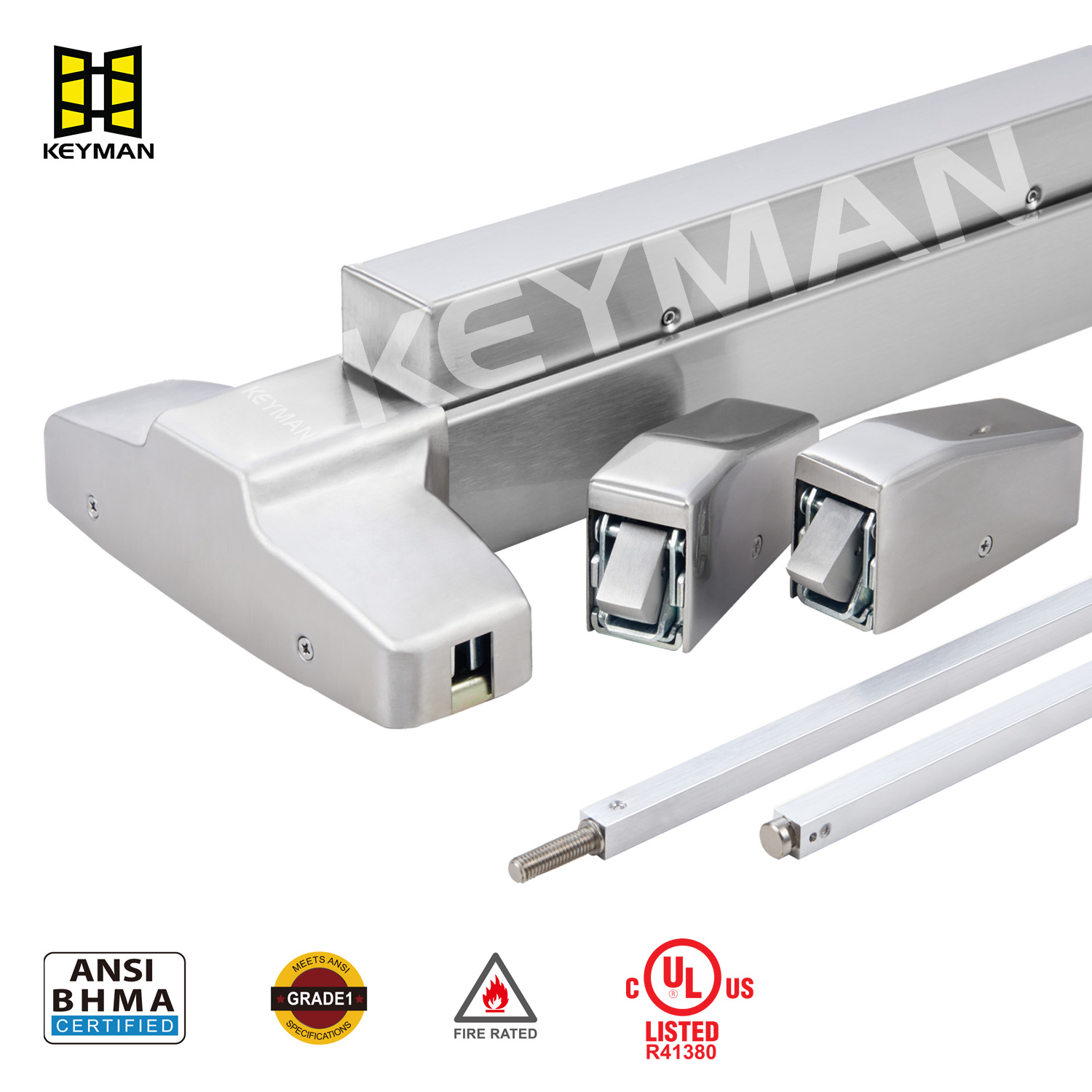

A vertical rod panic exit device is a specific type of exit device that uses vertical rods to secure a door at the top and bottom. When the push bar is activated, these rods retract from their strikes in the door frame header and floor threshold, allowing the door to swing open.
This design is particularly useful for pairs of doors that don't have a vertical mullion between them. The two-point latching system provides strong security, preventing the doors from being forced open from the outside, while still allowing for easy, one-motion exit from the inside.
The mechanism is straightforward yet effective. Inside the push bar assembly, a series of levers and gears connect the bar to two long rods—one extending upwards to the top of the door and the other downwards to the bottom.
1.Locked State: In its default, locked position, the top and bottom rods are extended. The top rod's latch bolt is engaged in a strike plate in the door frame's header, and the bottom rod's latch bolt is engaged in a strike in the floor or threshold. This creates a secure, two-point locking system.
2.Activation: When a person pushes the panic bar, the internal mechanism is activated.
3.Rod Retraction: The mechanism pulls both the top and bottom rods simultaneously, retracting their latch bolts from the strikes.
4.Door Release: With the latches disengaged, the door is free to swing open, allowing for a quick exit.
This entire process happens in a single, fluid motion, requiring minimal force. It is designed to be intuitive, even for someone who has never used one before.
There are two primary categories of vertical rod exit devices: concealed and surface mounted. The choice between them often depends on aesthetics, door type, and security requirements.
As the name implies, surface vertical rod (SVR) devices have their rods and latching mechanisms mounted directly onto the interior face of the door. The rods are typically covered by a metal housing or guard to protect them from damage and tampering.
· Advantages: SVR devices are generally easier to install, retrofit, and maintain than concealed versions. Since all components are accessible on the door's surface, inspections and repairs can be performed without having to remove the door or access its internal core. They are a practical and cost-effective solution for many applications, especially on metal or wooden doors.
· Disadvantages: The visible rods and their housing can be considered less aesthetically pleasing. They are also more susceptible to damage from carts, gurneys, or deliberate vandalism, which could potentially compromise their function.
With concealed vertical rod (CVR) devices, the rods are hidden inside the door itself. Channels are routed into the door during its manufacturing process to house the rods and their connecting mechanisms. Only the push bar on the interior and the small latch bolts at the top and bottom edges of the door are visible.
· Advantages: CVR devices offer a cleaner, more modern look that is often preferred by architects and designers. By hiding the rods, they are protected from damage and create a more streamlined appearance. This makes them a popular choice for high-end commercial buildings, hotels, and offices where aesthetics are a priority.
· Disadvantages: Installation and maintenance of CVR devices are more complex and costly. They must be installed in doors specifically designed to accommodate them. Repairs may require the door to be removed to access the internal components, leading to higher labor costs and potential downtime.
Proper installation and regular maintenance are critical for any vertical rod panic exit device to function correctly and comply with safety codes.
· Correct Installation: The rods must be perfectly aligned with the strikes in the frame and floor. Misalignment can cause the latches to bind, making the door difficult to open or preventing it from latching securely. The bottom strike, in particular, must be kept free of dirt and debris.
· Regular Inspections: Building maintenance staff should regularly inspect all exit devices to ensure they are in good working order. This includes checking that the push bar moves freely and that the latches retract fully.
· Bottom Latch Debris: The bottom latch assembly is prone to collecting dirt, dust, and other debris, which can prevent the latch bolt from engaging or retracting properly. Regular cleaning of the floor strike is essential for reliable operation. This is a common point of failure for vertical rod systems.
· "Less Bottom Rod" (LBR) Option: Due to the maintenance challenges of the bottom rod, many manufacturers offer a "Less Bottom Rod" or "Top Latch Only" configuration for certain applications. This design only secures the door at the top, simplifying installation and eliminating the floor strike maintenance issue. However, this may reduce security and is not suitable for all door types or fire-rating requirements.
The vertical rod panic exit device is an essential component of a building's life safety system. It provides a high level of security for pairs of doors while ensuring that occupants can exit quickly and safely during an emergency. Whether you choose a surface-mounted or concealed design, proper installation and diligent maintenance are key to ensuring these devices perform reliably when they are needed most.
Understanding the function and importance of this hardware helps building owners, facility managers, and contractors make informed decisions to keep their properties safe, secure, and compliant with all relevant codes.
