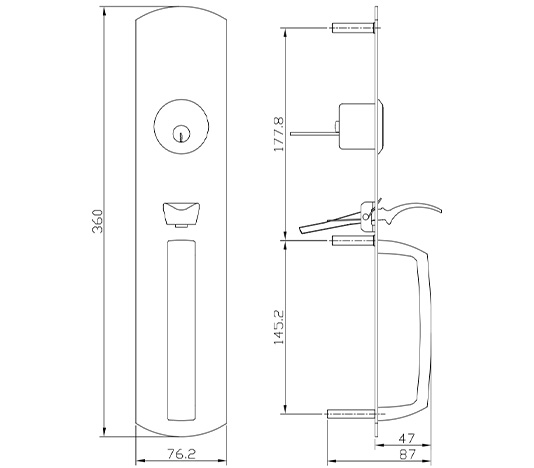

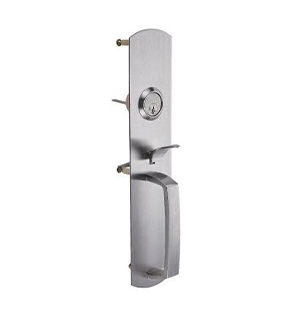

Pull and Thumbpiece Trim(5B)

KEYMAN Stainless Steel Fire rated Lever Trim With Lock For Panic Bar

Function
  • Pull and Thumbpiece Trim

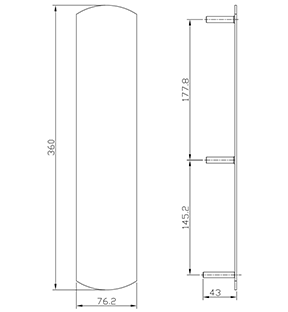

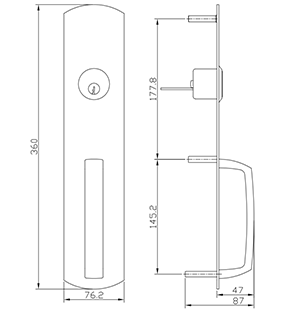

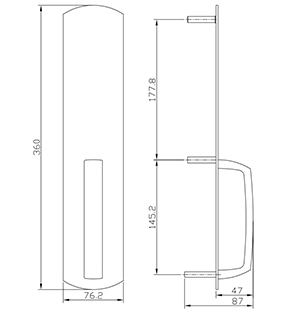

    5B 01Function 02Function 03Function
    图片1-改 01-改 02-改 03-改
    Function
    Dummy Blank Plate Dummy Trim with Grip Handle Night latch
    Function Description

    Exit only trim

    Pull when dogged Key retracts latchbolt
    Product Code
    X98015B00 X98025B71 X98035B71
    Escutcheon Plate Size
    3"x14-13/16"x 3/32" 3"x14-13/16"x 3/32" 3"x14-13/16"x 3/32"
    (76x360x2mm) (76x360x2mm) (76x360x2mm)
    Pull center to center
    51/2"(140mm) 51/2"(140mm)
    Projection
    2"(51mm) 2"(51mm)
    ANSI Function
    1 2 3
    Cylinder Type
    Rim Cylinder
    Handing

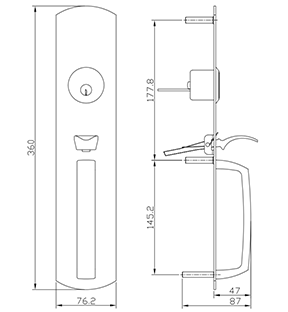

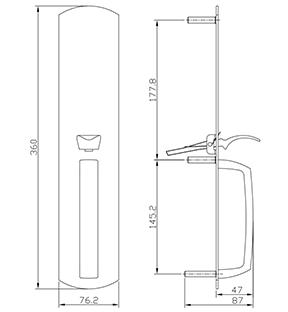

    5B 05Function 06Function 15Function
    图片1-改 05-改 06-改 15-改
    Function
    Classroom Storeroom (Thumbpiece Active) Passage
    Function Description
    Entrance by thumbpiece.
    Key locks or unlocks thumbpiece.
    Entrance by thumbpiece only when
    released by key. Key removable only
    when locked.
    Entrance by trim when latch is retracted
    by thumbpiece. Thumbpiece is always active,
    no cylinder.
    Product Code
    X98055B71 X98065B71 X98155B71
    Escutcheonplate Size
    3"x14-13/16"x 3/32" 3"x14-13/16"x 3/32" 3"x14-13/16"x 3/32"
    (76x360x2mm) (76x360x2mm) (76x360x2mm)
    Pull Center to Center
    51/2"(140mm) 51/2"(140mm) 51/2"(140mm)
    Projection
    2"(51mm) 2"(51mm) 2"(51mm)
    ANSI Function
    5 6 15
    Cylinder Type
    Rim Cylinder Rim Cylinder
    Handing
  • A wide selection of finishes are available to match with your door and other hardware.
    Color Description ANSI/BHMA US
    Satin Brass 606 SB
    Polished Chrome 625 CP
    Satin Chrome 626 SC
    Satin Stainless Steel 630 SS
