Building codes require panic exit devices on many commercial doors, and for good reason. These life-saving mechanisms allow people to exit quickly during emergencies without fumbling for keys or handles. While installation might seem complex, following the right steps ensures your panic exit device functions properly when it matters most.
This guide walks you through the complete installation process, from selecting the right device to final testing. Whether you're a building manager, contractor, or safety officer, you'll learn how to install a panic exit device correctly and maintain compliance with fire safety regulations.

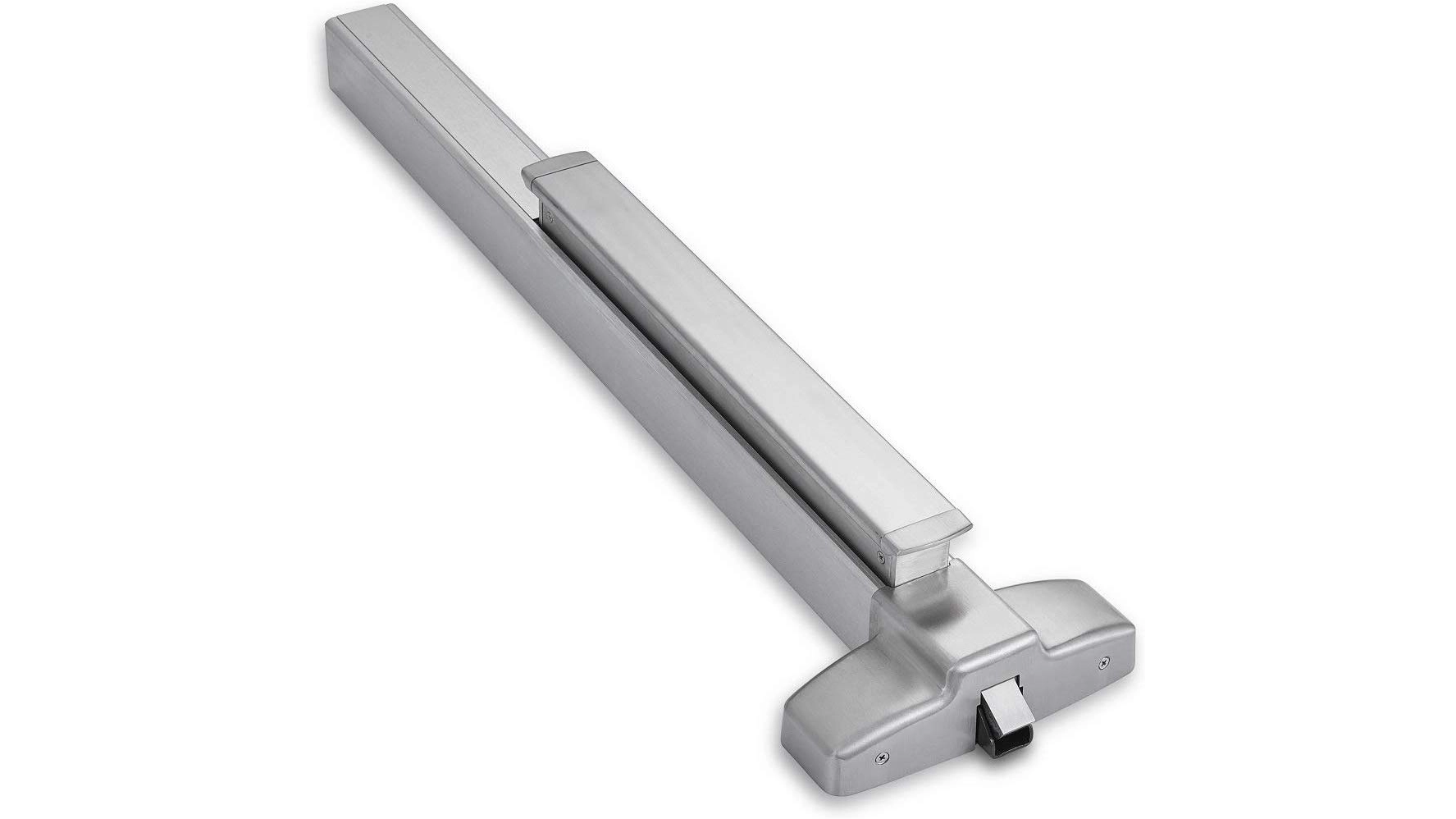

A panic exit device, also called a crash bar or push bar, is a spring-loaded mechanism mounted horizontally across the inside of an exit door. When someone pushes against the bar, it releases the door's locking mechanism, allowing immediate exit without requiring fine motor skills or prior knowledge of the device.
These devices are mandatory in many commercial buildings, schools, theaters, and other public spaces where large numbers of people gather. The National Fire Protection Association (NFPA) and International Building Code (IBC) specify when and where panic exit devices must be installed.
Before starting your installation, gather these essential tools:
· Electric drill with various drill bits
· Screwdriver set (Phillips and flathead)
· Tape measure
· Level
· Pencil for marking
· Safety glasses
· Center punch or awl
You'll also need these materials:
· Panic exit device (appropriate for your door type)
· Mounting screws (usually included with the device)
· Strike plate and keeper
· Door reinforcement plates if required
· Weather stripping (for exterior doors)
Not all panic exit devices work on every door. Consider these factors when selecting your device:
Door Material: Wood doors require different mounting hardware than metal or glass doors. Some devices include universal mounting kits, while others are door-specific.
Door Width: Standard devices fit doors up to 48 inches wide. Wider doors may require special ordering or additional support.
Security Level: Basic panic bars provide exit functionality only. Higher security models include key override, alarm contacts, or integration with access control systems.
Weather Resistance: Exterior doors need weatherproof devices rated for outdoor use.
Start by measuring your door width and height. Most panic exit devices should be mounted 34 to 48 inches above the floor, centered horizontally on the door.
Remove any existing hardware that might interfere with the installation. Clean the door surface where you'll mount the device, ensuring it's free from dirt, paint chips, or other debris that could prevent proper mounting.
Hold the panic exit device against the door at the correct height. Use a level to ensure it's perfectly horizontal, then mark the screw hole locations with a pencil. Double-check your measurements before proceeding to drilling.
For glass doors, use the manufacturer's template to mark mounting points precisely. Glass requires special drilling techniques and shouldn't be attempted without proper tools and experience.
Drill pilot holes at your marked locations. The hole size should match the screws provided with your panic exit device. For metal doors, use appropriate metal drill bits and cutting oil to prevent overheating.
Mount the device body using the provided screws. Tighten screws evenly to avoid warping the mounting plate. The device should sit flush against the door surface without gaps or binding.
The strike plate mounts on the door frame where the latch engages. Position it so the latch extends fully into the keeper when the door closes. Mark and drill mounting holes, then secure the strike plate with appropriate screws.
Test the latch engagement by slowly closing the door. The latch should slide smoothly into the keeper without binding or requiring excessive force.
Some panic exit devices include electrical connections for alarms, access control, or monitoring systems. Follow the manufacturer's wiring diagrams carefully, and ensure all electrical work complies with local codes.
Use appropriate wire gauges and connectors. Protect wiring from damage by routing it through conduit or door frame channels where possible.
Once installation is complete, test the panic exit device thoroughly. Push the bar firmly from different angles to ensure smooth operation. The door should open immediately with minimal force (typically 15 pounds maximum).
Check that the latch fully retracts when the bar is pressed and returns to the locked position when released. Test any electrical components, including alarms or monitoring systems.
Have someone push the bar while you observe the latch mechanism from the outside. Look for proper alignment and smooth operation throughout the full range of motion.
Improper height placement is one of the most frequent errors. Mount the device too high, and shorter people can't reach it effectively. Too low, and it may interfere with normal door use.
Failing to use appropriate screws for your door material can lead to loosening over time. Always use the hardware specified by the manufacturer, or approved equivalents that meet or exceed the strength requirements.
Inadequate strike plate alignment causes binding and premature wear. Take time to ensure perfect alignment before finalizing the installation.
Regular maintenance keeps your panic exit device functioning properly. Monthly testing ensures the mechanism operates smoothly and identifies issues before they become safety hazards.
Keep pivot points lubricated with appropriate lubricants. Check mounting screws periodically for looseness, especially during the first few months after installation.
Document all testing and maintenance activities. Many jurisdictions require written records of safety device inspections and repairs.
Installing a panic exit device correctly is just the beginning. Regular maintenance, proper testing, and staying current with building codes ensure your investment continues protecting occupants for years to come.
If you encounter resistance during installation or the device doesn't operate smoothly after completion, consult the manufacturer's technical support or consider hiring a certified locksmith. Proper installation is too important for guesswork—when lives are at stake, professional installation may be the wisest investment.
