A mortise door lock is a classic and reliable security feature found in many homes, especially older ones. These locks are housed inside a deep pocket, or "mortise," cut into the edge of the door, making them sturdy and durable. However, like any mechanical device, they can sometimes malfunction. The key might get stuck, the latch might not retract properly, or the lock might feel stiff and difficult to operate.
When your mortise lock starts acting up, you might think your only option is to call a professional locksmith. While that's always a safe bet for complex issues, many common problems can be fixed with a bit of DIY know-how. This guide will walk you through everything you need to know about fixing a mortise door lock, from identifying the problem to putting everything back together.
Learning how to troubleshoot and repair your own lock can save you time, money, and give you a valuable new skill. So, roll up your sleeves, grab a few basic tools, and let's get that door locking smoothly again.

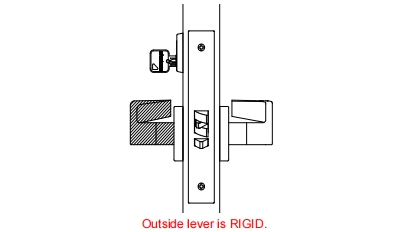

Before we start the repair, it helps to understand what you're working with. A mortise lock consists of several key components:
· Lock Body: The large rectangular case that sits inside the door. It contains all the internal mechanisms.
· Lock Cylinder: The part where you insert the key. This is separate from the lock body and can often be replaced independently.
· Latchbolt: The spring-loaded bolt that keeps the door closed.
· Deadbolt: The solid, non-spring-loaded bolt that provides security when the door is locked with a key or thumbturn.
· Faceplate: The metal plate you see on the edge of the door, through which the latch and deadbolt protrude.
· Trim: The handles, knobs, and plates on the face of the door.
These locks are known for their strength because the lock body is supported by the wood of the door itself. This integrated design also means repairs can seem a bit more involved than with a standard cylindrical lock, but it’s manageable once you understand the parts.
Most issues with a mortise lock stem from a few common causes. Identifying the specific problem is the first step toward a successful repair.
· Sticky or Stiff Lock: The key is hard to turn, or the latch doesn't move freely. This is often caused by dirt, grime, or a lack of lubrication.
· Misaligned Latch: The latchbolt or deadbolt doesn't line up correctly with the strike plate on the door frame, making it difficult to close or lock the door.
· Stuck Latchbolt: The latch gets stuck in either the extended or retracted position and won't spring back.
· Key Won't Turn: The key goes into the cylinder but won't turn, or only turns partially. This could be an issue with the cylinder, the key itself, or the internal lock mechanism.
· Loose Handles: The door knobs or levers feel wobbly. This is usually due to a loose setscrew.
Ready to get started? This 8-step process will guide you through diagnosing and fixing most common mortise lock issues.
You won't need a full workshop, but having the right tools on hand will make the job much easier.
· Screwdrivers (both Phillips and flat-head)
· Graphite lubricant or a dry PTFE spray (avoid oil-based lubricants like WD-40, as they can attract dust and gum up the lock)
· A small, stiff brush or compressed air for cleaning
· Pliers
· An Allen key (if your handle has a setscrew)
· A container to hold screws and small parts
Often, a stiff or sticky lock just needs a good cleaning and lubrication. Before taking the entire lock apart, try this simple fix.
1.Insert the nozzle of your graphite lubricant or dry PTFE spray into the keyhole and give it a quick puff or spray.
2.Insert your key and turn it back and forth several times to spread the lubricant throughout the cylinder.
3.Extend the latch and deadbolt and spray a small amount of lubricant directly onto them. Work the handle and thumbturn to ensure the lubricant gets into the mechanism.
If this solves your problem, you’re done! If the lock is still not working correctly, you'll need to remove it from the door for a closer look.
To access the lock body, you first need to remove the handles and trim plates.
1.Look for a small setscrew on the base of the door knob or lever. Use an Allen key or a small flat-head screwdriver to loosen it.
2.Once the setscrew is loose, pull the handle off the spindle (the square metal rod that passes through the door).
3.Unscrew the screws holding the trim plates (escutcheons) to the door and remove them. Set them aside with the handles.
The lock cylinder is held in place by a large retaining screw on the faceplate of the lock body.
1.Open the door and look at the faceplate on the edge. You should see two screws at the top and bottom holding the faceplate to the door, and a larger screw in the middle.
2.Unscrew this middle retaining screw. It might be quite long.
3.Once the screw is out, you can unscrew the lock cylinder from the face of the door. It will turn counter-clockwise.
With the handles and cylinder out of the way, you can now remove the main lock body from the door.
1.Unscrew the two screws at the top and bottom of the faceplate.
2.Carefully pry the lock body out of the mortise pocket. It might be a snug fit, so you may need to gently wiggle it or use a flat-head screwdriver to lever it out. Be careful not to damage the door’s paint or wood.
Now that the lock is out of the door, you can give it a thorough cleaning and inspection.
1.Lay the lock body on a flat surface. Use a stiff brush or compressed air to clean out any dust, wood shavings, and old grime from the casing and moving parts.
2.Inspect the internal components for any visible signs of wear or damage, such as bent springs or broken parts. The spring that controls the latchbolt is a common point of failure.
3.If you see a broken part, you may be able to find a replacement online or at a specialty hardware store. For very old or unique locks, it might be easier to take the lock body to a locksmith.
4.If everything looks intact, apply a dry lubricant to all the moving parts inside the lock body. Work the mechanisms manually to ensure the lubricant is well-distributed.
While the lock is out, take a moment to check the door's alignment. Sometimes the problem isn't the lock itself, but the way it interacts with the door frame.
1.Close the door and check the gap between the door and the frame. It should be even all the way around. If it's not, the door hinges may need tightening or adjusting.
2.Inspect the strike plate on the door frame. The openings should align perfectly with where the latch and deadbolt will be. If you see scrape marks around the plate, it's a sign of misalignment. You may need to reposition the strike plate by filling the old screw holes with wood filler and drilling new pilot holes.
Once you’ve cleaned, lubricated, and inspected everything, it's time to put it all back together. Simply reverse the steps you took to disassemble it.
1.Slide the mortise lock body back into the door and secure it with the faceplate screws.
2.Screw the lock cylinder back in and tighten the retaining screw on the faceplate.
3.Reattach the trim plates and slide the handles back onto the spindle.
4.Tighten the setscrews on the handles.
Test the lock thoroughly. The key should turn smoothly, and the latch and deadbolt should extend and retract without any resistance.
While many mortise lock problems are fixable, there are times when it’s best to call a professional locksmith. If you find broken internal parts, if the lock is severely corroded, or if you've tried all the steps above and the lock still doesn't work, an expert can provide a solution without causing further damage. A locksmith can also re-key the lock or recommend a suitable replacement if needed.
Fixing a mortise door lock is a rewarding DIY project that can restore the function and security of your door. By taking a methodical approach to cleaning, lubricating, and inspecting the components, you can solve most common issues and extend the life of your hardware. Now, with your lock working like new, you can feel confident in the security of your home.
