A mortise lock is a robust and secure locking mechanism commonly found in residential and commercial doors. Unlike cylindrical locks, mortise locks are installed within a pocket (the mortise) cut into the door edge, offering superior strength and durability. Whether you're a seasoned DIY enthusiast or a homeowner looking to upgrade your security, learning how to assemble a mortise lock is a valuable skill. This guide will walk you through the process step-by-step, ensuring a professional and secure installation.

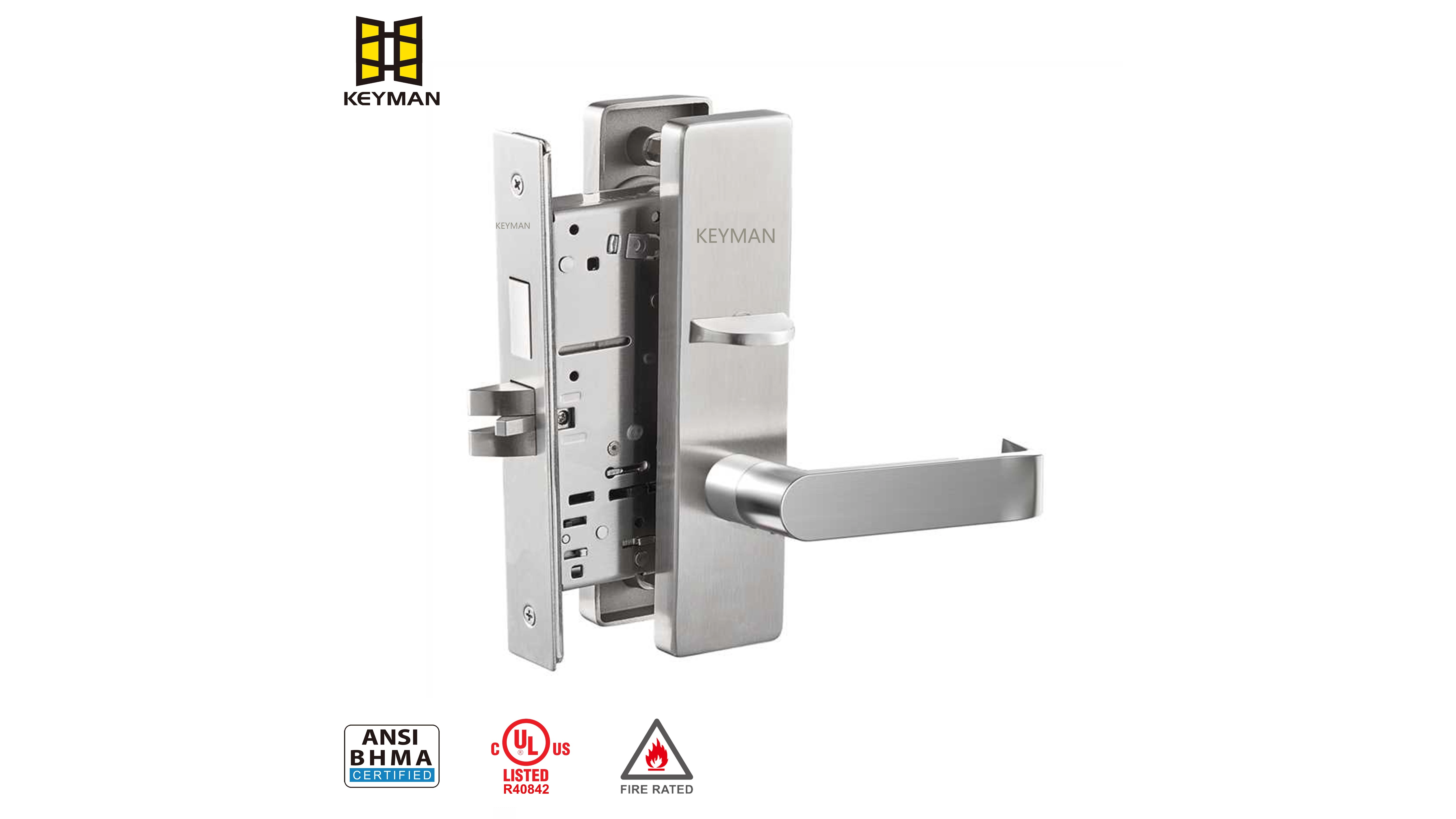

Before you begin assembly, it's crucial to familiarize yourself with the key components of a mortise lock. A typical mortise lock body consists of:
· Lock Body: The main chassis that houses the locking mechanism.
· Latch Bolt: The spring-loaded bolt that retracts when you turn the doorknob.
· Deadbolt: The solid bolt that is engaged and disengaged by the key.
· Strike Plate: The metal plate attached to the door jamb that the bolts extend into.
· Faceplate: The visible plate on the edge of the door that covers the mortise.
· Knobs/Levers: The handles used to retract the latch bolt.
· Key Cylinder: The part where the key is inserted to operate the deadbolt.
Having all these parts organized and understood is the first step toward a successful installation.
· Mortise lock set
· Tape measure
· Pencil
· Chisel
· Hammer
·Electric drill with spade and drill bits
· harp utility knife
· Screwdrivers (flathead and Phillips)
· Masking tape
The most critical part of the process is accurately marking and cutting the mortise.
1.Measure and Mark: Consult the template provided with your lock kit. If no template is available, hold the lock body against the edge of the door to mark its outline. Typically, the lock body is centered on the door edge, 36-48 inches from the bottom. Precisely mark the area where the mortise will be cut.
2.Drill Pilot Holes: Use a spade bit or a Forstner bit to drill a series of overlapping holes within the marked outline on the door's edge. This removes the bulk of the wood for the mortise pocket. Be careful not to drill too deep; the depth should match the thickness of the lock body.
3.Chisel the Mortise: Use a sharp chisel and hammer to clean out the remaining wood and square the edges of the mortise. The lock body should fit snugly into this pocket without any wobbling.
1.Bore the Cross Bore: This is the large hole through the face of the door for the knobs/levers and the key cylinder. Measure and mark the center point for this hole on both sides of the door. Use a hole saw attachment on your drill to create this bore, ensuring it aligns perfectly with the mortise pocket on the edge.
2.Drill the Cylinder Hole: From the edge mortise towards the cross bore, you may need to drill a smaller connecting hole for the spindle and the tailpiece of the key cylinder. The lock's instructions will specify the required size.
1.Insert the Mechanism: Carefully slide the mortise lock body into the pocket you chiseled out on the door's edge.
2.Attach the Faceplate: Secure the faceplate to the front of the lock body using the provided screws. This plate should sit flush with the edge of the door.
3.Connect the Interior Hardware: Insert the key cylinder through the hole on the exterior side of the door. From the interior side, slide the knob/lever spindle through the hole and connect it to the interior knob. The tailpiece from the key cylinder must connect to the corresponding lever inside the lock body. Secure everything with the provided screws.
1.Mark the Location: Close the door and mark the position of the latch and deadbolt on the door jamb.
2.Chisel the Jamb: Use a chisel to create recesses in the jamb for both the strike plate and the path of the bolts. The strike plate must be mortised into the jamb so it sits flush.
3.Secure the Plate: Screw the strike plate firmly into place. Ensure the bolts extend smoothly and securely into the jamb without obstruction.
· Test Thoroughly: Before considering the job complete, test the lock multiple times with the door closed. Ensure the latch retracts smoothly with the knob and that the deadbolt throws easily with the key.
· Lubrication: If any action feels gritty or stiff, a small amount of graphite-based lubricant (not oil, which can attract dirt) can greatly improve performance.
· Take Your Time: Rushing the mortising process is the most common cause of installation errors. Precise measurements and clean cuts are paramount for a professional-looking and functional result.
Assembling and installing a mortise lock requires patience and attention to detail, but the result is a significant upgrade in door security and aesthetics. By following this guide, you can confidently tackle this project and ensure your door is equipped with a reliable and long-lasting locking system.
