A mortise lock cylinder that won't turn, sticks frequently, or has been damaged doesn't mean you need to replace your entire lock system. Changing just the cylinder is often the most cost-effective solution, and it's a project most homeowners can tackle with basic tools and patience.
This guide walks you through the complete process of replacing a mortise lock cylinder, from identifying the right replacement part to testing your newly installed hardware. Whether you're dealing with a worn-out cylinder or upgrading your home security, you'll have the knowledge to complete this repair confidently.
Before beginning any work on your mortise lock, gather these essential tools and materials:
Tools Required:
· Flathead screwdriver
· Phillips head screwdriver
· Needle-nose pliers
· Flashlight or headlamp
· Measuring tape
Materials:
· Replacement mortise lock cylinder (ensure it matches your lock's specifications)
· Lock lubricant or graphite spray
· Clean cloth or paper towels

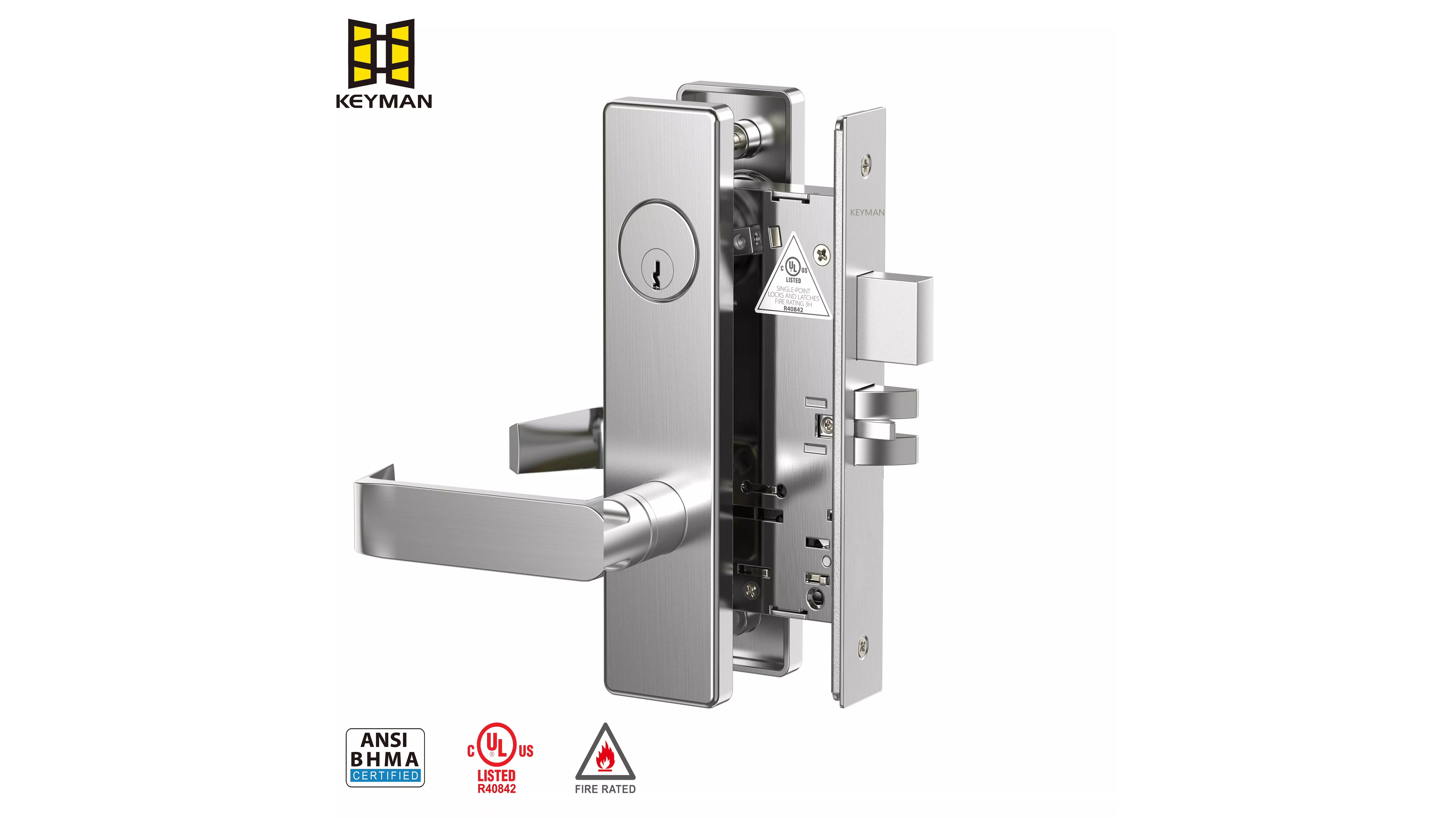

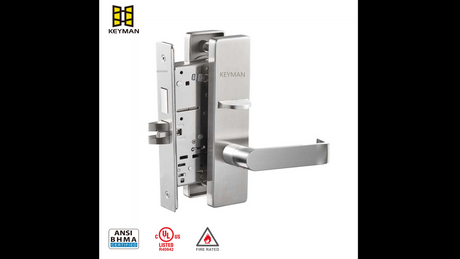

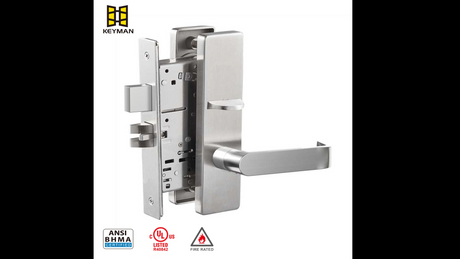

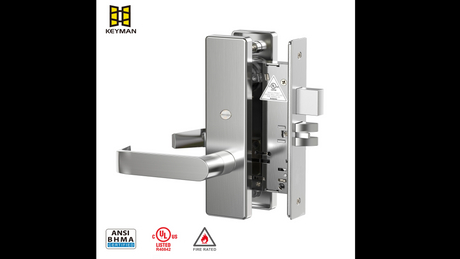

Take a moment to examine your existing mortise lock setup. Most mortise locks feature a rectangular lock body that fits into a pocket (or "mortise") cut into the door's edge. The cylinder sits within this body and connects to the lock mechanism through a cam or tailpiece.
Start by removing the door knobs or handles from both sides of the door. Look for screws on the interior side of the door handle — these typically hold the entire handle assembly together.
Unscrew these fasteners completely and carefully pull the handles away from the door. Some mortise lock systems use a different mounting method, so check your specific hardware if the handles don't come off easily.
Set the removed hardware aside in a safe location where small screws won't get lost.
With the handles removed, you can now access the mortise lock body. Locate the screws that secure the lock body to the door — these are usually found on the door's edge, around the latch plate.
Remove these screws and gently pull the lock body out of the mortise cavity. The lock body might be snug, so work it out slowly to avoid damaging the surrounding wood or the lock mechanism itself.
Place the extracted lock body on a clean, well-lit work surface where you can easily manipulate it.
Examine the lock body to identify the cylinder. The mortise lock cylinder typically sits at the center of the mechanism and connects to a cam or tailpiece that operates the locking mechanism.
Look for a small screw or clip that holds the cylinder in place — this is usually located on the side or back of the lock body. Remove this securing mechanism carefully, as these small parts are easily misplaced.
Once the retaining mechanism is removed, the cylinder should slide out of the lock body. Some cylinders require a slight twisting motion to disengage from the internal mechanism.
Before installing your replacement cylinder, verify that it matches the specifications of the original. The cylinder should be the same length and have the same cam or tailpiece configuration.
Apply a small amount of lock lubricant to the cylinder before insertion — this helps ensure smooth operation and prevents binding.
Slide the new cylinder into the lock body, ensuring it seats properly and aligns with the internal mechanism. The cam or tailpiece should engage correctly with the lock's operating components.
Secure the cylinder using the same screw or clip you removed earlier. Make sure this fastener is tight enough to prevent the cylinder from moving, but don't overtighten and risk damaging the threads.
Before reassembling everything, test the new cylinder's operation. Insert your key and turn it in both directions to ensure smooth movement and proper engagement with the lock mechanism.
The cylinder should turn easily without binding or sticking. If you encounter resistance, remove the cylinder and check that it's properly seated and aligned with the internal components.
This testing phase is crucial — it's much easier to make adjustments now than after you've reinstalled the entire lock system.
Once you've confirmed the cylinder operates correctly, reassemble the mortise lock system in reverse order.
First, carefully insert the lock body back into the door's mortise cavity. Ensure it sits flush with the door's edge and aligns properly with the existing holes.
Replace and tighten the screws that secure the lock body to the door. These should be snug but not overtightened, as excessive force can damage the door or binding the lock mechanism.
Finally, reattach the door handles or knobs. Make sure they're properly aligned and that all screws are securely fastened.
After reassembly, conduct a thorough test of your mortise lock system. Try the following operations:
· Lock and unlock the door from both sides using your key
· Test the door handle operation from both interior and exterior
· Verify that the latch engages properly with the door frame
· Check that the deadbolt (if present) extends and retracts smoothly
If any operation feels stiff or doesn't work correctly, disassemble the relevant components and check for proper alignment or installation issues.
Cylinder won't turn smoothly: This often indicates misalignment or lack of lubrication. Remove the cylinder, apply graphite lubricant, and ensure proper seating during reinstallation.
Key doesn't insert easily: Check that you have the correct replacement cylinder. Even small dimensional differences can cause key insertion problems.
Lock mechanism doesn't engage: Verify that the cylinder's cam or tailpiece properly connects with the internal lock mechanism. Incorrect alignment here prevents proper operation.
While changing a mortise lock cylinder is typically a straightforward DIY project, certain situations warrant professional assistance. Consider calling a locksmith if you encounter stripped screws, damaged lock bodies, or if the mortise cavity itself needs repair.
Additionally, if your door has multiple locking points or complex security features, professional installation ensures everything functions correctly and maintains your home's security integrity.
Regular maintenance extends the life of your new mortise lock cylinder. Apply graphite lubricant every six months, and avoid using oil-based products that can attract dirt and cause binding.
Keep spare keys in good condition, as worn or damaged keys can accelerate cylinder wear. If you notice any stiffness or irregular operation, address these issues promptly to prevent more extensive problems.
