Have you ever pushed open a door during an emergency and wondered about the horizontal bar that made your quick escape possible? That crucial piece of hardware is called an exit device, and it plays a vital role in building safety and security. Understanding what exit devices are, how they work, and when they're required can help property owners, facility managers, and safety professionals make informed decisions about building access control.
An exit device is a door hardware mechanism designed to allow quick and easy egress from a building during emergencies while maintaining security when the building is occupied. Also known as panic hardware, crash bars, or push bars, these devices are specifically engineered to unlock doors with minimal effort, typically requiring no more than 15 pounds of force to operate.
Exit devices operate on a simple yet effective principle. When someone pushes against the horizontal bar or touchpad, the mechanism retracts the latch bolt, allowing the door to open freely. This design ensures that even in panic situations, people can exit quickly without fumbling with keys, knobs, or complex locking mechanisms.
The basic components of an exit device include the actuating bar or touchpad, the latch mechanism, and the strike plate mounted on the door frame. When pressure is applied to the bar, it activates a linkage system that withdraws the latch from the strike, releasing the door. The entire process happens instantly, making it ideal for emergency situations where every second counts.

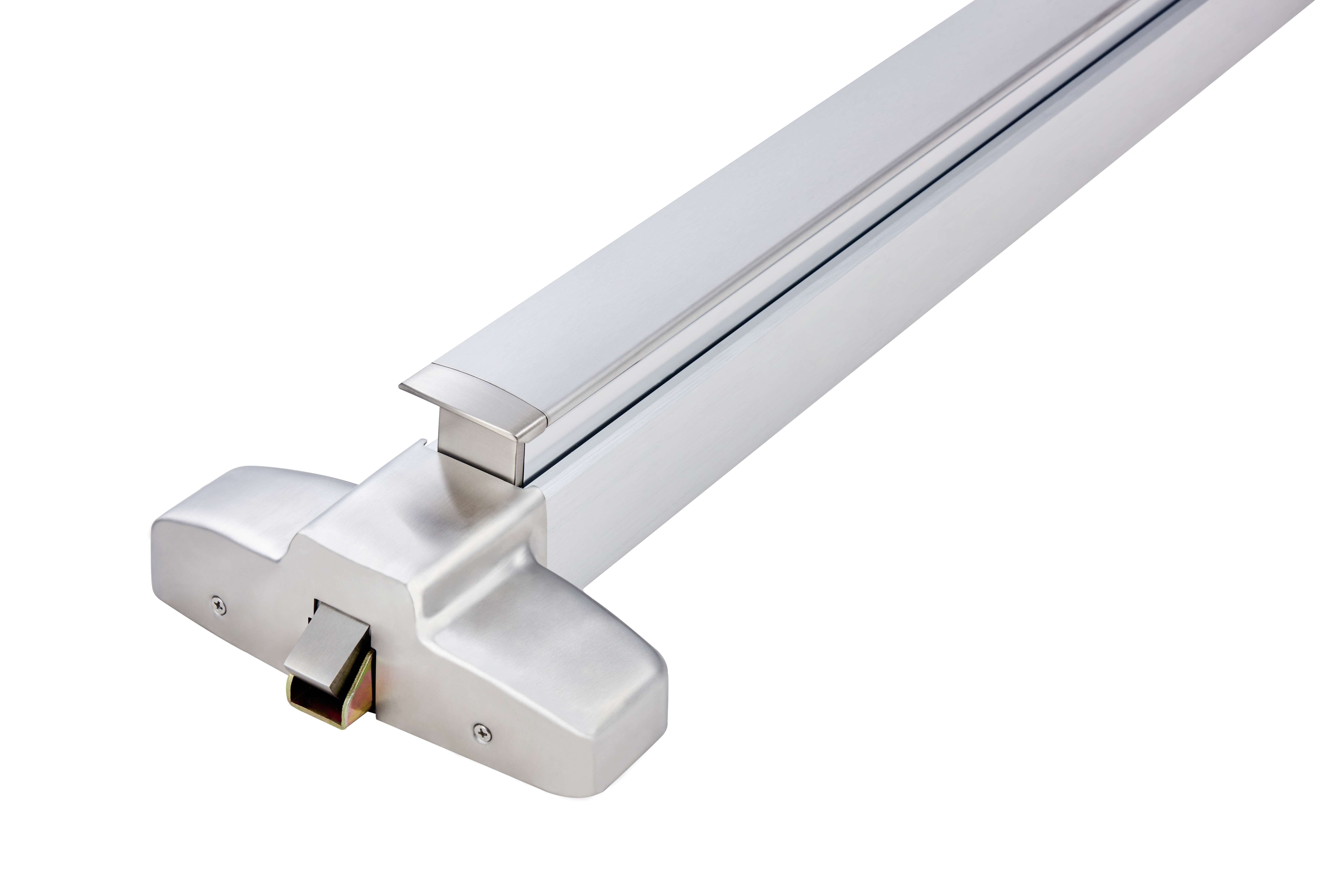

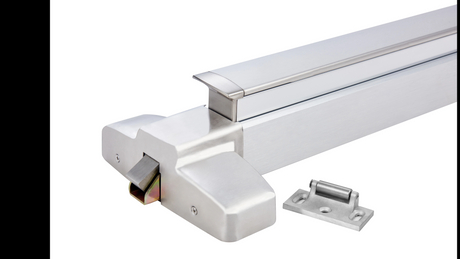

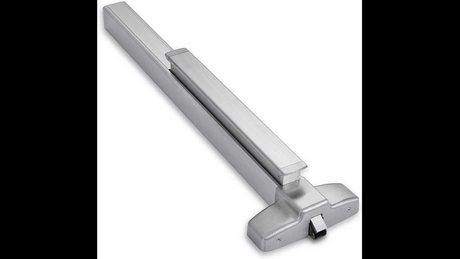

Rim exit devices mount on the interior surface of the door and are the most common type found in commercial buildings. The latch mechanism extends horizontally from the device into a strike mounted on the door frame. These devices are relatively easy to install and maintain, making them popular for retrofit applications.
Mortise exit devices integrate with mortise locksets, where the latch mechanism fits into a pocket cut into the door edge. This configuration provides a cleaner appearance since less hardware is visible on the door surface. Mortise devices typically offer more security options and can accommodate additional locking points.
These exit devices use vertical rods that extend from the main body to latching points at both the top and bottom of the door. When activated, the rods retract simultaneously, releasing both latching points. Surface vertical rod devices are often used on double doors or where additional security is needed.
Similar to surface vertical rod devices, but the rods run inside the door rather than on its surface. This creates a cleaner appearance while providing the same multi-point latching capability. However, installation is more complex since the door must be prepared to accommodate the internal hardware.
Building codes mandate exit devices in specific situations to ensure occupant safety. The International Building Code (IBC) and local fire codes typically require exit devices on doors serving:
High-occupancy spaces where more than 50 people may be present at one time need exit devices on their egress doors. This includes auditoriums, conference rooms, restaurants, retail stores, and similar facilities.
Educational facilities must install exit devices on doors serving classrooms, hallways, and other areas where students and staff congregate.
Assembly occupancies such as theaters, churches, sports facilities, and event venues require exit devices to handle large numbers of people who may need to exit quickly.
Hazardous occupancies including laboratories, manufacturing facilities, and areas where dangerous materials are stored or used must have exit devices for rapid evacuation.
The specific requirements can vary by jurisdiction, so it's essential to consult local building codes and fire marshals when planning installations.
Exit devices provide numerous advantages beyond basic emergency egress. They eliminate the need for occupants to locate keys or understand complex unlocking procedures during stressful situations. This is particularly important when visibility may be limited due to smoke or power outages.
From a security standpoint, exit devices allow buildings to remain locked from the outside while permitting free egress from the inside. This prevents unauthorized entry while ensuring occupants can always leave safely. Many modern exit devices can integrate with access control systems, providing detailed logs of when doors are used.
Building owners appreciate exit devices because they help ensure code compliance and reduce liability risks. Insurance companies often view buildings with proper exit devices more favorably, potentially leading to lower premiums.
Proper installation of an exit device requires careful attention to manufacturer specifications and local codes. The device must be mounted at the correct height—typically between 34 and 48 inches from the floor—and positioned to operate with minimal force.
Regular maintenance is crucial for reliable operation. This includes lubricating moving parts, checking for proper latch alignment, testing the activation force, and ensuring the device operates smoothly. Many facilities establish quarterly or semi-annual inspection schedules to verify exit device functionality.
Professional installation and maintenance are recommended, as improperly functioning exit devices can create serious safety hazards and code violations. Qualified technicians understand the nuances of different device types and can ensure optimal performance.
Selecting an appropriate exit device involves considering several factors. The door type, frame construction, and aesthetic requirements all influence the choice. High-traffic areas may benefit from heavy-duty devices designed to withstand frequent use, while low-traffic applications might use standard-duty options.
Security requirements also play a role in selection. Some exit devices offer additional features like delayed egress, which allows a brief delay before unlocking to deter unauthorized use while still permitting emergency exit. Others can integrate with alarm systems to alert security personnel when activated.
Environmental conditions matter as well. Exterior doors or those in harsh conditions may require specialized finishes or materials to prevent corrosion and ensure long-term reliability.
Exit devices represent a critical component of building life safety systems. They provide the reliable means of egress that occupants depend on during emergencies while maintaining necessary security during normal operations. Understanding their function, types, and requirements helps ensure proper selection and installation.
For property owners and facility managers, investing in quality exit devices and maintaining them properly demonstrates a commitment to occupant safety and regulatory compliance. When emergencies occur, these devices can mean the difference between a safe evacuation and a tragedy.
