Building safety depends on reliable emergency exit systems that allow people to evacuate quickly during emergencies. Among the most critical components of these systems is the rim exit device—a specialized piece of hardware that combines security with swift egress capabilities. Understanding how these devices work can help building owners, facility managers, and safety professionals make informed decisions about their exit systems.
A rim exit device serves as the primary mechanism that enables people to exit a building rapidly while maintaining security when the building is occupied normally. Unlike standard door locks that require keys or complex operations, these devices activate with simple pressure, making them essential for emergency situations where every second counts.

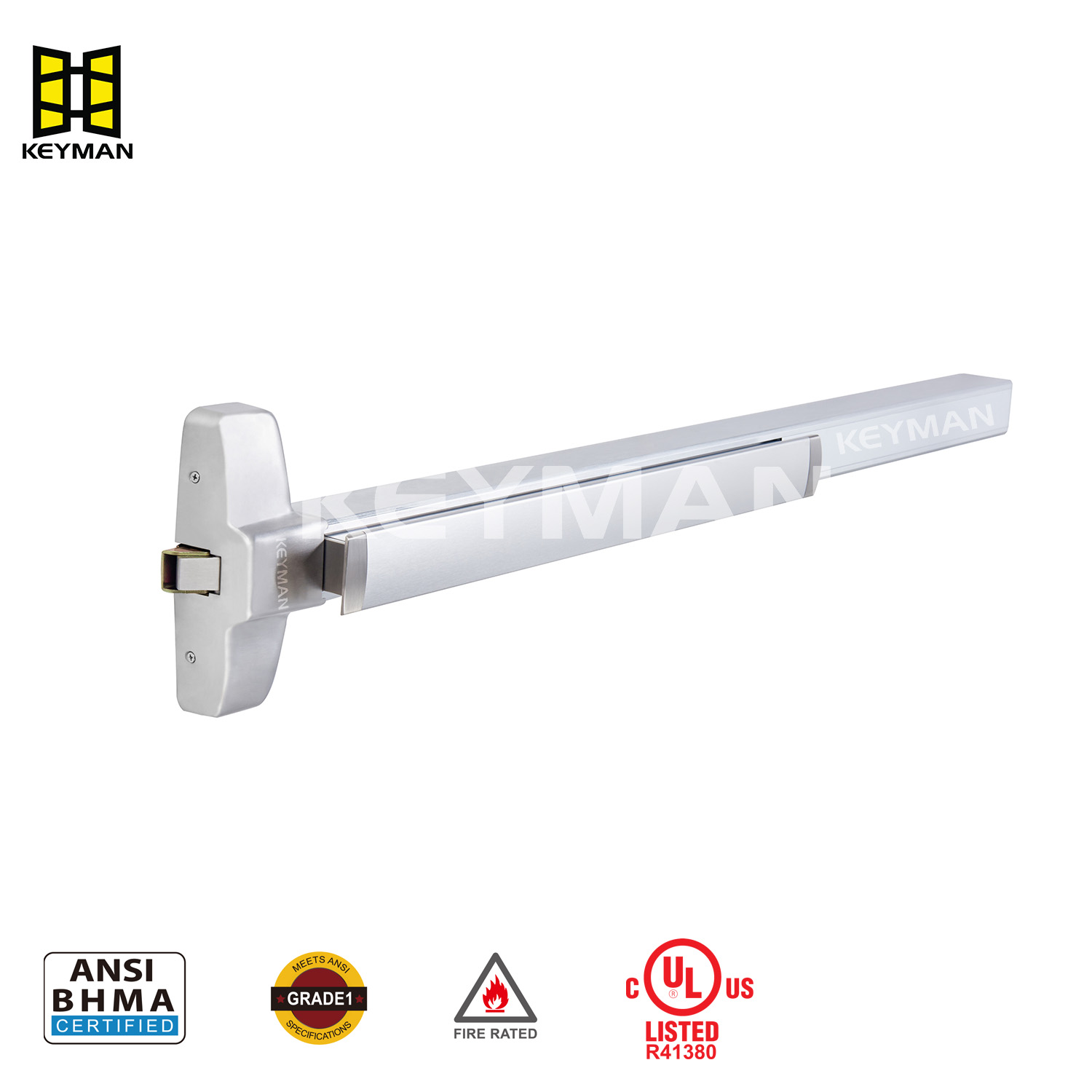

A rim exit device is a type of exit device that mounts directly onto the surface of a door, typically on the interior side. The "rim" designation refers to its surface-mounted installation method, distinguishing it from mortise exit devices that require cutting into the door itself.
The device consists of several key components working together to provide reliable operation. The horizontal push bar extends across the door at a comfortable height, usually between 30 and 44 inches from the floor. When someone applies pressure to this bar, it activates the release mechanism that retracts the latch, allowing the door to open freely.
The latch mechanism connects the push bar to the actual locking components. Most rim exit devices use a dogging feature that allows authorized personnel to temporarily hold the latch in a retracted position for periods when the door needs to remain unlocked, such as during events or heavy traffic periods.
The operation of a rim exit device relies on straightforward mechanical principles designed for reliability under stress. When pressure is applied to the push bar—typically requiring no more than 15 pounds of force as mandated by building codes—the internal mechanism immediately retracts the latch.
This simple push-to-exit operation eliminates the need for turning knobs, inserting keys, or performing any complex motions that might delay evacuation during emergencies. The device automatically re-engages once the door closes, restoring security without requiring manual intervention.
Many modern rim exit devices incorporate additional features like alarm capabilities that sound when the door opens unexpectedly, helping prevent unauthorized exits while still maintaining emergency egress functionality. Some models also include delay mechanisms that prevent immediate exit for a predetermined time period, giving security personnel time to respond to potential unauthorized use.
Rim exit devices come in several configurations to meet different building requirements and security needs. Standard rim exit devices provide basic push-to-exit functionality suitable for most commercial applications where straightforward emergency egress is the primary concern.
Fire-rated models meet specific fire safety standards and include features like automatic latch retraction when connected to fire alarm systems. These devices ensure that fire doors remain accessible during emergencies while maintaining their fire-resistant properties during normal operation.
High-security versions incorporate additional locking mechanisms and tamper-resistant features for applications where security is paramount. These might include devices with multiple locking points or integration with electronic access control systems that can monitor and log door activity.
Weather-resistant models designed for exterior doors include sealing and corrosion-resistant materials to withstand environmental exposure while maintaining reliable operation through various weather conditions.
Proper installation of rim exit devices requires careful attention to building codes and manufacturer specifications. The Americans with Disabilities Act (ADA) mandates specific height requirements, and most local building codes adopt International Building Code (IBC) standards that govern exit device installation.
The push bar must be mounted between 30 and 44 inches above the floor, positioned to be easily accessible to people of varying heights and physical abilities. The device must operate with no more than 15 pounds of force, ensuring that children, elderly individuals, and people with limited mobility can activate it successfully.
Door preparation involves ensuring the door frame can support the device's mounting requirements and that the door itself opens in the direction of egress. Rim exit devices work exclusively on doors that swing outward from the building or area being exited, as this configuration provides the most effective emergency evacress.
Regular testing and maintenance schedules help ensure continued reliable operation. Most building codes require periodic inspection and testing of exit devices, with documentation of their proper function.
Educational facilities rely heavily on rim exit devices for classroom and corridor doors, where rapid evacuation capability is essential for student safety. These environments benefit from the devices' simple operation that doesn't require training or special knowledge to use effectively.
Healthcare facilities use rim exit devices in areas where patients and visitors need reliable exit access without compromising security. The push-bar operation works well for people who might be disoriented or under stress during emergency situations.
Commercial office buildings install these devices on stairwell doors, conference rooms, and other areas where groups of people might need to evacuate simultaneously. The devices prevent bottlenecks that could develop if people had to fumble with traditional door hardware during emergencies.
Retail environments use rim exit devices to balance security needs with fire safety requirements, allowing normal business operations while ensuring compliance with occupancy and egress regulations.
Regular maintenance keeps rim exit devices functioning properly when they're needed most. Monthly visual inspections should check for any obvious damage, ensure the push bar moves freely, and verify that the door opens smoothly when the bar is pressed.
Lubrication of moving parts according to manufacturer recommendations prevents binding and ensures smooth operation. Most devices require periodic application of appropriate lubricants to pivot points and the latch mechanism.
Common issues include push bars that stick or require excessive force to operate, often caused by dirt buildup or lack of lubrication. Latch mechanisms that fail to retract fully might indicate worn components that need replacement or adjustment.
Professional inspection and maintenance should occur annually or as required by local codes, with qualified technicians checking internal mechanisms, testing alarm functions if present, and ensuring continued code compliance.
Selecting appropriate rim exit devices requires consideration of several factors specific to your building and its occupants. Traffic volume affects durability requirements, with high-use doors needing heavy-duty models designed for frequent operation.
Security needs influence feature selection, from basic models suitable for low-risk applications to high-security versions with additional locking mechanisms and monitoring capabilities. Integration with existing access control or alarm systems might require specific models with appropriate connectivity options.
Environmental factors like weather exposure, temperature extremes, or corrosive conditions determine material requirements and sealing needs for reliable long-term operation.
Rim exit devices represent a critical component in building safety systems, balancing the competing needs of security and emergency egress. Their surface-mounted design offers straightforward installation while providing reliable operation when occupants need to evacuate quickly.
Understanding the various types, installation requirements, and maintenance needs helps building professionals make informed decisions that protect both property and occupants. Regular attention to these devices ensures they'll perform their vital function when emergencies arise, potentially saving lives through their simple yet effective design.
For buildings requiring reliable emergency egress solutions, rim exit devices offer proven performance backed by decades of development and real-world testing. Consulting with qualified security hardware professionals helps ensure proper selection, installation, and maintenance for optimal safety and code compliance.
