Have you ever tried to replace a lock in your home, only to find yourself staring at a wall of options, completely baffled by the terminology? You're not alone. One of the most confusing parts of this process can be figuring out the correct size for the lock cylinder. A cylinder that's too short won't secure your door properly, while one that's too long can be a security risk.
Understanding the dimensions of a residential lock is crucial for ensuring your home's security and for a smooth installation process. Whether you're upgrading your locks for better security, replacing a broken one, or simply changing the style, knowing the right cylinder size is the first step. This guide will walk you through everything you need to know about residential lock cylinder sizes, how to measure them correctly, and what to consider when making your purchase. By the end, you'll be able to choose a new lock with confidence.

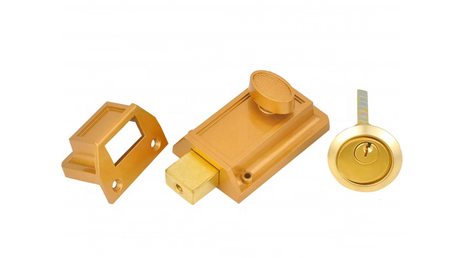

Before we get into measurements, let's clarify what a lock cylinder is. The lock cylinder, often called the lock body or housing, is the part of the lock where you insert your key. Inside this metal casing is a series of pins that must be aligned correctly by the key to allow the plug to turn. When the plug turns, it operates a cam or tailpiece that engages and retracts the bolt, ultimately locking or unlocking your door.
This component is the heart of your lock's security mechanism. Its size, type, and quality directly impact how secure your door is against picking, drilling, and other forms of forced entry. While it might seem like a small part of the overall lockset, it plays a massive role in keeping your home safe.
For most homeowners in the United States, the good news is that residential door hardware follows fairly consistent standards. This standardization simplifies the process of replacing or upgrading locks.
The most common type of lock cylinder found in a residential lock is the Kwikset Keyway (KW1) or Schlage Keyway (SC1). While the keyways differ, the physical dimensions of the cylinders are often interchangeable.
Here are the typical measurements you'll encounter for a standard residential lock cylinder:
· Length: The standard length for most residential lock cylinders is 1 inch (approximately 25.4 mm). This is designed to fit a standard door thickness of 1 ⅜ to 1 ¾ inches.
· Diameter: The diameter of the cylinder body is typically around ½ inch.
· Backset: While not part of the cylinder itself, the backset is a critical measurement. It's the distance from the edge of the door to the center of the bore hole (the large hole where the lock is installed). The two standard backset sizes for residential doors are 2 ⅜ inches and 2 ¾ inches. Most residential locks come with an adjustable latch to fit either backset.
These standardized sizes mean that in many cases, you can purchase a new lockset from a different brand and have it fit your existing door without any major modifications.
If you have a non-standard door or just want to be certain you're buying the right size, measuring your existing lock cylinder is a straightforward process. You'll need a simple ruler or a tape measure.
To get an accurate measurement, you'll need to remove the cylinder from the door.
1.Unscrew the Lockset: Start by removing the screws on the interior side of the door that hold the handle or thumb-turn mechanism in place.
2.Separate the Halves: Gently pull the interior and exterior halves of the lockset apart. The cylinder is part of the exterior assembly.
3.Release the Cylinder: Depending on the lock brand, you may need to remove a C-clip or a couple of screws that hold the cylinder within the exterior housing. For many deadbolts, the cylinder is held in place by two long screws that pass through the door.
Once the cylinder is removed, lay it on a flat surface. Measure its length from one end to the other.
· For a single cylinder deadbolt (keyed on one side, thumb-turn on the other), you are measuring the keyed portion.
· For a double cylinder deadbolt (keyed on both sides), you will have two cylinders to measure, though they are typically the same length.
The measurement you get is the cylinder length. As mentioned, for a standard residential door, this will most likely be 1 inch.
It's also a good idea to measure the thickness of your door. Use your tape measure to determine the thickness at the edge of the door. Standard residential doors are 1 ⅜ inches or 1 ¾ inches thick. If your door is thicker, you will likely need a cylinder extension kit or a lock specifically designed for thicker doors.
Knowing both your cylinder length and door thickness will ensure you get a perfect fit. A correctly sized cylinder should sit flush with the surrounding hardware, not stick out excessively or be recessed.
While standards are common, there are situations where you might need a different size for your residential lock cylinder.
· Thick Doors: Custom or high-end doors can be 2 inches thick or more. These require longer cylinders to span the door's width and operate correctly. Many manufacturers sell extension kits or special-order locks for these applications.
· Thin Doors: Some interior or older doors might be thinner than 1 ⅜ inches. In these cases, you might need a shorter cylinder or a spacer to ensure the lock tightens properly.
· Mortise Locks: These are different from the common cylindrical locks. A mortise lock requires a large rectangular pocket (a mortise) to be cut into the door's edge. They use a specific type of threaded cylinder, called a mortise cylinder. These come in various lengths (e.g., 1 inch, 1 ⅛ inch, 1 ¼ inch) to accommodate different door thicknesses and hardware setups.
· Gate Locks: Locks used for outdoor gates often require longer cylinders to fit thicker or custom-built gate materials.
If you encounter one of these situations, it's best to take precise measurements and consult with a locksmith or a specialized hardware supplier.
Understanding the size of your residential lock cylinder is more than just a matter of convenience; it's a critical component of your home's security. A cylinder that is too long can be easily gripped with pliers and twisted off, a technique known as "lock snapping." Conversely, a cylinder that is too short may not fully engage with the locking mechanism, making the lock less effective.
By taking the time to understand and measure your hardware, you empower yourself to make smarter, safer choices for your home. You'll be able to navigate the hardware store with ease and perform a lock replacement yourself, saving time and money.
If you're ever in doubt, don't hesitate to seek professional help. A qualified locksmith can assess your needs, recommend the best products, and ensure your new residential lock is installed perfectly for maximum security and peace of mind.
