When it comes to installing mortise locks, precision is everything. For locksmiths, contractors, and DIY enthusiasts, understanding the standard cutout dimensions for ANSI mortise locks is critical to ensure proper installation and functionality. Whether you're securing a commercial property or upgrading a residential door, getting these measurements right is key.
This blog will guide you through the standard cutout dimensions for ANSI mortise locks, explain why these dimensions are so important, and provide helpful tips to make your installation process smooth and hassle-free.
The term "ANSI mortise locks" refers to locks that meet the guidelines set by the American National Standards Institute (ANSI). ANSI sets benchmarks for product quality, safety, and performance across numerous industries, including lock hardware.
ANSI/BHMA (Builders Hardware Manufacturers Association) standards for mortise locks ensure that the hardware is durable, secure, and compatible with various door types. These guidelines also specify the cutout dimensions for mortise locks to provide consistency and simplify installations.
By following ANSI specifications, manufacturers and installers can ensure that mortise locks fit correctly and perform optimally.

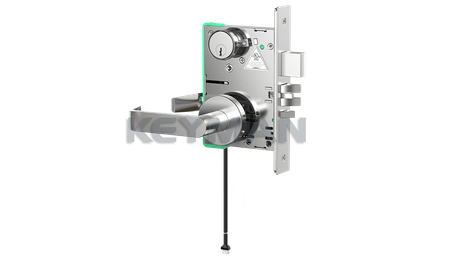

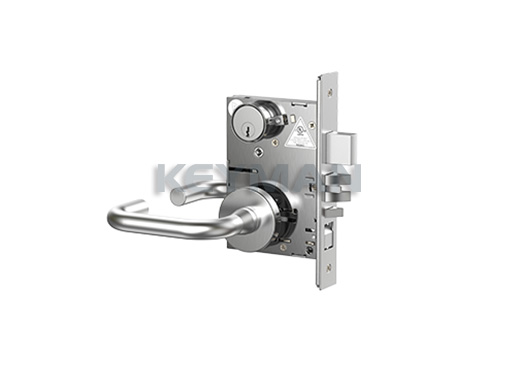

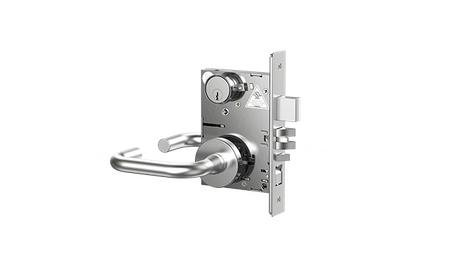

Before we get into dimensions, let's briefly discuss mortise locks. Unlike cylindrical locks or deadbolts, mortise locks require a rectangular pocket, or "mortise," to be cut into the edge of the door. This pocket houses the lock body, which contains all the internal components necessary for its operation.
Mortise locks are prized for their durability, security, and versatility. They're commonly used in commercial buildings and high-traffic areas but can also be found in residential applications.
Standard cutout dimensions ensure that:
● The mortise lock fits perfectly into the door's pocket.
● The lock operates smoothly without mechanical issues.
● The installation process is faster and easier, reducing errors.
● Replacement and repairs are more straightforward due to uniformity.
Without proper dimensions, the lock may not function correctly, compromising security and potentially damaging the door.
The cutout dimensions for ANSI mortise locks are specified under ANSI A156.13, which governs the technical requirements for mortise locksets.
Here are the key dimensions you need to know:
The faceplate is the part of the lock that is visible along the edge of the door.
● Height: Typically 8 inches (203.2 mm)
● Width: Typically 1 1/4 inches (31.75 mm)
Ensure the faceplate cutout depth matches the thickness of the faceplate itself to avoid it sitting unevenly on the door's edge.
The pocket depth refers to how deep the cavity in the door must be to house the lock body.
● Depth: Generally 4 1/8 inches to 5 inches (104.8 mm to 127 mm), depending on the lock model
This dimension ensures the lock body fits snugly within the door without obstruction.
The height of the mortise pocket must accommodate the lock body and its components.
● Height: Varies between 6 1/2 inches to 7 1/4 inches (165.1 mm to 184.15 mm)
The height must also align with the centerline of the door's latch or strike plate.
The pocket width must precisely fit the width of the lock body.
● Width: Typically 7/8 inch (22.2 mm) to 1 inch (25.4 mm)
If this is too narrow, the lock won't fit. Too wide, and the lock may shift during operation.
The backset is the distance from the edge of the door to the center of the keyhole or cylinder.
● Standard Backset: 2 3/4 inches (69.85 mm)
The backset ensures proper alignment with the keyhole or thumb turn.
The strike plate is installed on the door frame and catches the latch when the door is closed.
● Dimensions:
Height: 4 7/8 inches (123.82 mm)
Width: 1 1/4 inches (31.75 mm)
Lip to Center (distance from the strike plate's edge to the center of the latch): Varies by application, but typically 1 3/16 inches (30.16 mm)
To ensure the precise dimensions needed for an ANSI mortise lock, you'll need the following tools:
● Mortise Jig: Helps accurately cut the pocket on the door.
● Chisel: Ideal for crafting clean edges.
● Router and Mortising Bit: Speeds up the cutout process while ensuring precision.
● Measuring Tape and Square: Essential for accuracy.
● Marking Pencil: For outlining the cutout dimensions before cutting.
Here are a few tips to ensure a seamless installation:
1.Double Check Measurements: Before cutting, verify all measurements against the lock manufacturer’s specifications, as minor variations can occur.
2.Use a Mortise Jig: A good quality mortise jig can save time and ensure accuracy.
3.Drill Pilot Holes: When attaching screws, drilling pilot holes prevents splitting the wood.
4.Test Fit Before Final Assembly: Insert the lock body into the mortise to check its fit before securing it with screws.
5.Follow Manufacturer Guidelines: Always consult the lock’s instruction manual to avoid overlooking critical details.
6.Use Appropriate Hardware: Ensure that screws, strike plates, and other hardware are compatible with your lock and door material.
● Cutting Too Large a Pocket: This can weaken the structural integrity of the door.
● Misaligned Backset: If the backset is incorrect, the lock won’t function properly.
● Forgetting to Sand Rough Edges: Sanding ensures the lock seats snugly without resistance.
While installing an ANSI mortise lock is often manageable for those with the right tools and skills, some situations call for a professional locksmith:
● High-security locks requiring special calibration
● Doors made of hard materials like steel or fiberglass
● Uniquely designed or custom-built doors
A professional can ensure the job is done efficiently and that the lock functions perfectly.
When it comes to installing ANSI mortise locks, knowing the standard cutout dimensions is non-negotiable. Proper measurements guarantee a secure and functional lock that stands the test of time. With the right tools, techniques, and attention to detail, you can confidently install a mortise lock that provides both security and peace of mind.
Should you need additional expertise or want help simplifying the process, engaging a locksmith or contractor familiar with ANSI standards can be a game-changer. Precision is crucial, and with this guide, you're already one step closer to a perfectly installed mortise lock.
