ANSI mortise locks are a popular choice for providing both security and durability. Commonly used in commercial buildings and high-traffic areas, these locks sit within the door itself rather than attaching to the surface, giving them a sleek, discreet look coupled with superior strength.
But before purchasing one, you may be asking yourself, “Is my door compatible with an ANSI mortise lock?” The answer ultimately depends on a few key factors, and this guide will help you determine whether your door is ready for an upgrade or if some modifications may be required.
Below, we’ll walk you through what an ANSI mortise lock is, the factors that determine compatibility, and how to measure your door for a perfect fit.

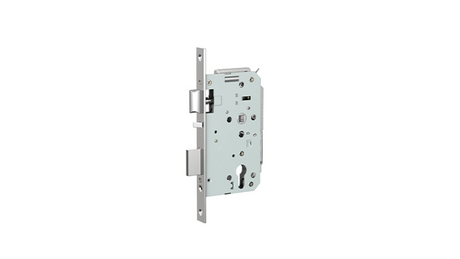

An ANSI mortise lock, named after the American National Standards Institute (ANSI), is a type of lock embedded directly into the edge of a door, requiring a pocket, or "mortise," to be cut into the door to house the locking mechanism. These locks are designed for both residential and commercial applications, offering a higher level of durability, security, and functionality than their cylindrical counterparts.
What sets ANSI mortise locks apart is that they conform to ANSI standards, ensuring consistent dimensions, performance, and reliability. This means you can trust that a lock labeled as ANSI-compliant adheres to strict specifications for security and quality.
Before we discuss compatibility, let’s first explore the benefits of ANSI mortise locks and why they're worth considering:
● Enhanced Security: Mortise locks are built to withstand force and tampering, making them more secure than traditional locks.
● Durability: Designed for high-traffic areas, these locks hold up well in demanding environments such as office buildings, hotels, and schools.
● Adaptability: They come with versatile locking features, including deadbolts, latch bolts, and privacy functions, making them suitable for a wide range of door types.
If these features align with your security needs, you’re one step closer to installing one. But first, your door must meet the proper specifications.
To determine whether your door is compatible with an ANSI mortise lock, keep the following factors in mind:
ANSI mortise locks are designed to fit specific door thicknesses. For standard ANSI mortise locks, doors should typically have a thickness between 1 3/4 inches and 2 inches. If your door is thinner or thicker than this range, you may need to either adjust the door thickness or select a custom lock designed for non-standard dimensions.
1.Use a tape measure to check the exact thickness of your door.
2.Write down the measurement to ensure it aligns with the lock's requirements provided by the manufacturer.
The edge-to-bore hole distance, often referred to as the backset, is equally important. Most ANSI mortise locks require a backset of 2 3/4 inches, which refers to the distance from the edge of the door to the center of the bore hole. This ensures the mortise lock aligns correctly with the opening.
1.Locate the center of the existing bore hole (it’s often where the handle or latch is).
2.Measure the distance from the center of this hole to the edge of the door.
If your backset doesn't meet this specification, some modifications to your door may be required.
Unlike cylindrical locks, ANSI mortise locks need a rectangular mortise pocket cut into the door's edge to house the mechanism. Take a look at the door to ensure it already has a mortise pocket. If not, you’ll need to use a router or hire a professional to carve one suitable for your lock.
● Open the edge of your door to visually inspect whether a mortise pocket is present.
● Verify that the pocket’s dimensions match the lock's specifications. Typically, dimensions for the pocket vary slightly depending on the lock manufacturer but follow ANSI guidelines.
Your door frame must also be compatible with the mortise lock. Check the strike plate on the frame to ensure it can accommodate a mortise lock’s latch and bolt. Many ANSI-compliant mortise locks come with their own strike plates designed for easy installation.
● Examine the frame for an existing strike plate. Does it match the latch and bolt configuration of your mortise lock?
● Measure the strike plate cutout to confirm that it aligns with the lock’s size and design.
Most ANSI mortise locks can be installed on doors made from wood, steel, or solid core materials. Hollow-core doors may not provide sufficient support for the heavy locking mechanism and could compromise the lock's functionality and security. Always verify that your door's material is strong enough to support the installation of a mortise lock.
If you're uncertain about your door's material, consult with the manufacturer or test its weight and sturdiness. Heavier doors are better suited for mortise locks.
If your door currently has a cylindrical lock, it may need modifications to accommodate a mortise lock. Cylindrical locks require a round bore hole, while mortise locks need a larger, rectangular pocket.
Before making any changes, ensure you’re ready to modify the door by either hiring a professional or using the correct tools (like a door lock mortising jig).
Proper measurements are crucial when installing a mortise lock. Here's a quick checklist to ensure you’re ready:
1.Door Thickness Measurement:
● Standard thickness is 1 3/4 to 2 inches.
2.Backset:
● Most ANSI mortise locks require a 2 3/4-inch backset.

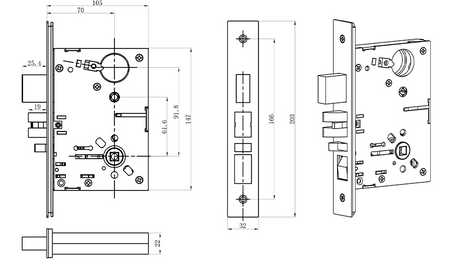

3.Mortise Pocket Dimensions:
● Measure the pocket width, height, and depth to match the mortise lock specifications.
4.Strike Plate Positioning:
● Align the positioning on the door frame to the lock’s latch and bolt design.
Taking accurate measurements eliminates guesswork and ensures that your installation goes smoothly.
If your door doesn’t currently meet all the compatibility requirements for an ANSI mortise lock, don’t worry. Here are your options:
● Modify the Door:
Work with a professional locksmith or carpenter to adapt your door, such as creating a mortise pocket or resizing the strike plate.
● Choose a Custom Lock:
Some manufacturers offer custom-sized mortise locks to fit non-standard doors.
● Upgrade Your Door:
For doors made of improper materials (e.g., hollow-core), consider replacing the door entirely for better security.
Determining if your door is compatible with an ANSI mortise lock is an important first step toward upgrading your security. From measuring the door thickness and backset to examining the material and mortise pocket, following this guide will ensure a seamless installation process. If adjustments are needed, consult with a professional to make your transition smooth and stress-free.
To take your first step in upgrading your security, explore the variety of ANSI mortise locks available on the market today. With the right fit, your door can provide the perfect balance of durability, security, and style.
