| Lever Trim | |||
| 5F | 01Function | 02Function | 03Function |
 |  |  | |
| Function | Dummy trim | Night latch | |
| Function Description | Exit only No trim. | Entrance by trim when actuating bar is dogged down. | Key retracts latchbolt |
| Product Code | — | X98025F01 | X98035F01 |

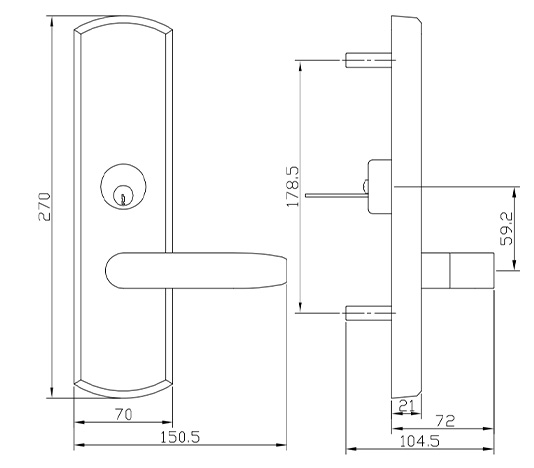

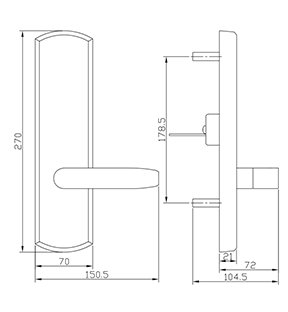

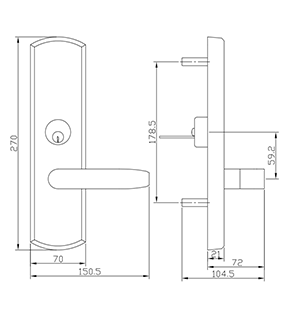

| Escutcheon Plate Size | — | 23/4"x103/4"×27/32" | 23/4"x103/4"×27/32" |
| (70x273x21mm) | (70x273x21mm) | ||
| Post Center to Center | — | — | — |
| Projection | — | 27/8'(73mm) | 27/8'(73mm) |
| ANSI Function | 1 | 2 | 3 |
| Cylinder Type | — | — | Rim Cylinder |
| Handing | — | Fixed. Need Specified Handing | Fixed. Need Specified Handing |
| A wide selection of finishes are available to match with your door and other hardware. | |||
| Color | Description | ANSI/BHMA | US |
 | Satin Brass | 606 | SB |
 | Polished Chrome | 625 | CP |
 | Satin Chrome | 626 | SC |
 | Satin Stainless Steel | 630 | SS |
