Keyman Prevent False Fire Door Alarms with Properly Integrated Exit Device Systems

Share to:

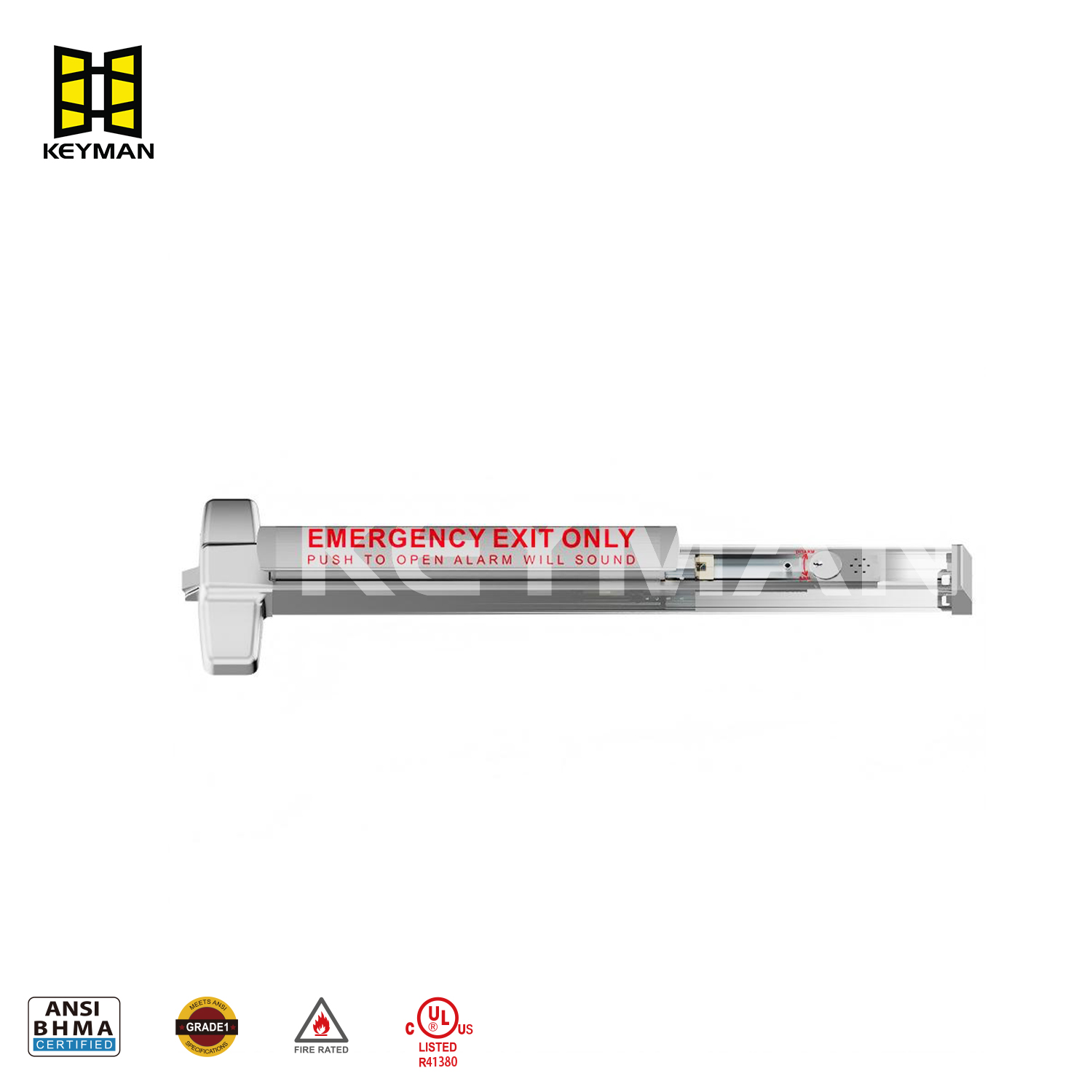

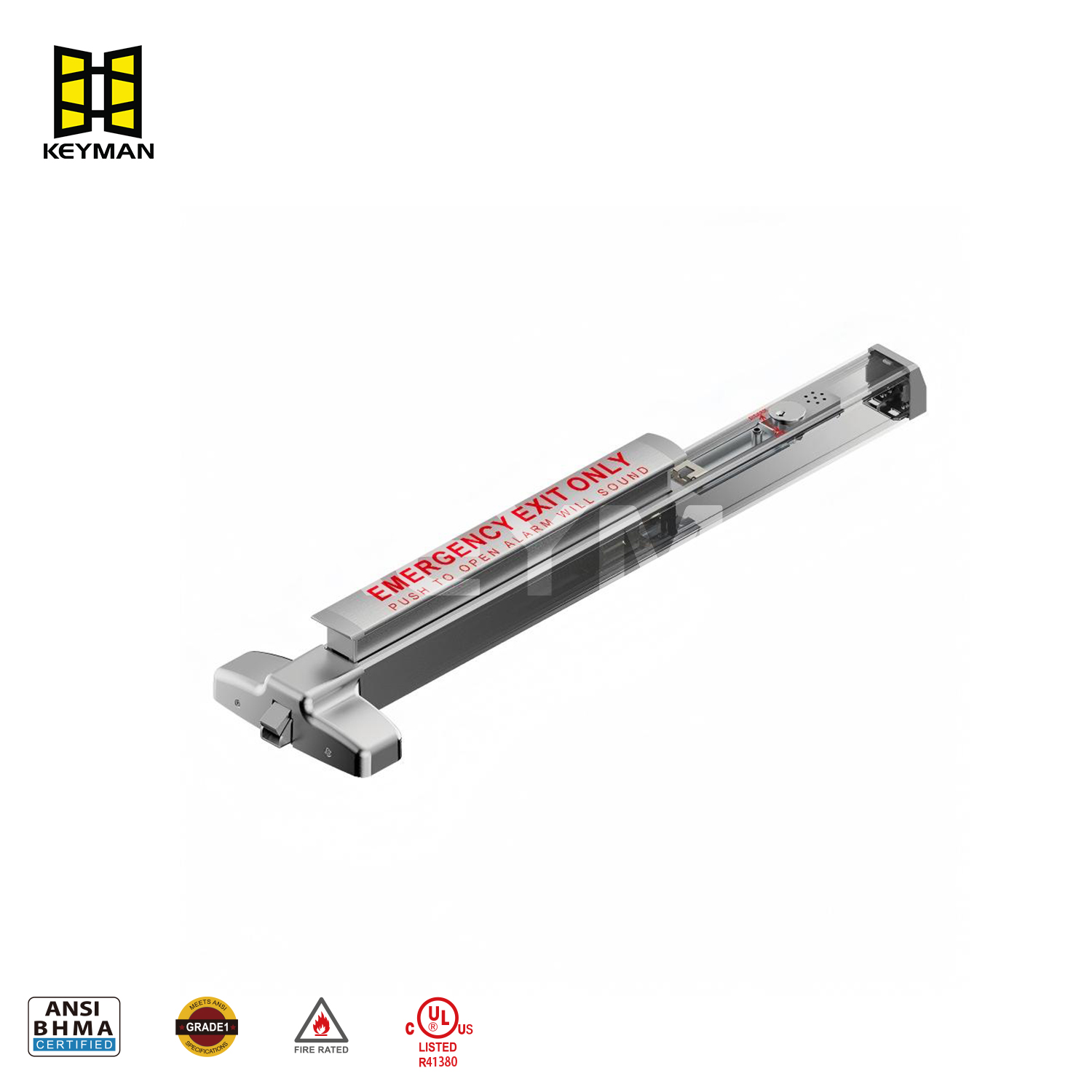

Keyman Prevent False Fire Door Alarms with Properly Integrated Exit Device Systems

This panic exit device features an integrated 90 dB alarm that deters unauthorized use while ensuring code-compliant emergency egress. Ideal for commercial buildings, it provides reliable security and immediate safety exit functionality. The alarm can be disarmed with a key, offering flexible access control.

Availability:

Quantity:



Inquire Add to Basket

Model:
X-Alarm

Exit Device Alarm Function Exit Device Alarm Function Push Bar Alarm kit Exit Device Alarm kit Panic Bar Push Bar Panic Exit Device with Alarm alarm panic bar Panic Hardware with Alarm commercial door push bar panic exit device with alarm Push Bar Panic Exit device

Product Description

This heavy-duty panic exit device combines emergency egress functionality with advanced alarm monitoring, specifically designed for high-security areas requiring controlled access.

Standardized Installation & Power Options
The device features a key switch compatible with a standard 1¼" (32mm) mortise cylinder, ensuring easy integration with existing key systems. It offers flexible power supply options, capable of operating from a standard 9-volt alkaline battery or via a hardwired connection for continuous, reliable performance.
Configurable Alarm Activation
Once the alarm function is enabled, any unauthorized pressure on the push bar immediately triggers the alert system. The unit responds with a rapid flashing red indicator light and an audible buzzer alarm, providing clear visual and audible warnings.
Clear Status Indication
Security personnel can easily monitor the system status from a distance. A steady, intermittent blinking green light indicates that the system is armed and functioning normally, allowing for quick status checks during security rounds.
Multiple Alert Modes
The system offers three programmable alarm modes to suit different security protocols: ① Red light flashing only (silent alert), ② Red light flashing with a 30-second audible alarm, or ③ Red light flashing with a continuous audible alarm until manually reset.
Secure Manual Reset
Following any alarm activation, the system requires an authorized key for resetting. This secure lock-out feature ensures that security personnel must physically respond to and acknowledge each incident, preventing the system from being easily silenced and maintaining accountability.
Comprehensive Warning Decal
A prominently displayed decal reading "EMERGENCY EXIT ONLY. PUSH TO OPEN ALARM WILL SOUND" is included for application directly on the door. This serves as a clear warning to deter casual misuse while informing authorized personnel of the proper procedure.
