You are here: Home » Products » Keyman UL/ANSI Fire Rated Panic Exit Device » Electrified Exit Devices and Trim » Keyman Heavy Duty Rim Exit Device with Electric Trim – Secure & Durable Access Control 5E

Product Category

5E Heavy Duty Rim Exit Device with Electric Trim – Secure & Durable Access Control

Share to:

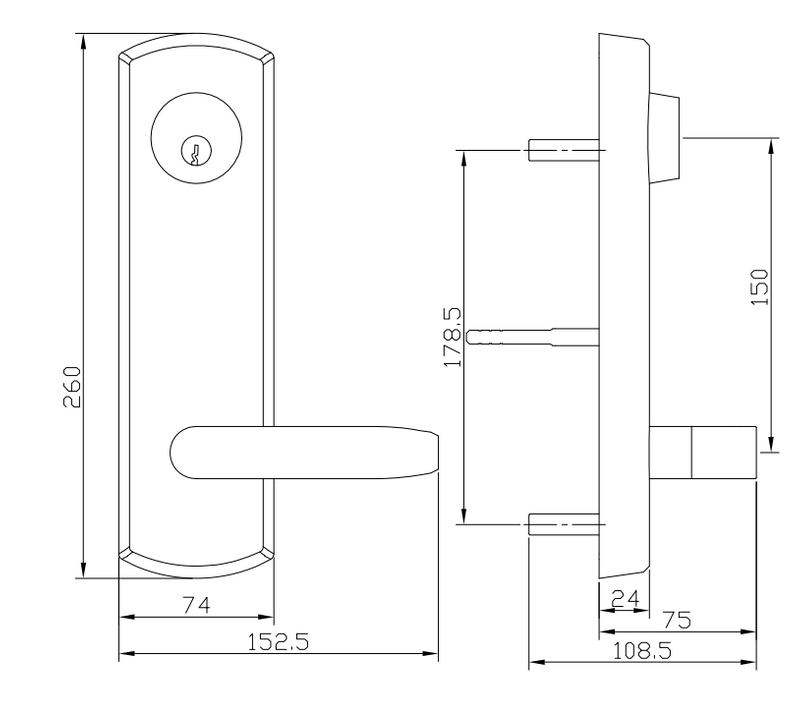

Keyman Heavy Duty Rim Exit Device with Electric Trim – Secure & Durable Access Control 5E

Product Code：X98085E01
Operating Temperature : -15°C to +65°C
Operating Humidity: 5% RH to 60% RH
Fail Safe / Fail Secure (Two modes has to specify, cannot switch by user)
Handing：Handed/Reversible
Cylinder type：ANSI Mortise Cylinder

Availability:

Quantity:



Inquire Add to Basket

Model:
5E-Electric Trim

Electric Trim Exit Device Price Heavy Duty Rim Exit Device Rim Exit Device with Electric Trim Commercial Rim Exit Device Fail-Safe Electric Trim Exit Device Fail-Secure Electric Trim Exit Device Hospital Door Exit Device with Electric Trim Electric Trim Exit Device for Schools Exit Device Electric Trim Replacement Heavy Duty Exit Device Installation

Product Description

Product Overview

This Heavy Duty Rim Exit Device with Electric Trim is engineered for high-traffic commercial environments, delivering exceptional durability, security, and controlled access. Compliant with ANSI Grade 1—the highest security standard—it is ideal for fire-rated doors, hospitals, schools, office buildings, and other demanding applications, ensuring reliable emergency egress while maintaining daily access control.

Key Features

✔ Superior Durability

Heavy-duty metal construction withstands intensive use
Corrosion-resistant finish for all weather conditions

✔ Electric Trim Functionality

Fail-Safe (unlocks during power failure) or Fail-Secure (remains locked) modes
Seamless integration with access control and alarm systems
Optional Delayed Egress feature to prevent unauthorized exits

✔ Top Security Certifications

ANSI/BHMA A156.3 Grade 1 Certified (highest security rating)
UL 10C Fire-Rated for fire door compliance
ADA-Compliant design for accessibility

✔ Easy Installation & Compatibility

Surface-mounted (Rim Mount) for quick installation
Fits standard commercial door preparations

Typical Applications

Healthcare: Hospital rooms, pharmacy access control
Education: Classroom doors, dormitory exits
Commercial Buildings: Office stairwells, warehouse entrances
Government Facilities: Prisons, courthouses (high-security areas)

Technical Specifications

Materials: High-strength steel/stainless steel
Finish: Electroplated/powder-coated
Voltage: 12/24VDC (customizable)
Operating Temperature: -15°C to +65°C

Why Choose Our Product?

16+ years of professional hardware manufacturing
3-year warranty included
Free technical support & installation guidance
OEM/ODM customization available

Product Overview

This Heavy Duty Rim Exit Device with Electric Trim is engineered for high-traffic commercial environments, delivering exceptional durability, security, and controlled access. Compliant with ANSI Grade 1—the highest security standard—it is ideal for fire-rated doors, hospitals, schools, office buildings, and other demanding applications, ensuring reliable emergency egress while maintaining daily access control.
