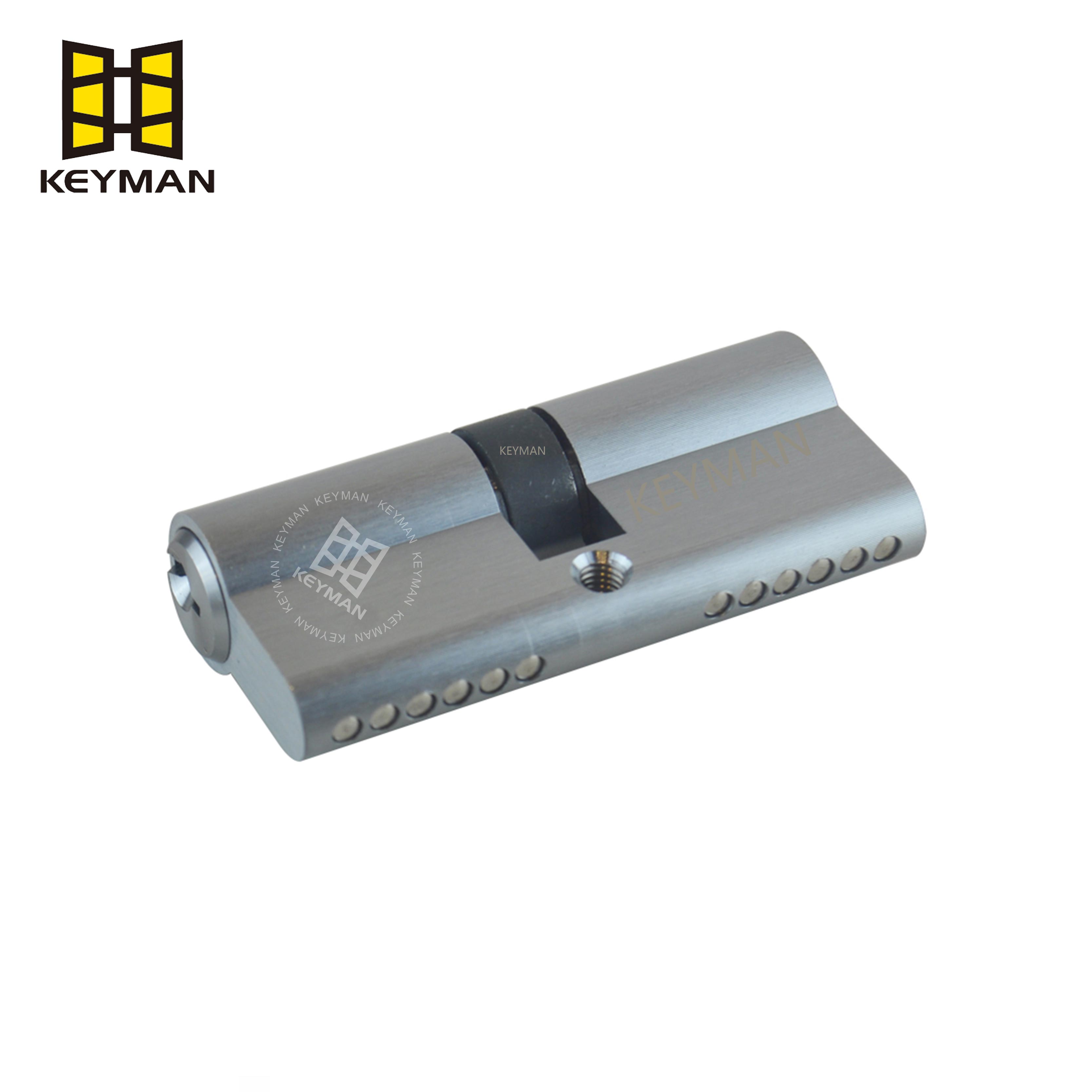

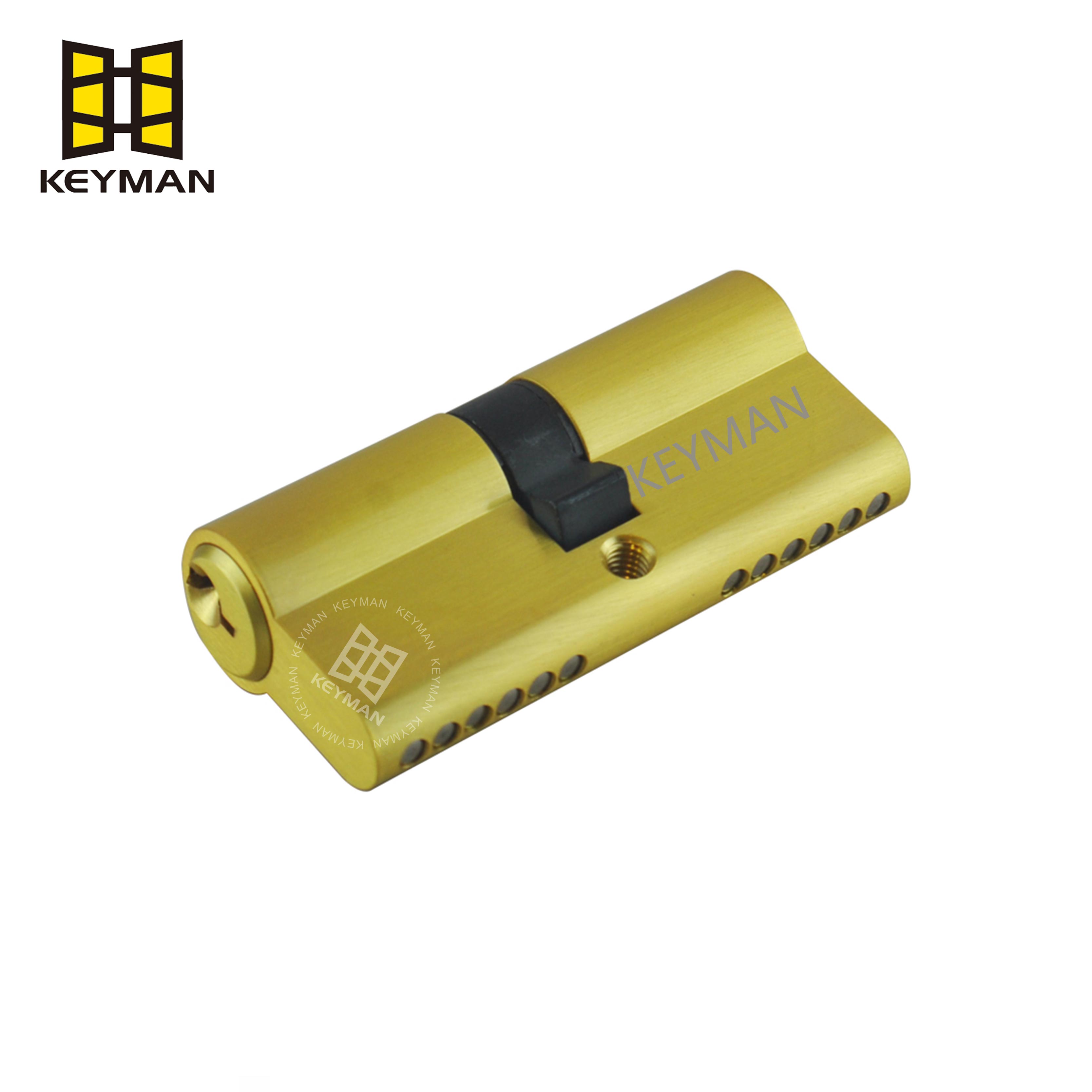

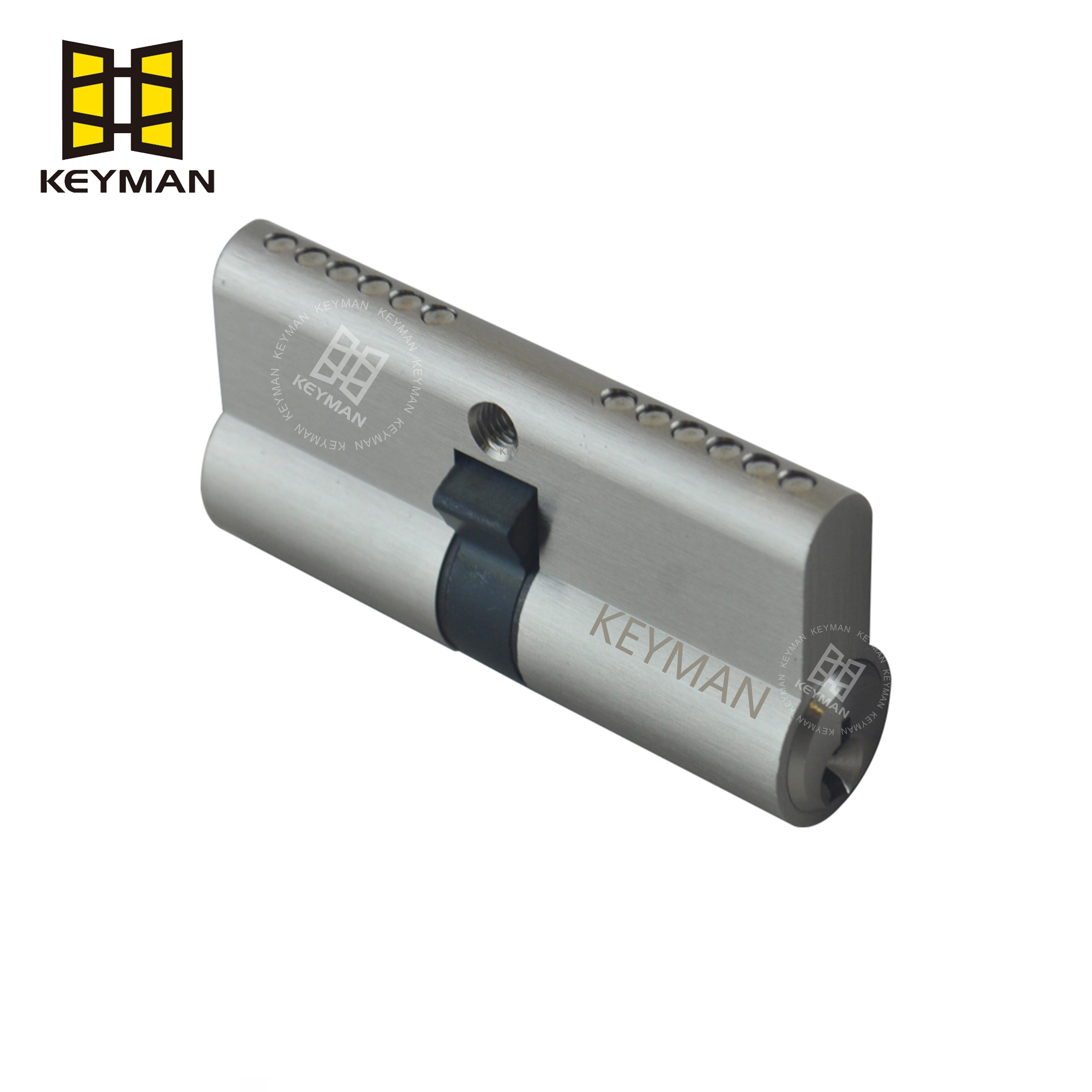

Euro High Security Double Door Lock Cylinder with Brass Keys
KEYMAN Euro Double Cylinder is a high-security locking mechanism designed for European-standard doors and windows. Featuring key operation on both sides, this cylinder provides enhanced protection against unauthorized entry .
Key Features
Dual-Side Key Operation
Requires keys for both interior and exterior access
Elimulates interior thumb-turn vulnerability
Standardized Dimensions
Compatible with Euro-profile lock systems (30/30, 35/35, 40/40mm)
Fits most European window and door hardware
Security Enhancements
Anti-drill, anti-pick, and anti-bump protection (Grade 1-3 per EN 1303)
Reinforced brass or steel construction
Versatile Applications
External doors with glass panels
High-security commercial entrances
Buildings requiring fire safety compliance
Installation Notes • Requires professional measurement of door thickness • Not recommended for emergency exit doors (check local fire codes) • For optimal performance, pair with multipoint locking systems
Advantages Over Single Cylinder ✓ Superior burglary resistance ✓ Prevents lock manipulation through broken glass ✗ Requires key for all operations (potential emergency egress concern)
Available in keyed-alike/master key systems for commercial applications.

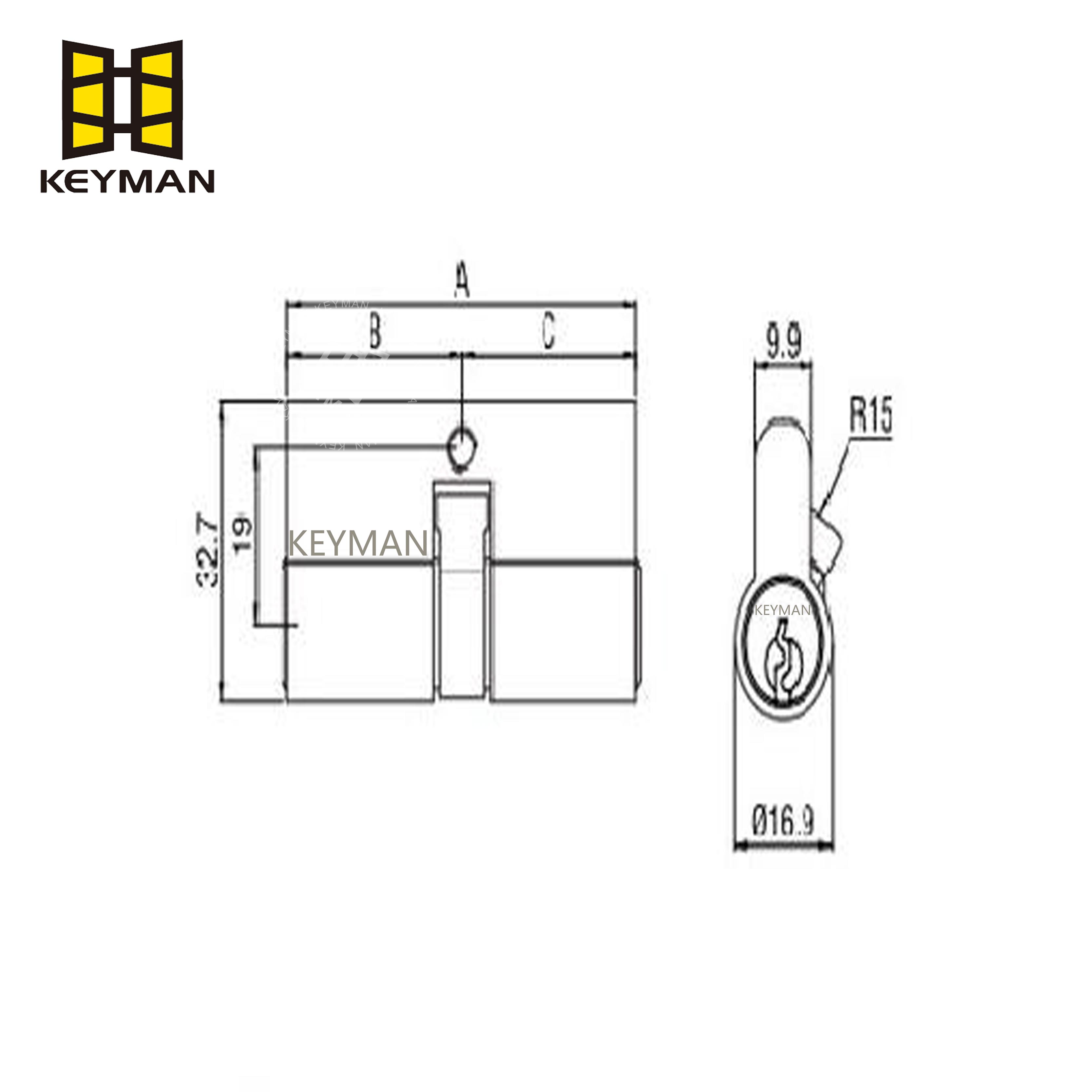

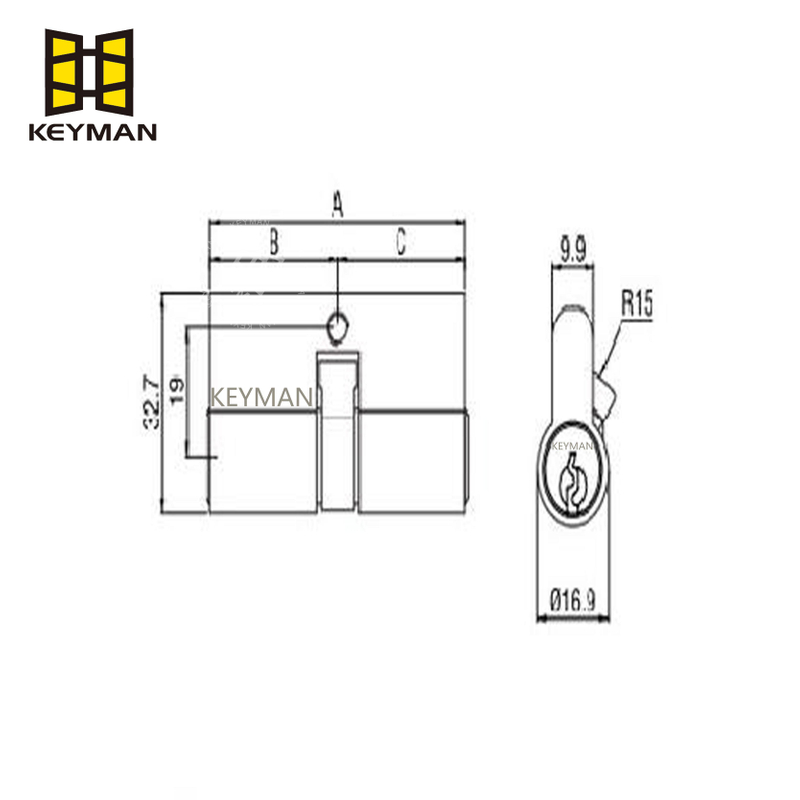

Dimension
H
A
B
G
Remark
90
40
40
10
6pin 7pin
80
35
35
10
6pin
75
32.5
32.5
10
6pin
70
30
30
10
6pin
65
27.5
27.5
10
6pin
62
26
26
10
5pin
60
25
25
10
5pin
50
20
20
10
4pin
45
17.5
17.5
10
3pin
45
30
5
10
5pin
40
25
5
10
5pin
Speciification
Spec.
Description
Item.
Euro Double Cylinder
Material
Quality Solid Brass
Keys
3 Brass Key
Key Management Function
Master Key, Grand Master Key, Construction Key, Keyed Alike
Pins
6pins standard (70mm length as standard)
Finish
Satin Nickle, Polish Brass, Chrome Plate, Matt Black, Pearl Nickle
Accessories
1pc fastening screw
Suitable for
Wooden Door, Metal Door, Interior Door, Outer Door, Swing Door
