M705 Classroom

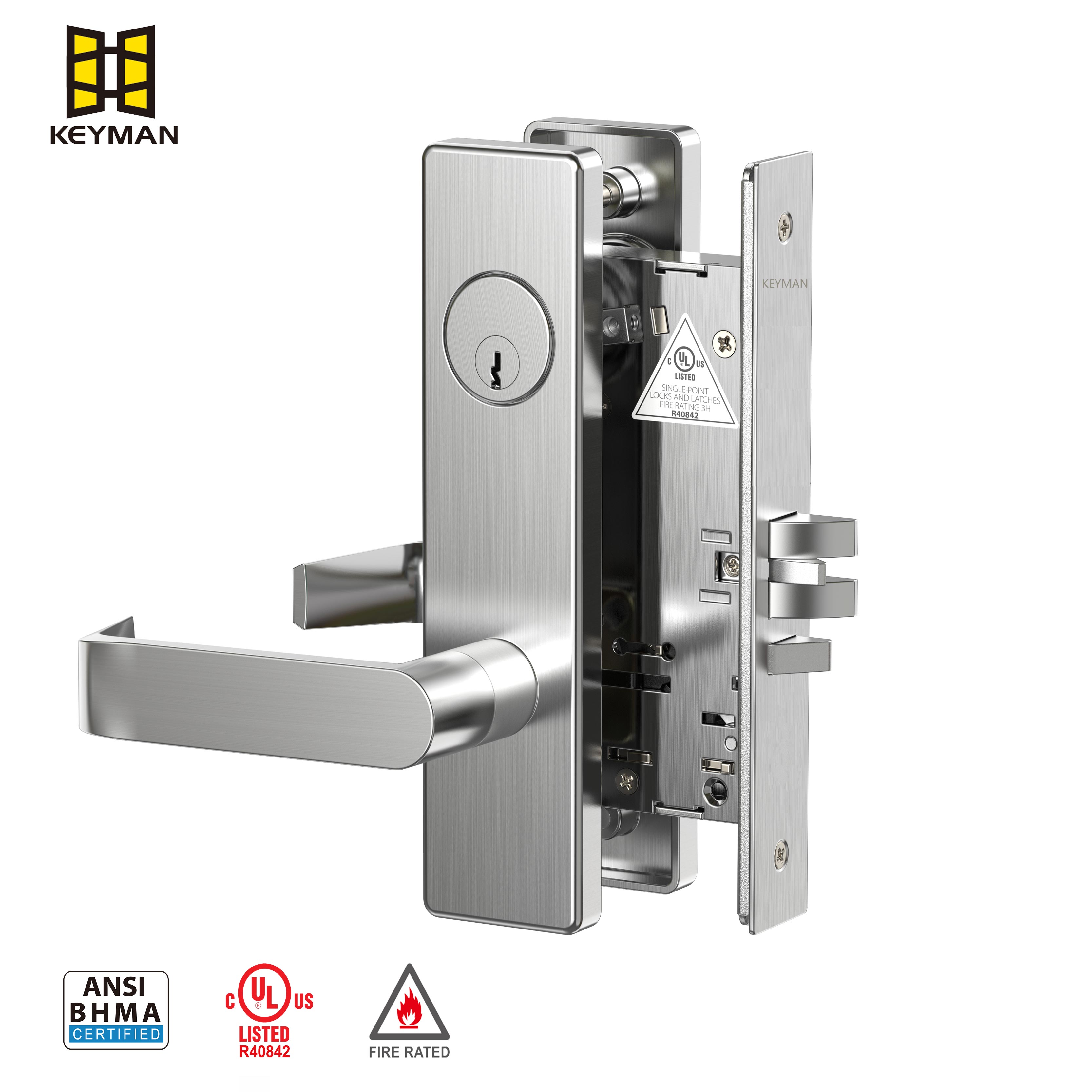

American Ansi/bhma A156.13 Ul Listed Classroom Function Mortise Lock M705
KEYMAN ANSI Mortise Lock is a type of mortise lock designed to meet ANSI , BHMA and UL standards for durability, security, and performance. Mortise locks are commonly used in commercial and high-security residential applications due to their robustness and reliability.
ANSI Mortise Lock Escutcheon Type refers to the trim or decorative plate that surrounds the keyhole and lever/knob on a mortise lock. Escutcheons enhance aesthetics, protect the door from wear, and sometimes provide additional security features.
Commercial buildings (offices, hospitals, schools)
High-end residential properties
Hotels & hospitality (with master key systems)
M705 Function:
Latchbolt by lever either side, unless outside lever is locked by key outside. Latchbolt by key when outside leverlocked. Auxiliary latch leveralways free. deadlocks latchbolt. Inside lever always free.
Outside lever remains locked unless unlocked by key.
Speciification
| Spec. | Description |
| Item. | ANSI UL Mortise Lock Escutcheon Type |
| Fuction / Ansi No. | F05 Classroom |
| Cylinder | FC735A 1-3/8" (32mm) |
| Structure | Latchbolt, Auxiliary Latch(door ajar), Switch. |
| Door Thickness | 1-3/4" (45mm) |
| Lockset Surface | SUS304 |
| Finish (Color) | 630 , 32D, Satin Stainless |
| Fire Rated | Yes |
| Certificate | ANSI Grade 1, Mortise Lock / UL |
| Standard | ANSI/BHMA A156.13-2017 for MORTISE LOCKS & LATCHES |
