M722 Privacy

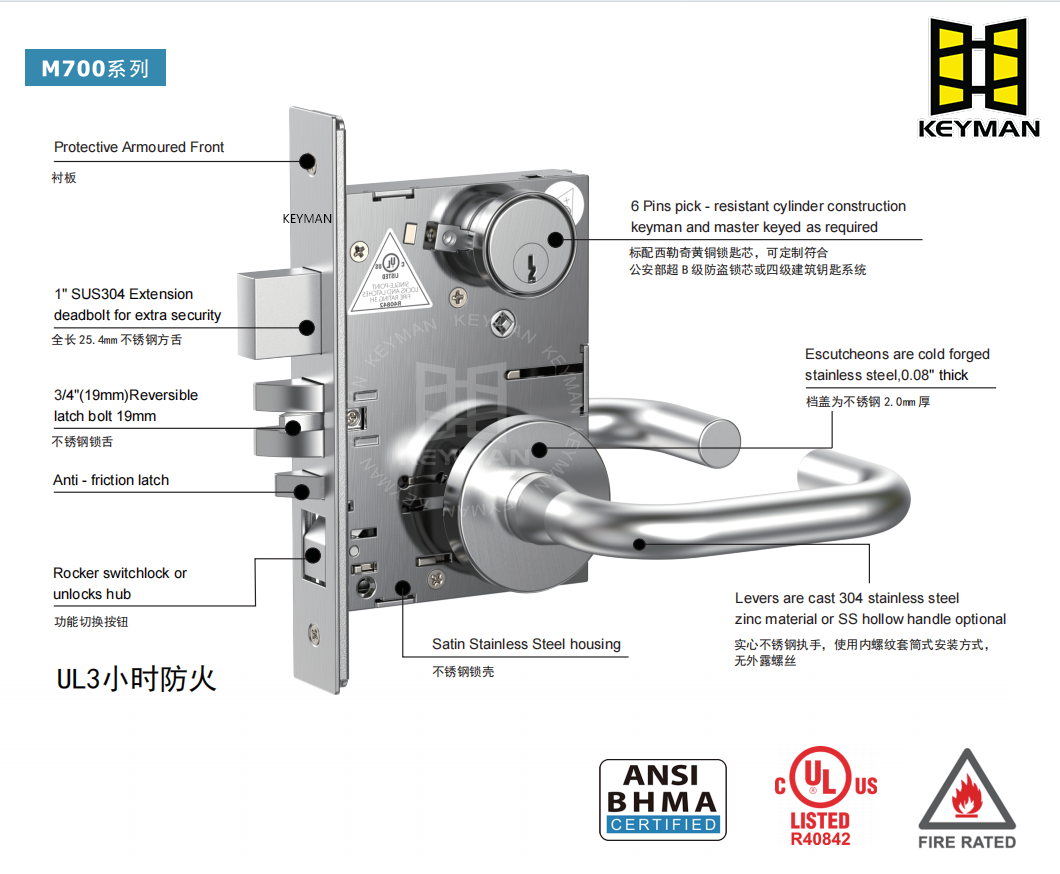

Fire Rated Deadbolt Mortise Lock with Indicator M722
ANSI Grade I American Heavy Duty Entrance Mortise Lock M701As a leading manufacturer of door hardware, Keyman provides reliable and durable locking solutions for enhanced security worldwide.
Our high quality ANSI mortise locks are both ANSI grade 1 and UL Fire Rated 3 hour certified, and widely use in commercial projects. The American mortise lock is made of stainless steel and has various functions .
Speciification
| Spec. | Description |
| Item. | ANSI UL Mortise Lock Sectional Type |
| Fuction / Ansi No. | F22 Privacy no deadbolt |
| Cylinder | / no cylinder but has thumbturn and indicator |
| Door Thickness | 1-3/4" (45mm) |
| Lockset Surface | SUS304 |
| Finish (Color) | 630 , 32D, Satin Stainless |
| Fire Rated | Yes |
| Certificate | ANSI Grade 1, Mortise Lock / UL |
| Standard | ANSI/BHMA A156.13-2017 for MORTISE LOCKS & LATCHES |
Locking Mechanism:
Inside: Turn the thumb turn to lock the door.
Unlocking from Inside: Rotate the lever/handle to retract the latch and open the door (even when locked for privacy).
Emergency Entry from Outside:
No key cylinder (keyless design).
Uses an emergency access tool (e.g., a small pin or flathead screwdriver) inserted into the external release hole to disengage the lock.
Features:
True privacy lock – No external keyway, only internal thumb-turn.
Meets ANSI Grade 1 standard.

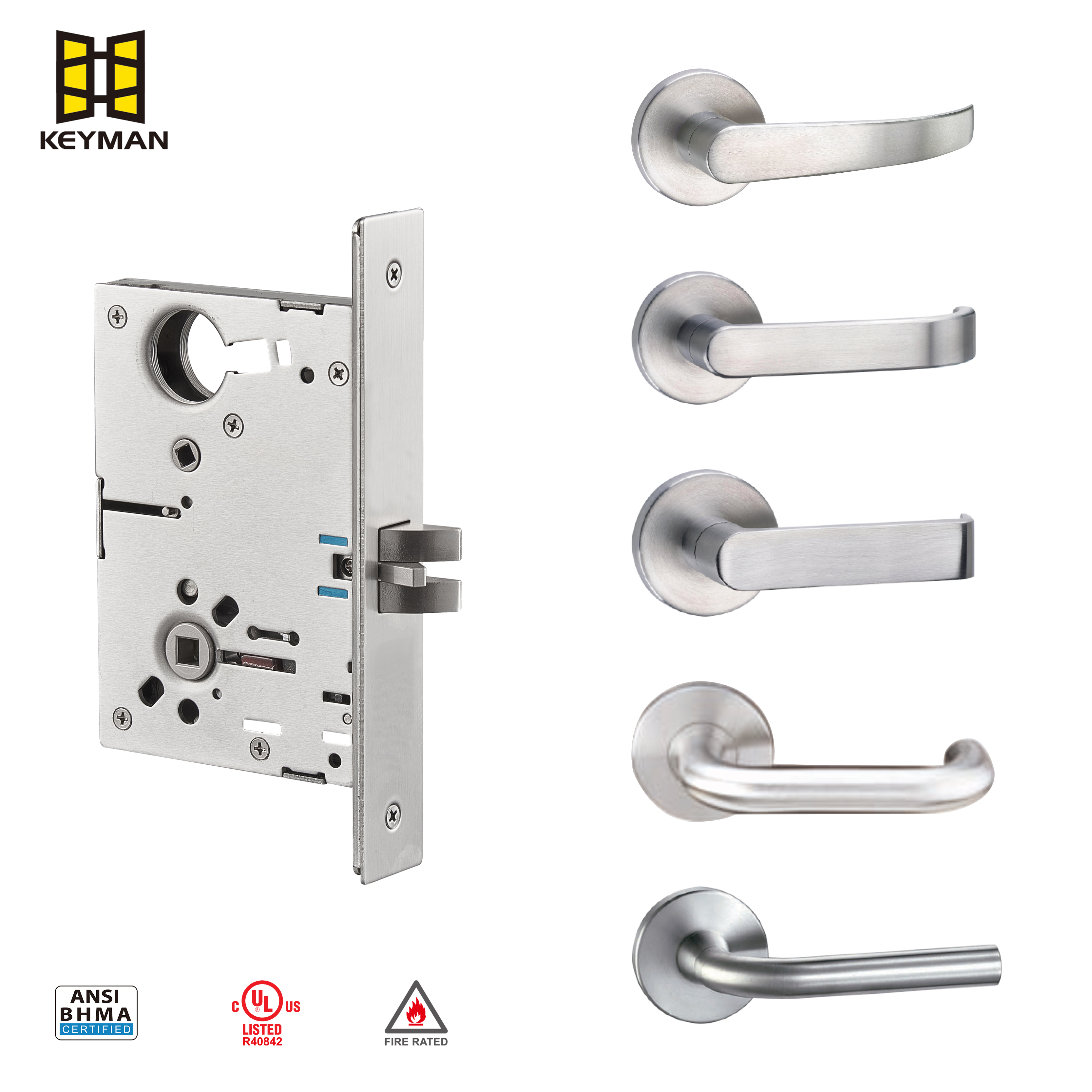

Compatible with lever or knob handles.
Applications: Bathrooms, bedrooms, or other privacy-focused interiors.
