M704 Office

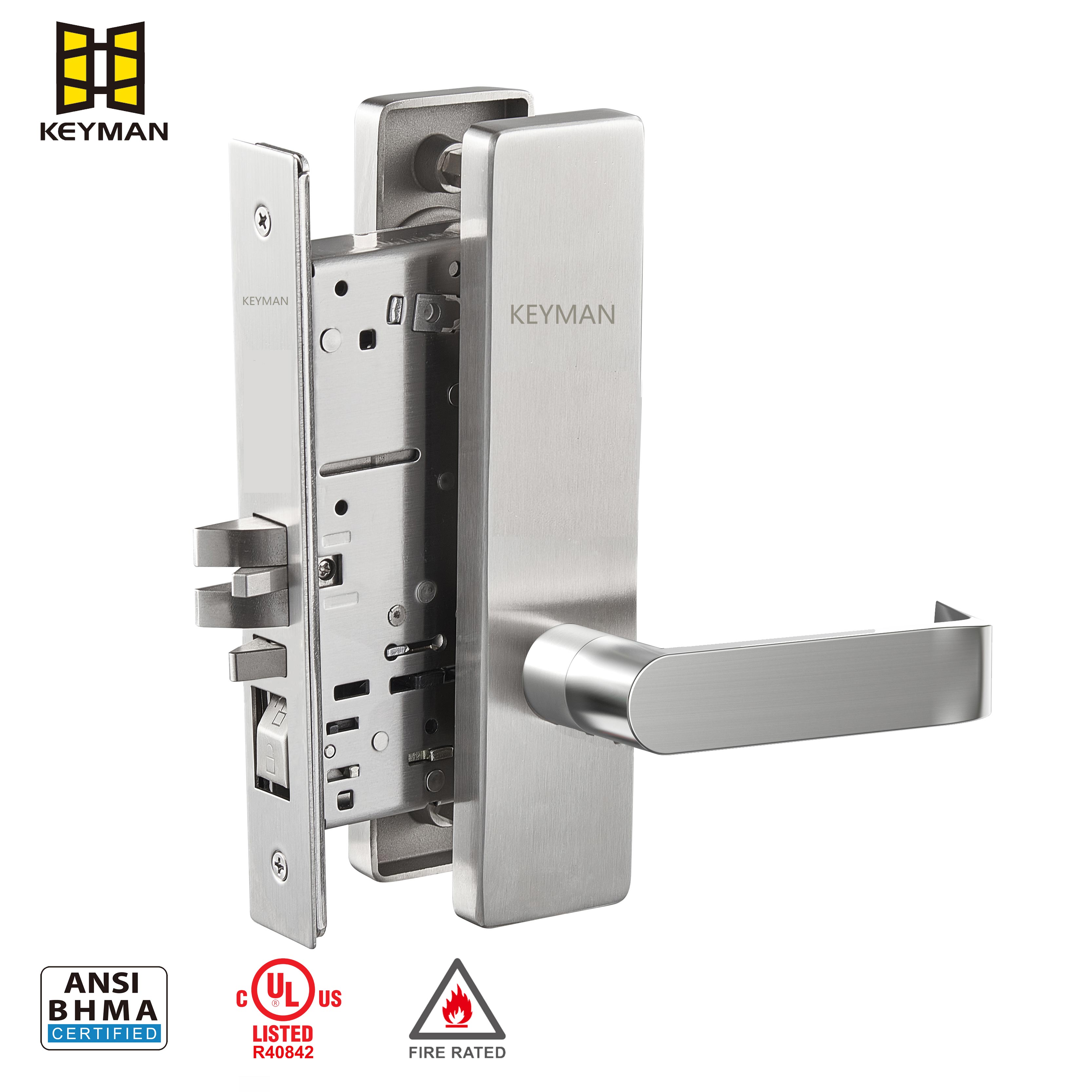

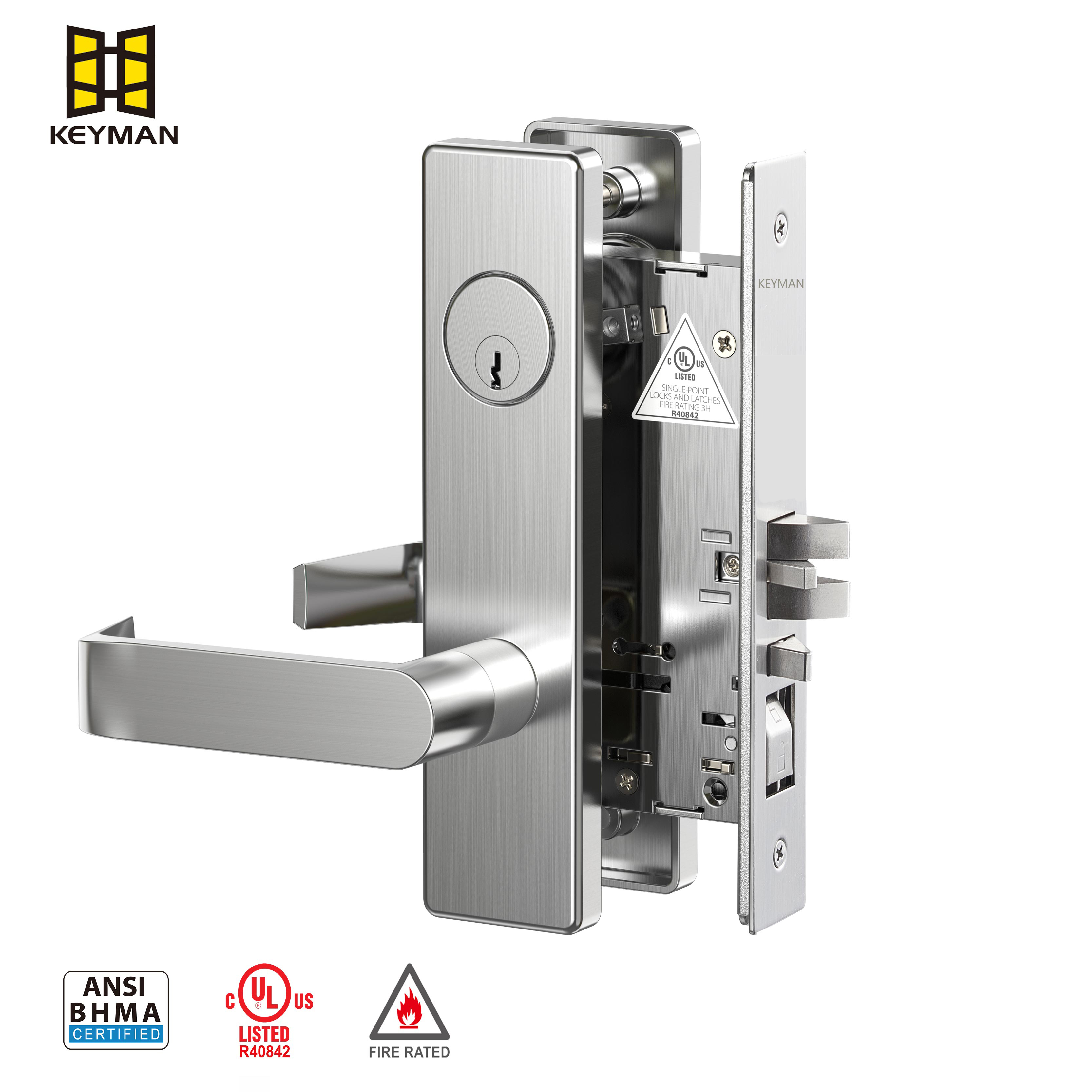

UL Fire Rated 3H Office Security Door Mortise Patch Mortise Lock M704
KEYMAN ANSI Mortise Lock is a type of mortise lock designed to meet ANSI , BHMA and UL standards for durability, security, and performance. Mortise locks are commonly used in commercial and high-security residential applications due to their robustness and reliability.
ANSI Mortise Lock Escutcheon Type refers to the trim or decorative plate that surrounds the keyhole and lever/knob on a mortise lock. Escutcheons enhance aesthetics, protect the door from wear, and sometimes provide additional security features.
Commercial buildings (offices, hospitals, schools)
High-end residential properties
Hotels & hospitality (with master key systems)
M704 Function:
Latchbolt by key when ouside lever locked by switch. Latchbolt by lever either side, unless outside lever is locked by switch. Auxiliary latch deadlocks latchbolt. Inside lever/ knob always free.
Speciification
| Spec. | Description |
| Item. | ANSI UL Mortise Lock Escutcheon Type |
| Fuction / Ansi No. | F04 Office |
| Cylinder | FC735A 1-3/8" (32mm) |
| Structure | Latchbolt, Auxiliary Latch(door ajar), Switch. |
| Door Thickness | 1-3/4" (45mm) |
| Lockset Surface | SUS304 |
| Finish (Color) | 630 , 32D, Satin Stainless |
| Fire Rated | Yes |
| Certificate | ANSI Grade 1, Mortise Lock / UL |
| Standard | ANSI/BHMA A156.13-2017 for MORTISE LOCKS & LATCHES |
