A mortise lock that won't turn, sticks, or fails to secure your door properly can compromise your home's security and leave you frustrated. Unlike standard cylindrical locks, mortise locks are more complex mechanisms that require a different approach when replacement becomes necessary.
This comprehensive guide walks you through the entire process of replacing a mortise lock, from identifying when replacement is needed to completing the installation. Whether you're dealing with an old, worn-out lock or upgrading to a more secure model, you'll have the knowledge and confidence to tackle this project yourself.
By the end of this guide, you'll understand the tools required, the step-by-step replacement process, and common troubleshooting tips to ensure your new mortise lock functions perfectly.
A mortise lock differs significantly from standard door locks. Instead of drilling two separate holes like cylindrical locks, mortise locks require a rectangular pocket (called a mortise) cut into the edge of the door. This design houses the entire lock body, making it more secure but also more complex to replace.

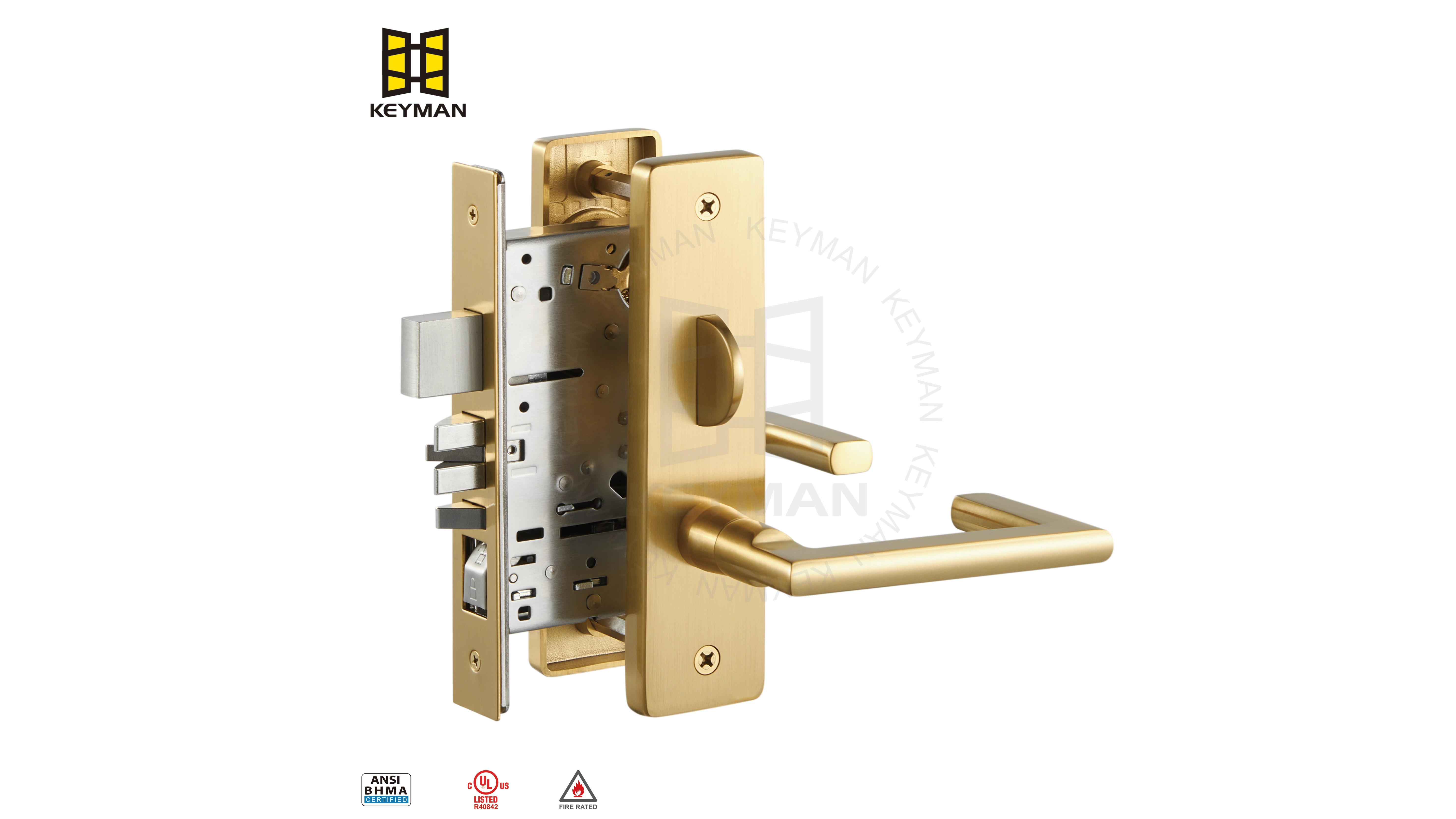

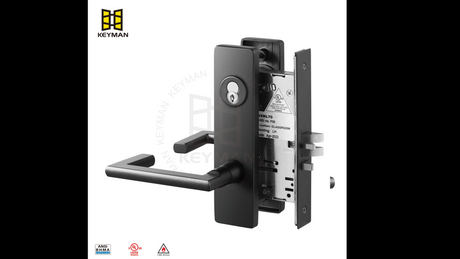

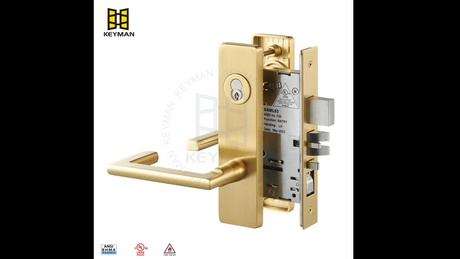

Mortise locks consist of several key components: the lock body that sits inside the door, the cylinder that accepts your key, the thumbturn for interior locking, and various plates and trim pieces. Understanding these parts helps you approach the replacement process methodically.
These locks are commonly found in older homes, commercial buildings, and high-security residential applications. Their robust construction and multiple locking points make them preferred choices for entrance doors and other high-traffic areas.
Several indicators suggest your mortise lock requires replacement rather than simple repair. Keys that stick, require excessive force to turn, or fail to engage the locking mechanism properly signal internal wear that replacement can address.
Physical damage to the lock body, cylinder, or trim components often necessitates complete replacement. Corrosion, broken springs, or worn tumblers inside the lock body typically prove more expensive to repair than replace.
Security concerns also drive replacement decisions. Older mortise locks may lack modern security features, or you might want to upgrade to keyless entry systems while maintaining the mortise lock format.
Successful mortise lock replacement requires specific tools and careful preparation. Gather a screwdriver set with both Phillips and flathead options, a drill with various bit sizes, a chisel set for wood work, and a measuring tape for precise alignment.
You'll also need the replacement mortise lock assembly, which should match your door's backset measurement and mortise dimensions. Wood filler, sandpaper, and matching wood stain help address any cosmetic issues during installation.
Safety equipment including safety glasses and work gloves protect you during the removal and installation process. Having a flashlight or headlamp available helps you see clearly inside the mortise cavity.
Begin removal by opening the door and locating all visible screws on both the interior and exterior trim plates. Most mortise locks secure with screws accessible from the interior side, though some models require removal of both trim plates.
Remove the interior trim plate first, which typically exposes the thumbturn mechanism and additional screws securing the lock body. Carefully disconnect any connecting rods or cables between the thumbturn and the lock mechanism.
Next, remove the exterior trim and cylinder. Some cylinders thread into the lock body, while others secure with set screws accessible from the edge of the door. Take photos during disassembly to reference during installation of your new lock.
The lock body itself usually slides out of the mortise after removing a few screws from the edge plate. If the lock body resists removal, check for additional securing screws or clips that may be holding it in place.
With the old lock removed, thoroughly clean the mortise cavity of debris, old lubricant, and any broken components. This cleaning reveals the true condition of the mortise and helps identify any modifications needed for the new lock.
Compare your new mortise lock dimensions with the existing mortise cavity. Most replacements fit existing mortises, but some adjustment may be necessary. Use wood filler to reduce oversized areas, or carefully enlarge the mortise if the new lock requires additional space.
Test-fit the new lock body in the mortise before final installation. The lock should sit flush with the door edge and align properly with the door frame's strike plate location. Mark any areas requiring adjustment and make necessary modifications.
Start installation by sliding the new lock body into the mortise cavity. Align the lock body so the edge plate sits flush with the door edge and secure it with the provided screws. Don't fully tighten these screws yet, as you may need to make minor adjustments.
Install the cylinder from the exterior side, ensuring it properly engages with the lock body mechanism. Thread or secure the cylinder according to the manufacturer's instructions, then test its operation by turning it with your key.
Attach the interior thumbturn mechanism, connecting any rods or cables to the lock body as shown in your reference photos. The thumbturn should operate smoothly and fully engage the locking mechanism when turned.
Finally, install both interior and exterior trim plates, ensuring all components align properly and operate smoothly. Test the complete lock operation from both sides before fully tightening all screws.
Proper testing ensures your new mortise lock functions correctly and securely. With the door open, test the lock mechanism using both the key and thumbturn. The lock should engage and disengage smoothly without binding or excessive force.
Close the door and test the lock's alignment with the strike plate. The latch should fully extend into the strike plate opening, and the deadbolt (if equipped) should align properly with its corresponding opening.
Make any necessary adjustments to the strike plate position or door alignment to ensure smooth operation. Minor adjustments to the lock body position may also be required to achieve perfect alignment.
Even with careful installation, you might encounter common issues that simple adjustments can resolve. Keys that bind or turn hard often indicate misalignment between the cylinder and lock body. Slightly loosening and repositioning the lock body usually corrects this issue.
Latches that don't fully retract may result from incorrect trim plate installation or internal component misalignment. Double-check that all connecting rods and cables are properly attached and not binding against other components.
If the lock doesn't engage properly with the strike plate, the issue typically lies in door or frame alignment rather than the lock itself. Adjusting the strike plate position or door hinges often resolves these problems.
Regular maintenance extends your new mortise lock's lifespan and ensures continued smooth operation. Apply a small amount of graphite lubricant to the keyway every few months, and use a light machine oil on moving parts annually.
Keep the lock clean by wiping down trim plates and removing dirt or debris from the keyway. Avoid using harsh chemicals or excessive moisture, which can damage internal components or finishes.
Schedule periodic operation tests to catch potential issues early. If you notice changes in operation or security concerns, address them promptly to prevent more serious problems.
Successfully replacing a mortise lock enhances your home's security while providing the satisfaction of completing a valuable DIY project. This investment in your property's security and your own skills pays dividends in both peace of mind and property value.
Take time to properly maintain your new mortise lock, and it will provide years of reliable service. Remember that quality installation today prevents security vulnerabilities and costly repairs tomorrow.
If you encounter issues beyond your comfort level during installation, don't hesitate to consult a professional locksmith. Sometimes professional expertise ensures both proper installation and warranty protection for your investment.
