If you live in an older home, you might have encountered a mortise lock. These locks are known for their durability and classic appearance, often found on solid, vintage doors. However, you might be considering an upgrade for a more modern look, enhanced features like smart-key technology, or simply because your old lock is failing. This leads to an important question: can you change a mortise lock to a regular lock?
The short answer is yes, but it’s not a simple one-for-one swap. The process involves more than just unscrewing the old lock and putting a new one in its place. Because mortise locks are installed differently from modern cylindrical or tubular locks, the conversion requires some carpentry work to modify the door.
This guide will walk you through everything you need to know about replacing a mortise lock. We’ll cover the differences between lock types, the steps involved in the conversion, and what to consider before you start. By the end, you'll be able to decide if this is a DIY project you want to tackle or if it’s better left to a professional.

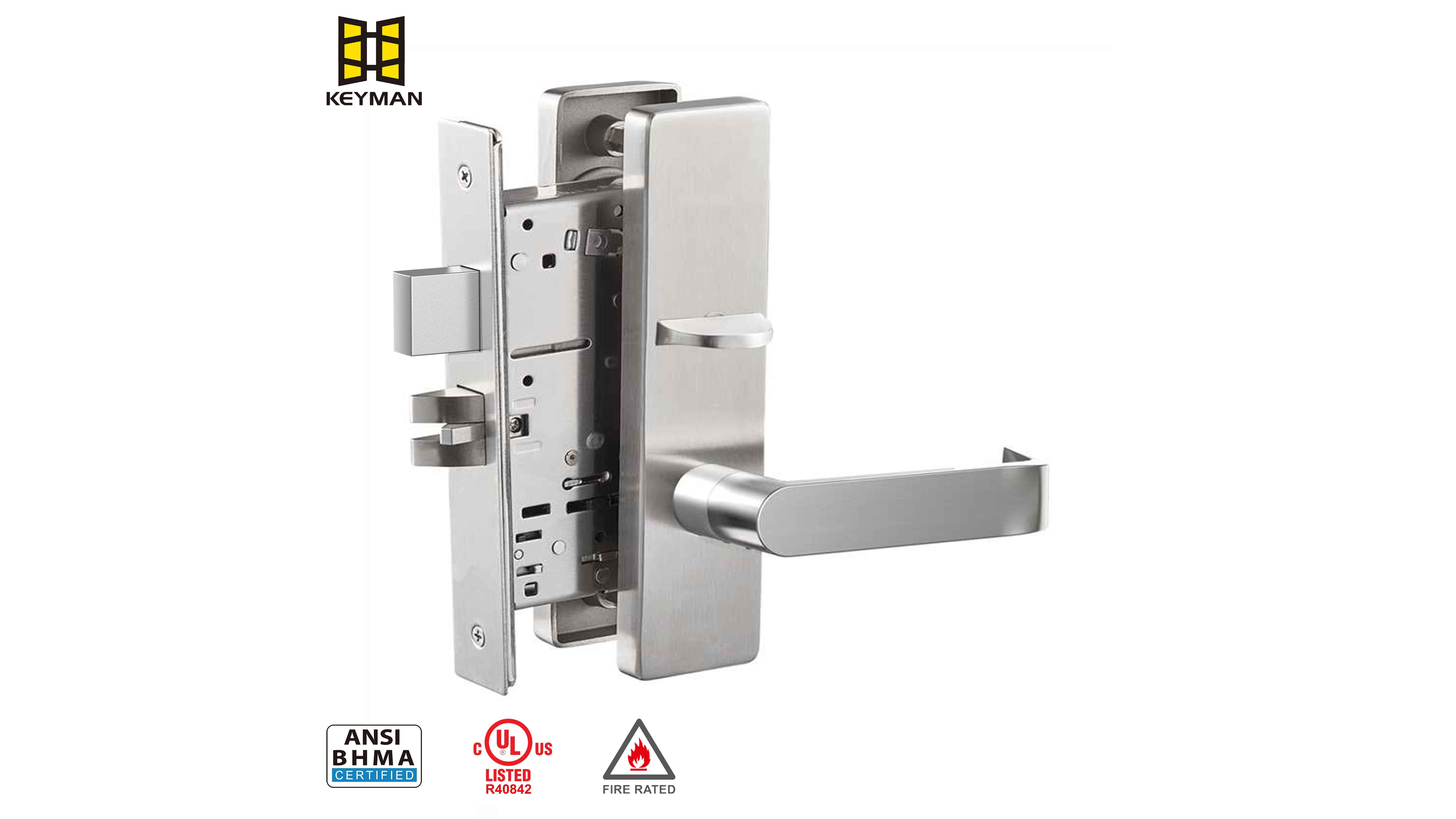

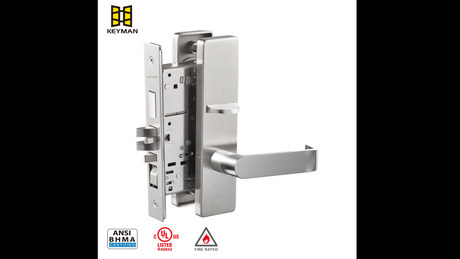

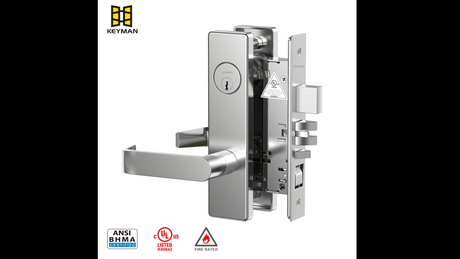

Before you can replace one, it helps to understand what makes a mortise lock unique. A mortise lock requires a large, rectangular pocket—the mortise—to be chiseled into the edge of a door. The lock body, which contains the boltwork and latching mechanism, sits inside this pocket.
You can typically identify a mortise lock by its characteristics:
· A tall, rectangular faceplate on the edge of the door.
· Separate components for the lockset and handle, often with a keyhole below a doorknob or lever.
· A sturdy, integrated deadbolt and latch system within a single cartridge.
These locks were the standard for many years, especially in homes built before the 1950s. They are prized for their strength and longevity. However, their complex installation and the rise of more easily installed lock types have made them less common in modern residential construction.
"Regular" locks today are usually cylindrical or tubular locks. Understanding how they differ from mortise locks is crucial for planning a replacement.
Cylindrical locks are the most common type found in modern homes. Their installation involves drilling two holes in the door: a large one through the face of the door for the lock chassis and a smaller one through the edge for the latch bolt.
· Installation: Much simpler than a mortise lock. Requires standard hole saws.
· Mechanism: The locking mechanism is contained within the knob or lever.
· Security: Security levels vary, but many high-quality options are available.
Tubular locks are similar to cylindrical locks but generally have a smaller latch mechanism. They are often used for interior doors, like closets or bathrooms, where high security isn't the primary concern.
The main takeaway is that cylindrical and tubular locks require a different door preparation than a mortise lock. They use circular holes, whereas a mortise lock uses a deep rectangular pocket. This fundamental difference is why you can’t simply swap one for the other.
While mortise locks are robust, there are several valid reasons you might want to switch to a modern cylindrical lock:
· Modern Features: Many homeowners want to upgrade to smart locks, keypads, or locks that can be rekeyed easily. Most of these modern options are designed for cylindrical lock preparations.
· Aesthetics: You may prefer the look of modern knobs or levers, which come in a vast array of styles and finishes that might not be available for your older mortise lock.
· Cost and Availability: Finding replacement parts or a locksmith who specializes in repairing old mortise locks can be difficult and expensive. A brand-new cylindrical lock is often cheaper and more accessible.
· Functionality: An old mortise lock might be failing, with a sticking latch or a key that’s hard to turn. Replacing it can improve the everyday function of your door.
Replacing a mortise lock is a multi-step process that requires some basic carpentry skills and the right tools. Here’s a breakdown of the steps involved.
Before you begin, make sure you have everything you need. This will save you from making extra trips to the hardware store mid-project.
Tools:
· Screwdriver set
· Drill with hole saw bits (typically 2 1/8 inch for the lockset and 1 inch for the latch)
· Wood chisel set
· Hammer or mallet
· Measuring tape and pencil
· Clamps
· Utility knife
· Safety glasses
Materials:
· Your new cylindrical lockset
· Wood filler or a specialized door conversion kit
· Sandpaper (medium and fine grit)
· Primer and paint that matches your door
First, you need to carefully uninstall the existing lock.
1.Remove Handles and Trim: Unscrew the doorknobs or levers on both sides of the door. There may be a set screw on the side of the knob base.
2.Unscrew the Faceplate: On the edge of the door, remove the screws holding the mortise lock’s faceplate in place.
3.Take Out the Lock Body: Gently slide the entire lock body out from the mortise pocket in the edge of the door. It might be snug, so you may need to wiggle it or use a flathead screwdriver to gently pry it out.
4.Remove the Strike Plate: On the door frame, unscrew and remove the old strike plate.
This is the most critical part of the conversion. You need to fill the old mortise pocket and holes to create a solid surface for drilling new ones.
1.Fill the Mortise Pocket: The large rectangular void on the door's edge must be filled. You can use a high-quality, paintable wood filler, applying it in layers and allowing each to dry. For a stronger, more durable solution, it's better to cut a piece of wood to fit snugly into the pocket. Glue and clamp it in place, ensuring it sits flush with the door's edge.
2.Fill Handle and Keyholes: Use wood filler to patch the old holes on the face of the door where the handles and keyhole were.
3.Sand Everything Smooth: Once the wood or filler is completely dry, sand the patched areas until they are perfectly smooth and level with the rest of the door surface.
Now you'll drill the two new holes required for your standard lock.
1.Mark the Holes: Your new lockset will come with a template. Use it to mark the correct positions for the main lock hole (on the face of the door) and the latch hole (on the edge). The standard backset (distance from the door edge to the center of the lock) is either 2 3/8 inches or 2 3/4 inches.
2.Drill the Main Hole: Using the appropriate-sized hole saw (usually 2 1/8 inches), drill through the face of the door at your marked spot. Drill halfway from one side, then finish from the other to prevent the wood from splintering.
3.Drill the Latch Hole: Use the smaller hole saw (usually 1 inch) to drill into the edge of the door until it meets the main hole.
With the door prep complete, you can now install your new lock.
1.Install the Latch: Slide the new latch bolt into the edge hole and trace its faceplate. Chisel a shallow recess so the plate sits flush with the door edge, then screw it in place.
2.Install the Lockset: Insert the exterior and interior halves of the new lockset into the main hole, ensuring they connect correctly through the latch mechanism. Secure them with the provided screws.
3.Install the New Strike Plate: Close the door and mark where the latch bolt hits the door frame. Chisel out a recess for the new strike plate and screw it into the frame.
Finally, touch up your work. Prime and paint the patched areas to match the rest of your door. Once the paint is dry, your conversion is complete.
Changing a mortise lock to a regular lock is a manageable project for a confident DIYer with the right tools and patience. However, if you’re not comfortable with woodworking or don't own the necessary tools, it might be best to call a professional locksmith or carpenter.
A professional will have the expertise to ensure the new lock is installed securely and that the finished result looks clean and seamless. The cost of hiring a pro can be a worthwhile investment for the peace of mind that comes with a secure and properly functioning door.
Upgrading from a classic mortise lock to a modern cylindrical lock is an excellent way to improve your home's functionality and security. While it's more involved than a standard lock replacement, it's an achievable project that can make a big difference. By carefully following the steps and preparing your door correctly, you can successfully bridge the gap between vintage hardware and contemporary convenience.
