Description

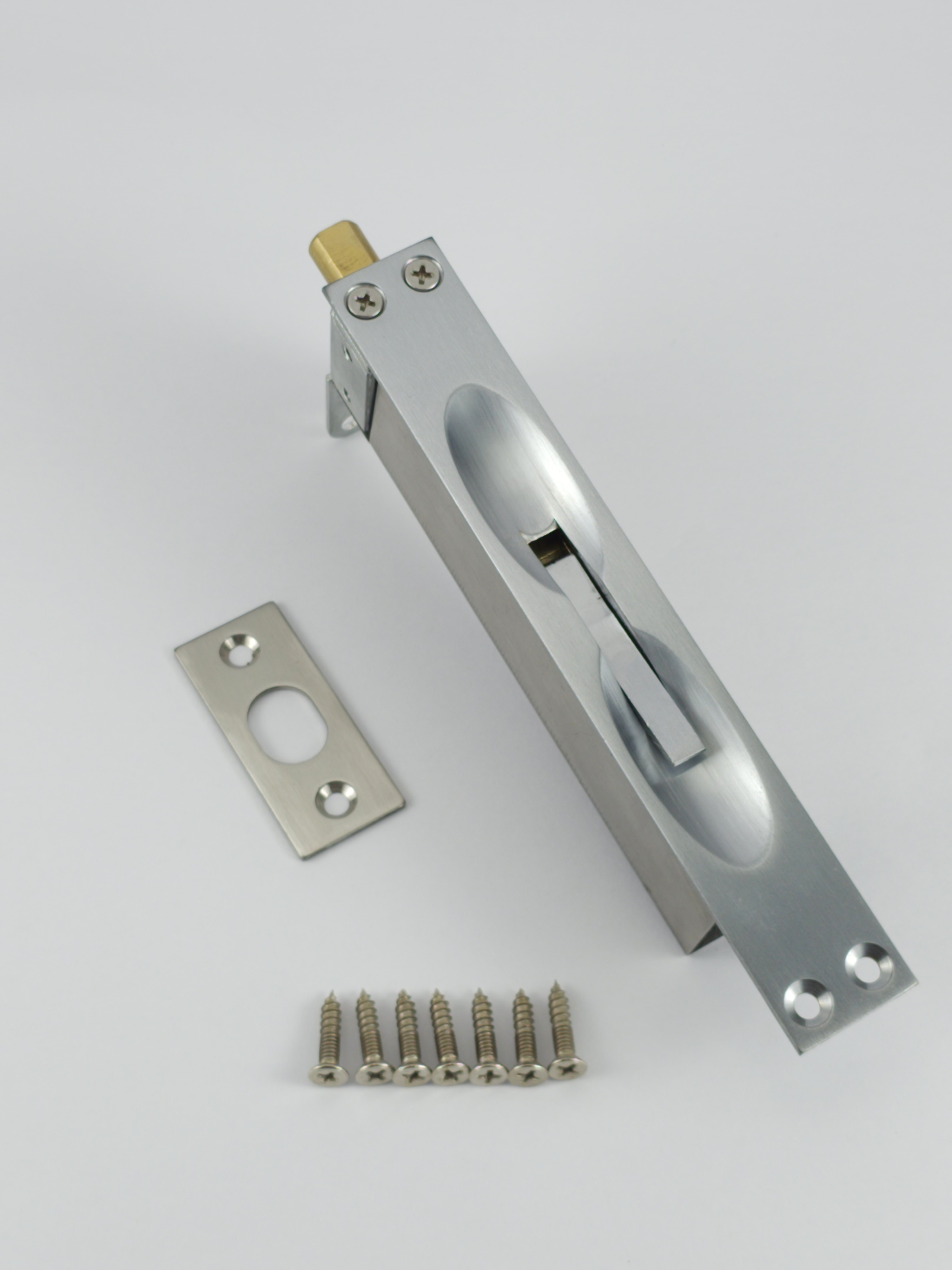

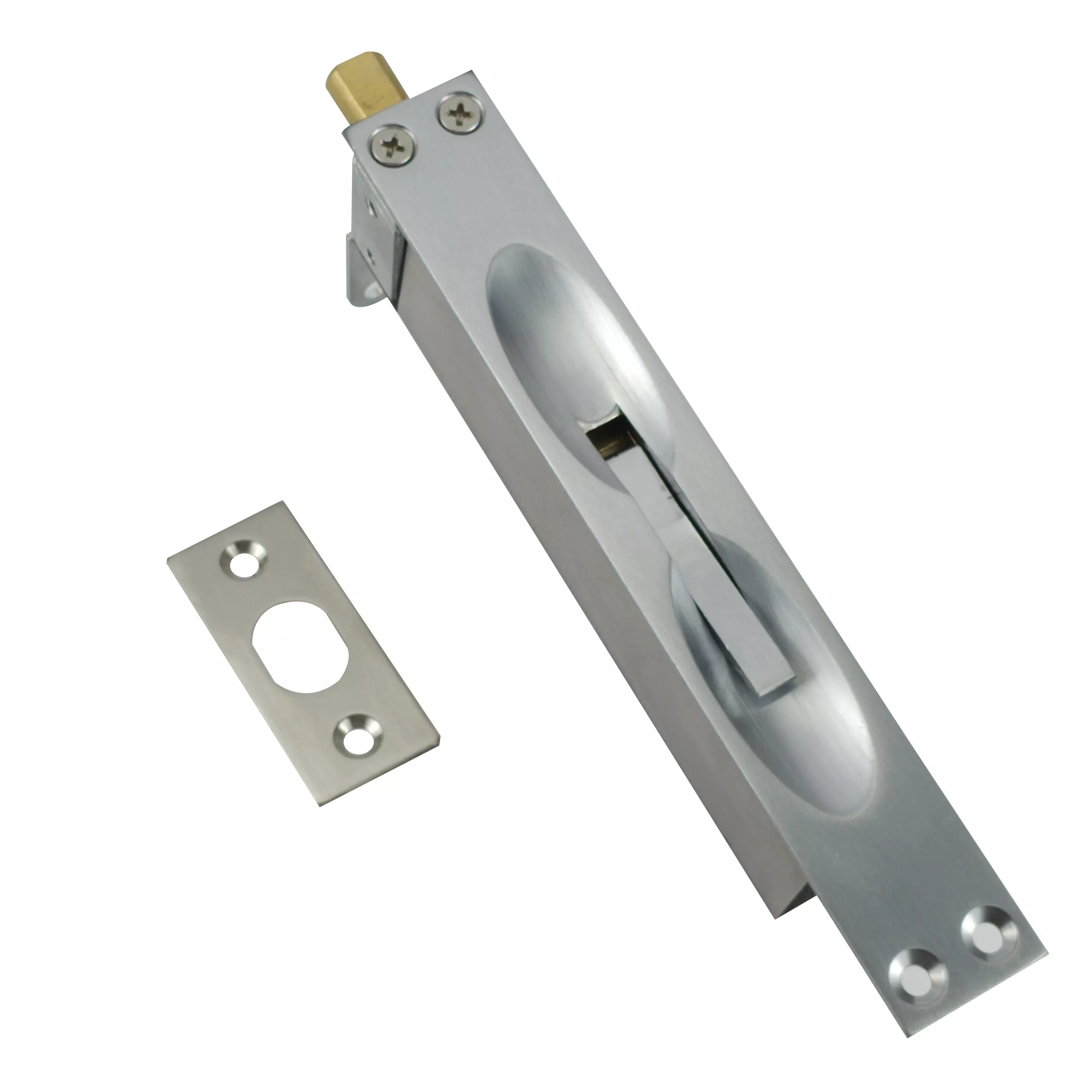

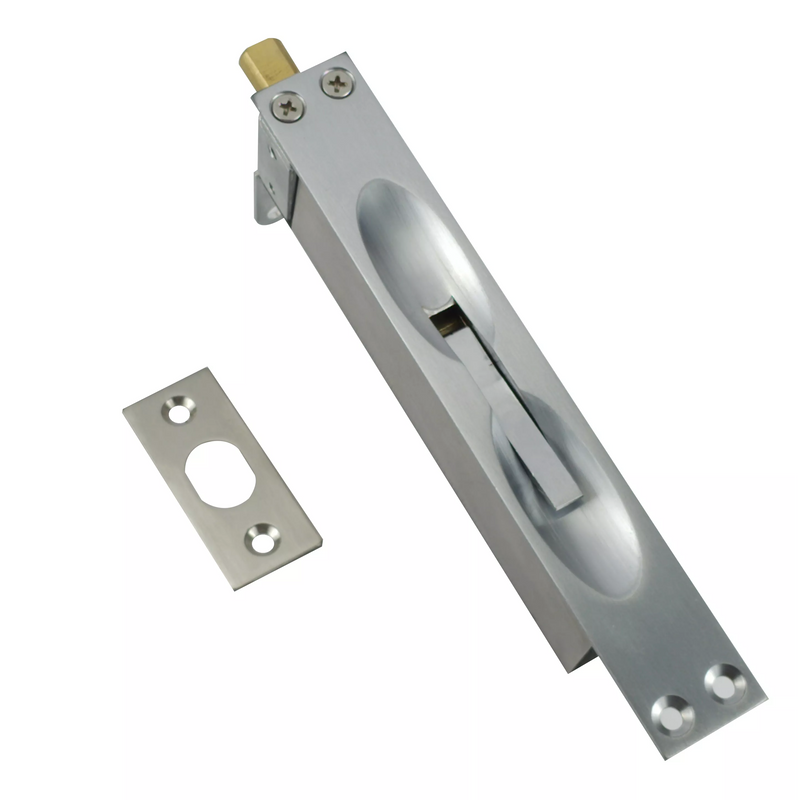

This manual flush bolt features a spring-loaded snap-action lever: moving it to the "up" position retracts the bolt, while moving it to the "down" position projects the bolt into the head frame.
Features
· Non-handed (suitable for left/right-hand doors).
· Easy-to-grip lever action and simple installation.
· Plunger with a milled side surface that fits a matching guide to prevent bolt rotation and unscrewing.
Product Information
Features | ·Ergonomic finger grip lever for easy operation and installation. ·Plunger with milled side surface engaging a matching guide to prevent rotation and loosening |
|---|
Face Size | 6-3/4”x1”(171mmx25.4mm) |
|---|
Bolt Throw | 5/8”(16mm) |
|---|
Bolt Diameter | 1/2”(12.7mm) |
|---|
Material | Chromium-Plated Brass |
|---|
Dimensions | All lengths measured from center of bolt mechanism with
retracted bolt head |
|---|
Max.Door Size | 48”(1219mm)×96”(2438mm),Wood covered composite |
|---|
Frequently Asked Questions (FAQ)
Q1: How does the operating lever work? Does it lock automatically?
A:This flush bolt uses a spring-loaded snap-action lever. It is a manual device without automatic locking. You manually move the lever up to retract the bolt (unlock) and push it down to project the bolt into the frame (lock).
Q2: Can this flush bolt be used on both left-hand and right-hand doors?
A:Yes. The product is designed as "Non-handed,"meaning it is symmetrical and suitable for installation on either the left or right side of the door, regardless of the door swing direction.
Q3: What is the purpose of the "milled surface" on the plunger?
A: The plunger features a flat, milled surface on its side. This surface fits into a matching guide groove during installation. Its function is to prevent the bolt from rotating over time, which stops the bolt from unscrewing itself and ensures long-term stability.
Q4: What type of door is this product suitable for?
A: Based on the maximum size specifications, this flush bolt is ideal for heavy-duty wooden or wood-covered composite doors, supporting a maximum door dimension of up to 48" x 96" (1219mm x 2438mm).
Q5: What material is the flush bolt made of?
A: The main body and components are made of Brass with a Chromium-Plated finish, offering good corrosion resistance and a bright, polished appearance.
