X801-B Aluminum Mortise Vertical Exit Device for High-Risk Facilities

Share to:

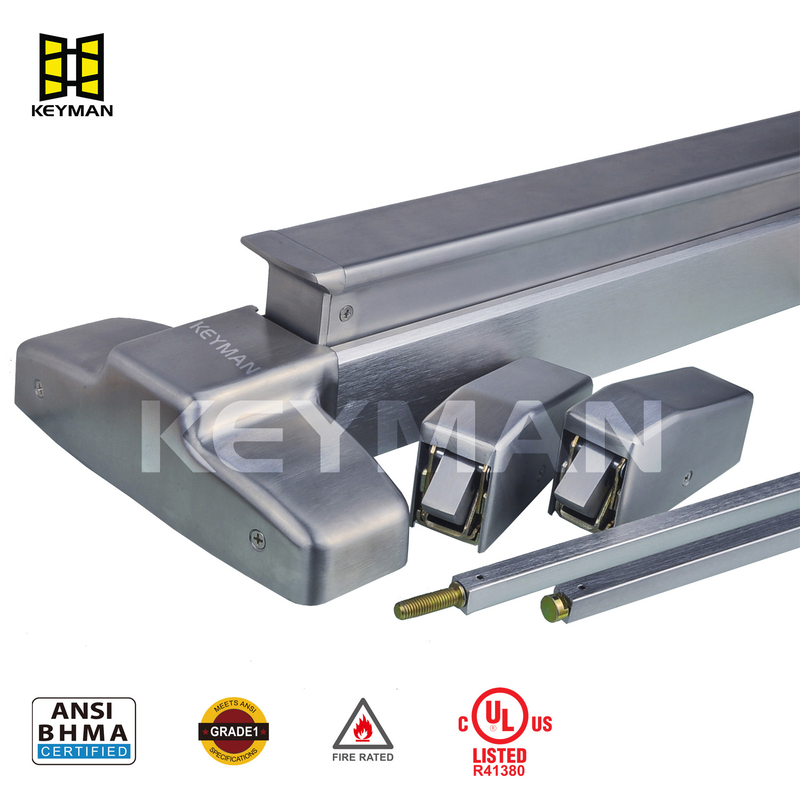

Keyman Aluminum Mortise Vertical Exit Device for High-Risk Facilities X801-B

Product Model：X801-B Mortise Vertical Exit Device
Mortise Exit Device Backset:2-3/4" (70mm)
Center Case:ANSI mortise F31
Depress exit device push pad and retract mortise latchbolt to open door. Auxiliary latch dead latch. Entry by outside trim retract mortise latchbolt.
Surface Mounting Vertical Rods:1/2" Square tubing, Standard rods accommodate 7Ft (2134mm) door.Top rod length is 35" (890mm), Bottom rod length is 31-3/8" (795mm) standard.
Top Latch Bolt:Stainless Steel, Pullman type deadlocking Latch 5/8" (16mm) throw.
Bottom Bolt:Stainless Steel, Pullman type deadlocking Latch 5/8" (16mm) throw.
Top & Bottom Latch Case:4-1/2" x 2-1/8" x 1-1/2" (112mm x 54mm x38mm).

Availability:

Quantity:



Inquire Add to Basket

Model:
QX801-B Mortise Vertical Exit Device

Fire Exit Push Bar Aluminum Panic Hardware UL Listed Exit Device Exit Device Mortise Lock Panic Exit Handle Panic Exit Device Anti Panic Aluminum panic exit hardware Fire-rated Aluminum exit device BHMA Grade 1 aluminum exit device aluminum exit device with dogging feature

Product Description

A mortise vertical exit device is a type of exit hardware commonly used on commercial doors to provide safe egress while maintaining security. Here's a breakdown of its key features and applications:

1. What is a Mortise Vertical Exit Device?

Mortise Body: Installed within a mortise pocket (a recess) in the door edge, making it more secure and aesthetically streamlined compared to surface-mounted devices.
Vertical Rods: Features vertical rods (top and/or bottom) that engage into the door frame’s header and sill, providing additional security by latching at multiple points.
Panic/Egress Function: Designed for quick exit during emergencies—pushing the crossbar or touchpad retracts all latches, allowing immediate door opening.

2. Common Applications

Heavy-Duty & High-Security Doors: Often used in schools, hospitals, office buildings, and industrial facilities.
Fire-Rated Doors: Many models are UL-listed for fire-rated openings.
Outward-Swinging Doors: Ideal for doors that swing outward (common in emergency exits).

3. Types of Mortise Vertical Exit Devices

Rim Exit Device with Mortise Lock: Combines a mortise lock with a surface-mounted exit device.
Full Mortise Vertical Exit Device: Entire mechanism is mortised into the door, including vertical rods.
Top & Bottom Rod Configurations:

Single Vertical Rod (Top Only): Locks at the top.
Double Vertical Rod (Top & Bottom): More secure, preventing door bowing or tampering.
